Myanmar solar energy planning baseline

Solar PV, Inverter and Battery Information & System Design

Why renewable energy matters

Solar energy turns sunlight into electricity that can support everyday life and productive work. Renewable energy also includes wind, hydropower and other sources that are naturally replenished. For Myanmar, where reliable electricity can be difficult to access, solar offers another way to meet local energy needs.

Rooftops and suitable land can produce power close to the homes and businesses that use it. Solar can help schools, clinics, farms and workshops continue essential activities when a system includes suitable backup. Batteries can store some daytime production for use later, within their capacity and operating limits.

Changing fuel prices and uncertainty in global supply chains make a more diverse energy supply valuable. Using renewable electricity can reduce dependence on fuel deliveries and lower emissions during operation. Good results depend on measured energy needs, suitable equipment, careful installation and regular maintenance. Learning these technologies helps communities make informed choices and build practical skills for a cleaner energy future.

For Myanmar youth and skilled workers

This free guide is for Myanmar youth and skilled workers learning or working locally and abroad. Follow the path from solar basics and energy estimation to equipment selection, wiring, protection and planning small to medium projects. Explore the local solar market, compare supplier information and learn what to check before buying or installing equipment.

For households and curious learners

Households and general readers can also learn how solar works, understand energy use and backup limits, and discuss proposals with installers. Learn free in English or Myanmar, with references to industry standards such as IEC for further study. Estimates are starting points; final electrical and structural designs need a site survey and qualified professional review.

Quick Estimate

QUICK ESTIMATE

Adjust the five inputs for an initial array, inverter and battery estimate. Use Detailed sizing for location, equipment, wiring and a bill of materials.

Open detailed sizing tool
PV target5 kW
Critical peak load4 kW

Planning basis: 1,450 kWh/kWp/year, 78% performance ratio, 80% usable LiFePO₄ capacity.

Installed array5.50 kWp10 × 550 W modules
Nominal battery21.7 kWhbefore project-specific reserve
Inverter minimum5.0 kWsingle-phase candidate
Indicative roof area29 m²includes 15% access allowance
Annual PV energy7,975 kWhpreliminary planning estimate
Hybrid mode supports solar self-use, battery backup and grid or generator input.

Solar power basics

How sunlight becomes usable electricity

1

PV cells convert light into direct-current electricity. Rated watts are measured under standard test conditions; real output changes with irradiance, temperature, shade and dirt.

2

The inverter continuously adjusts PV voltage and current to operate near the array's maximum power point.

3

DC becomes synchronized AC for appliances, motors and distribution boards. A hybrid inverter can also charge a battery and coordinate the grid or generator.

4

Loads normally use solar first. Surplus may charge the battery or export where permitted; shortages come from the battery, grid or generator according to control settings.

Daily energy ≈ array kWp × peak-sun-hours × performance ratio
5.5 kWp × 5.0 h × 0.78 ≈ 21.5 kWh/dayIllustrative clear-season day; monthly weather changes the result.

Reference configurations

Nine scalable system classes

Use casePVExample modulesInverterBattery planning rangeElectrical form
3–20 kWpHouses, villas, small home offices
Essential home3.3 kWp6 × 550 W3–5 kW hybrid5–10 kWhSingle phase
Standard home5.5 kWp10 × 550 W5–6 kW hybrid10–15 kWhSingle phase
Large home or shop10.8 kWp18 × 600 W10 kW hybrid15–30 kWhSingle or three phase
20–100 kWpShops, offices, restaurants, clinics
Small business20.4 kWp34 × 600 W20 kW three phase30–60 kWhThree phase preferred
Commercial facility50.4 kWp84 × 600 W50 kW three phase80–150 kWhThree phase
100–500 kWpHotels, schools, warehouses, shopping centres
Medium C&I100.8 kWp168 × 600 W100 kW or 2 × 50 kW160–300 kWhThree phase with protection study
Medium C&I facility250 kWp400 × 625 W2 × 125 kWProject-specific BESS sizingThree phase; protection and interconnection study
500 kWp–1 MW+Factories, industrial plants, large warehouses
Industrial facility500 kWp800 × 625 W4 × 125 kWProject-specific BESS sizingThree phase; protection and interconnection study
Large industrial / campus1,000 kWp (1 MWp)1,600 × 625 W8 × 125 kWProject-specific BESS sizingThree phase; protection and interconnection study

Battery ranges are examples for critical-load backup, not fixed bills of materials. An energy audit must separate essential loads from air-conditioning, water heating, pumps and industrial motors.

Technology selection

Match module size to the structure

400–500 W

Residential roof class

Easier handling, flexible roof layouts and broad compatibility with residential inverters.

540–650 W

Commercial roof class

Fewer modules and connections per kWp, but larger dimensions and higher string current require careful engineering.

700–800 W

Large-format engineered class

Best considered for ground mounts or engineered large roofs. Verify commercial availability, dimensions, wind loading, clamp zones and inverter current limits.

Recommended modern baseline

  • N-type TOPCon or HJT modules with IEC 61215 and IEC 61730 certification
  • MPPT hybrid or grid inverter with local service support and documented battery compatibility
  • LiFePO₄ storage with cell monitoring, BMS, DC isolation and IEC 62619 evidence
  • Remote monitoring, generator integration and export limiting where required

Connection reference

Accessories, wiring and grounding guide

Cable size is determined from current, voltage, installation method, ambient temperature, grouping, voltage drop and fault withstand—not from system kW alone.

CircuitCable / connectionAccessoriesInstallation rule
H1Z2Z2-K / PV1-F copper solar cableMatched PV connectors, UV clips, conduit/tray, labelsKeep +/− together, avoid roof contact and sharp bends; never mix connector brands.
Manufacturer harness or flexible fine-strand copper battery cableCrimp lugs, shrouds, fuse/breaker, DC isolator, busbarUse short, protected, polarity-marked conductors; parallel paths must be equal length.
Copper XLPE/PVC cable with the required phase, neutral and PE coresMCB/MCCB, isolator, RCD/RCBO, SPD, glandSize for continuous current, derating, voltage drop and short-circuit withstand.
Specified CAN/RS485 cable, shielded twisted pair or EthernetCT, meter, terminators, dry-contact relay, data loggerSeparate signal cable from power; follow the manufacturer pinout and shield instructions.
Green/yellow copper PE and equipotential bonding conductorEarth bar, tested lugs, bonding washers, electrode, inspection pitBond exposed metal and keep SPD earth leads short; test continuity and earth resistance.

Cables & Cable Size Selection

Solar systems use four cable paths: PV string DC, battery DC, inverter AC and PE / bonding. Choose the correct cable type and size for each circuit using current, voltage, route length and installation conditions. System kWp alone does not determine cable size.

Four solar cable paths: PV String DC, Battery DC, Inverter AC and PE / Bonding
CircuitSelection checks / စစ်ဆေးရန်
PV String DC CablePV-rated insulation, voltage and temperature rating; matched connectors and protected routing.
Battery DC CableManufacturer cable requirements, peak current, total positive and negative cable length, voltage drop and fuse coordination.
Inverter AC CablePhase arrangement, continuous current, derating, voltage drop, terminal compatibility and fault withstand.
PE / Bonding CableApplicable design rules and equipment requirements for protective and bonding conductors.

Verify corrected current-carrying capacity, voltage drop and protection before final selection. Record the chosen cross-section in mm² in project item details.

Cable reference · Victron Wiring Unlimited

Cable sizing training guide

Worked values compare voltage drop only; they are not approved installation sizes. Complete ampacity, derating, fault, protection and terminal checks before final selection.

Cable sizing workflow
Cable sizing workflow
Training illustration — view with the explanations below.
PV, battery, AC and PE circuits
PV, battery, AC and PE circuits
Training illustration — view with the explanations below.
Voltage-drop comparison examples
Voltage-drop comparison examples
Training illustration — view with the explanations below.
Read the full guide, calculations and commissioning checklist

Why cable sizing is a circuit-by-circuit task

A cable must carry the circuit’s design current under the actual installation conditions, keep voltage drop within the project limit, withstand the expected fault until protection operates, and connect safely to the equipment terminals. A cable that passes one check can still fail another.

That is why a 20 kWp, 100 kWp or 1 MWp PV label cannot directly specify a conductor size. A PV string, a low-voltage battery lead, a three-phase inverter feeder and a protective-earth conductor do different jobs. Each needs its own calculation and cable schedule.

Illustrated PV DC, battery DC, inverter AC, monitoring and protective earthing circuits

1. Read the cable size correctly

The value in mm² is the conductor’s nominal cross-sectional area, not the cable’s outside diameter. The same nominal area can be supplied in different conductor materials, strand classes, insulation systems, voltage ratings and temperature ratings. IEC 60228 defines nominal conductor areas and conductor resistance; the product datasheet still determines the properties of the exact cable selected. IEC 60228:2023

Common metric sizes include 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185 and 240 mm². This is a list of familiar nominal sizes—not a current-capacity table. Do not infer that a given size is suitable for a particular current without the cable type, installation method, ambient temperature, grouping and protection design.

2. Separate the four cable circuits

CircuitWhat it doesMain sizing checks
PV string DCConnects a module string to an inverter MPPT or combiner.Maximum PV voltage, string design current, cable certification, UV/weather exposure, route length, connector match, ampacity and DC voltage drop.
Battery DCConnects a battery or BESS to its inverter or power-conversion system.Minimum operating battery voltage, maximum continuous and surge current, charge/discharge direction, total positive-plus-negative length, voltage drop, fuse/disconnect coordination and BMS limits.
Inverter ACConnects inverter output to a switchboard, loads, grid or generator interface.Single/three-phase arrangement, nameplate output current, power factor, harmonics, route and grouping, voltage drop or voltage rise, terminal limits and fault protection.
PE / bondingProvides protective continuity between exposed conductive parts and the designed earthing system.Fault current and clearing time, protective device, earthing arrangement, mechanical strength, corrosion, connection method and applicable protective-conductor rules.

PV array wiring, switching and earthing have PV-specific design requirements. The IEC catalogue lists IEC 62548-1:2023+AMD1:2025 for PV-array design and IEC 60364-7-712:2025 for PV electrical installations, including relevant storage provisions. General wiring systems and protective conductors are addressed by IEC 60364-5-52 and IEC 60364-5-54. These standards are references for qualified designers; project teams must confirm which editions and local rules apply. IEC 62548-1 · IEC 60364-7-712 · IEC 60364-5-52 · IEC 60364-5-54

3. Use a repeatable sizing sequence

  1. Define one circuit at a time. Mark the source, destination, voltage, operating modes and protective devices. Give each string, battery branch and AC feeder its own line in the schedule.
  2. Measure the actual route. Measure the cable path, including rises, drops, turns and service allowance. For a two-wire DC circuit, record both the positive and negative conductors: the electrical loop is longer than the one-way route. Note whether the route is in free air, on a tray, in conduit, within a hot roof space, buried in soil or grouped with other loaded cables.
  3. Find the design current and voltage. Use module, inverter, battery and BMS documentation plus the applicable design rules. For PV, a string and a parallel-string trunk do not carry the same current. For a battery inverter, use the lowest operating DC voltage and account for conversion losses. For an AC inverter, use its rated maximum continuous output current and the actual phase arrangement.
  4. Choose a cable product for the environment. Check conductor material and class, insulation, voltage rating, conductor temperature rating, UV and water exposure, chemicals, abrasion, rodents, fire requirements, bending radius and terminal compatibility. On the PV DC side, select a cable designed and certified for PV service, not an ordinary building wire chosen only because its cross-section looks sufficient. IEC 62930 covers specified single-core cross-linked cables used on the DC side of PV systems up to 1.5 kV DC. IEC 62930:2017
  5. Check current-carrying capacity after derating. Start with the ampacity data for the exact cable and its installation method. Apply the correction factors required for ambient temperature, grouping, enclosure or conduit, roof heat, soil conditions and other relevant influences. The resulting permitted current is often denoted Iz. Where an overcurrent device is used, coordinate the design current, device and corrected cable capacity under the applicable rules; a common check is Ib ≤ In ≤ Iz. Confirm the device’s voltage and interrupting ratings separately.
  6. Calculate voltage drop and, on AC PV output, voltage rise. Use the cable’s resistance and reactance at the expected operating temperature, not just a cold-conductor value. Check the full path against the project’s permitted limit. There is no single percentage that is correct for every circuit, equipment manufacturer or jurisdiction.
  7. Verify fault withstand and disconnection. Confirm that the conductor can withstand the fault energy until the protective device clears it, and check fault duty, clearing time and selectivity in grid, inverter, battery and generator modes. Inverters may limit fault current, so do not assume grid-mode protection behavior will also apply in backup mode. A common adiabatic check is I²t ≤ k²S²; the correct fault current, clearing time and material/insulation factor must come from design data and governing rules.
  8. Check the connection, then document it. Confirm terminal range, lug or ferrule type, crimp tooling, torque value, bend radius, support and labels against manufacturer instructions. Keep BMS, metering and communication wiring as separate control circuits, routed and shielded as the equipment instructions require. Record the cable ID, type, size, route, design current, derating assumptions, voltage-drop result, protective device and test results.

4. Understand the calculation inputs

Current starting points

Battery DC: for an inverter delivering AC power, a first estimate is I ≈ PAC / (VDC,min × η). Confirm against maximum battery and inverter currents and the BMS limits.

AC current: single phase I ≈ P / (V × PF × η); balanced three phase I ≈ P / (√3 × VL-L × PF × η). If P is already the inverter’s AC output, omit η. Check the inverter’s rated maximum output current as well.

PV string: determine design current from module data, parallel-string count, inverter inputs and applicable PV rules. Do not use module wattage alone.

Voltage-drop starting points

Two-wire DC: ΔV ≈ I × (2L) × R / 1000, when R is in Ω/km and L is the one-way length in metres.

Single-phase AC: ΔV ≈ 2 × I × L × (R cosφ + X sinφ). Balanced three-phase AC: ΔV ≈ √3 × I × L × (R cosφ + X sinφ), with one-way L in km and R/X in Ω/km.

Use the exact conductor resistance and impedance tables for the selected cable. Include connections and operating temperature where required. Manufacturer battery-wiring guidance also treats the positive and negative cable lengths together when calculating DC drop. Victron, Wiring Unlimited

5. Worked examples: compare sizes, then complete the checks

The comparisons below use example copper-conductor resistance values at 20°C from a cable product data table. They isolate the resistance-based voltage-drop effect so trainees can see how size and length interact. The values are not current ratings. Actual PV cable data, conductor operating temperature, reactance, connector/contact resistance and installation corrections can change the result. Example conductor resistance data

Example A · PV string DC

Assume a 13 A string design current, 500 V operating string voltage, and a 30 m one-way route. The positive and negative conductors create a 60 m loop. With ΔV = I × 2L × R / 1000:

Copper areaR at 20°CCalculated dropDrop as % of 500 V
4 mm²4.61 Ω/km3.60 V0.72%
6 mm²3.08 Ω/km2.40 V0.48%
10 mm²1.83 Ω/km1.43 V0.29%

This comparison does not decide which cable to install. Check the selected PV cable’s current capacity under rooftop temperature and grouping, maximum DC voltage, connector compatibility, mechanical protection and the actual voltage-drop criterion.

Example B · Battery DC

Assume a 5 kW AC inverter, 44 V minimum battery voltage and 92% conversion efficiency. The estimated battery current is 5,000 / (44 × 0.92) ≈ 124 A. With a 2 m one-way route, the positive-plus-negative loop is 4 m.

Copper areaR at 20°CCalculated dropDrop as % of 44 V
25 mm²0.727 Ω/km0.36 V0.82%
35 mm²0.524 Ω/km0.26 V0.59%
50 mm²0.387 Ω/km0.19 V0.44%

At low DC voltage, inverter power can produce very high battery current. Check the manufacturer’s maximum battery current, battery BMS limit, DC-rated fuse or breaker, short-circuit rating, lug and terminal range, and the cable’s corrected ampacity. Keep the battery lead length short where the equipment design permits.

Example C · Three-phase inverter AC

Assume a 20 kW inverter on a 400 V three-phase system at power factor 0.98. Its calculated current is about 29.5 A. For a 25 m one-way cable route, a simplified resistance-only estimate gives:

Copper areaR at 20°CApprox. drop*Drop as % of 400 V
4 mm²4.61 Ω/km5.76 V1.44%
6 mm²3.08 Ω/km3.85 V0.96%
10 mm²1.83 Ω/km2.29 V0.57%

*This simplified comparison includes R and power factor but omits cable reactance and temperature rise. Check the full three-phase impedance calculation, corrected ampacity, inverter current, voltage rise during export, harmonics, switchboard and protection before choosing a size.

The examples above compare voltage drop in load conductors. PE sizing needs separate fault and protection checks: see the guide below.

6. Size PE and bonding conductors from the protection design

What PE means

PE means Protective Earth (ကာကွယ်ရေးမြေချိတ်ကြိုး). It links exposed conductive parts to the installation’s PE bar, providing a fault path for protective disconnection. It normally carries no load current. Distinguish it from Neutral, PV negative and the earthing conductor to an earth electrode.

A common copper PE sizing guide

Phase conductor SExample copper PE size
S ≤ 16 mm²Same size as phase conductor
16 < S ≤ 35 mm²16 mm²
S > 35 mm²Half the phase conductor size

Examples: 10 mm² phase → 10 mm² PE; 25 mm² phase → 16 mm² PE; 50 mm² phase → 25 mm² PE. This simplified method assumes the same conductor material and matching design conditions. A separately run copper PE has minimum sizes of 2.5 mm² with mechanical protection or 4 mm² without it; fault and disconnection checks may require more. Schneider Electric: PE sizing guide

Solar equipment and fault checks

Verify the required cross-section using the applicable table or fault calculation, including clearing time, material and insulation. IEC 60364-5-54 addresses protective conductors and bonding; IEC 60364-7-712 addresses PV installations. Check the exact equipment instructions for frames, rails, inverter chassis, battery cabinet and switchboard. Do not assume one size suits all parts or bond PV negative or Neutral to PE unless the approved design and equipment instructions require it.

IEC 60364-5-54 · Example model-specific chassis earthing instructions

Protective earth (PE) is not a normal load conductor. Its job is to provide a reliable fault-current path and support the required protective disconnection. Select PE and bonding conductors using the applicable installation rules, protective-device characteristics, fault current and clearing time, mechanical protection and corrosion conditions. Do not copy the PV positive cable size, assume every frame bond is 6 mm², or treat an earth electrode as a substitute for the required PE path. IEC 60364-5-54 covers earthing arrangements and protective conductors, including protective bonding conductors. IEC 60364-5-54

Bond exposed conductive parts as the design requires: module frames, mounting rails, inverter enclosure, battery cabinet and switchboard enclosure. Use approved hardware, compatible metals and inspectable connections. Verify continuity across joints and document the main earthing terminal and test results.

7. Conditions that often increase the required size

  • Long route: resistance and voltage drop rise with conductor length. Battery circuits are especially sensitive because their operating voltage is low.
  • Hot roof or conduit: conductor temperature rises and the allowable ampacity falls. Rooftop cable may experience a hotter environment than nearby air temperature suggests.
  • Grouped cables: cables that heat one another may need ampacity derating. A drawing should show how many loaded conductors share each conduit or tray section.
  • High fault level or slow clearing: the conductor’s short-circuit withstand and the protective device’s operation can control selection even when voltage drop is small.
  • Inverter export: AC voltage rise can limit PV output or cause disconnection. The route, conductor impedance and point of connection matter.
  • Terminal limits: a cable that is electrically adequate may not fit the inverter or breaker terminals, bend radius, lug or connector. Follow the exact equipment manual.
  • Weather and mechanical exposure: sunlight, rain, flooding, corrosion, vibration, sharp edges, pests and maintenance access affect cable type, routing and protection.

For larger commercial systems, the design may use parallel cable runs. Use them only where the governing rules and equipment allow it. The designer must check current sharing, matching conductor material and area, route and length, terminations, phase or polarity arrangement, protection and any magnetic-heating effects. Adding a second cable is not automatically equivalent to one cable of twice the area.

8. Avoid these common mistakes

  • Choosing a cable from PV kWp alone.
  • Using one-way length for a two-wire DC voltage-drop calculation.
  • Reading an ampacity table for open air when the cable is bundled or enclosed.
  • Assuming a familiar size has the same current rating in every cable type.
  • Applying one voltage-drop percentage to every circuit without checking the project requirement.
  • Ignoring battery minimum voltage, BMS current and DC fuse interrupt rating.
  • Using building wire in an exposed PV route or mixing connector families.
  • Skipping PE continuity, fault clearing and documentation checks.

9. Cable schedule and commissioning checklist

For every cable run, record: circuit ID; from/to; AC or DC; polarity/phase; cable product and standard; conductor material and mm²; number of parallel runs; actual route length and method; design current and voltage; ambient/grouping correction factors; corrected ampacity; voltage-drop result; protective device and settings; fault withstand; terminal and torque references; label; and test status.

  • Inspect cable markings, rating, route support, bend radius, separation and mechanical protection.
  • Verify polarity and phase sequence, protective-conductor continuity, insulation results and required protective-device operation using the approved commissioning procedure.
  • Check lugs, ferrules and PV connectors are the correct type and are installed with the specified tool and torque.
  • Under controlled operation, compare current and voltage readings with the design assumptions; investigate unexpected drop or heating.
  • Hand over the cable schedule, as-built routes, protection settings, test records, equipment manuals and maintenance instructions.

Safety boundary: PV conductors can remain energized in daylight, and battery systems can deliver very high fault current. Isolation, proving dead, arc and shock protection, and energized testing must follow the equipment instructions and applicable safe-work procedures. Do not unplug PV connectors under load unless the connector is specifically rated for that operation. Use qualified electrical personnel for design, installation and commissioning.

Key lesson

Choose a cable only after it passes all required checks: current capacity after derating, voltage drop or rise, fault withstand and protection, voltage and temperature rating, environment, terminals and installation rules. The correct answer may be larger than the voltage-drop calculation alone suggests—and it must be recorded so the system can be inspected and maintained.

Mounting Accessories

Mounting accessories secure the panels and support safe cable routing and bonding. Match rails, clamps, roof attachments and foundations to the module frame, roof or ground structure and site conditions. Plan the complete assembly before ordering.

Solar mounting accessories: rails, clamps, roof attachments, bonding hardware, cable supports and foundations
Accessory / ပစ္စည်းSelection checks / စစ်ဆေးရန်
Rails, splices & end capsCompatible profiles, approved spans and expansion requirements / ကိုက်ညီသော rail၊ span နှင့် expansion
Mid & end clampsModule frame thickness, permitted clamp zones and specified torque / Frame အထူ၊ clamp နေရာနှင့် torque
Roof hooks, feet & seam clampsRoof-specific attachments and flashing or weather seals / အမိုးအလိုက် ချိတ်ဆက်မှုနှင့် ရေမဝင်စေရန် flashing
Bonding hardware & lugsApproved bonding components and equipment compatibility / ခွင့်ပြုထားသော bonding ပစ္စည်းနှင့် ကိုက်ညီမှု
Cable clips & conduit supportsOutdoor suitability, cable protection and secure routing / ပြင်ပသုံးနိုင်မှု၊ ကြိုးကာကွယ်မှုနှင့် ခိုင်ခံ့သောလမ်းကြောင်း
Foundations / ballastStructural design, wind loading, drainage and service access / Structure၊ လေဒဏ်၊ ရေစီးဆင်းမှုနှင့် ထိန်းသိမ်းဝင်ရောက်နိုင်မှု
Mounting reference · IronRidge installation resources

Current manufacturer portfolios

International solar panel, inverter and battery brands

Solar panels

Solar panels: essential electrical, temperature, installation and certification parameters
BrandCurrent familyListed powerBest-fit planning use
LONGiHi-MO X6 MaxGuardian ↗605–630 WLarge commercial roof
LONGiHi-MO X10 ↗up to 670 WEngineered C&I / utility
TrinasolarVertex S+ ↗450–510 WResidential roof
TrinasolarVertex N ↗620–725 WC&I and ground mount
JinkoSolarTiger Neo 3.0 DG ↗450–495 W classResidential / small roof
JinkoSolarTiger Neo 3.0 utility ↗650–670 WLarge C&I / ground mount
JA SolarDeepBlue 4.0 Pro ↗Model-specific datasheetResidential, commercial and ground-mounted arrays
TW SolarModule portfolio ↗Model-specific datasheetRooftop and ground-mounted arrays
QcellsQ.TRON ↗Model-specific datasheetResidential and commercial roofs
AstronergyModule portfolio ↗Model-specific datasheetCommercial roofs and ground-mounted arrays
Inverters — multiple international brands

Inverters: eight essential parameters including AC output, PV inputs, battery compatibility, operating modes and service
BrandSeriesPower bandArchitecturePlanning use
GrowattMIN TL-X / XH ↗2.5–10 kWSingle-phase grid / battery-readyHomes and shops
GrowattSPM / SPH-HU ↗2.5–10 kWSingle-phase hybrid, generator-input modelsBackup-focused homes
GrowattMOD / MID ↗3–60 kWThree-phase grid / battery-ready modelsShops and C&I roofs
GrowattWIT-HU / XHU ↗4–125 kWThree-phase hybrid with compatible HV or LV battery by modelCommercial and medium C&I
GrowattSPF ES / HVM ↗2–12 kWSingle-phase off-gridWeak-grid and off-grid sites
DeyeHybrid inverter portfolio ↗Model-specificLV / HV hybrid models; verify phase and suffixHomes, shops and commercial backup
SolisS6 hybrid / grid-tied portfolio ↗Model-specificGrid-tied and hybrid families; LV / HV by modelResidential and commercial systems
GoodWeET LV ↗5–20 kWThree-phase hybrid with low-voltage batteryResidential and small commercial backup
HuaweiFusionSolar inverter portfolio ↗Model-specificGrid-tied / storage-capable models; approved ESS requiredResidential and commercial roofs
SungrowString / hybrid portfolio ↗Model-specificGrid-tied and hybrid families; model-specific batteriesResidential, C&I and larger projects
MUSTPV1800 / inverter portfolio ↗Model-specificOff-grid and storage models; verify grid operationBackup and off-grid sites
SigenergySigenStor ↗Model-specificIntegrated inverter and modular storage systemResidential and commercial storage
Batteries and energy storage

Battery and energy storage parameters: capacity, usable energy, power, runtime, compatibility and safety
BrandFamily / manufacturer linkEnergy and voltageSelection checks
GrowattAPX / ARK ↗Model / module-count dependentModular storage; match the approved inverter series
DeyeRW / SE families ↗Model / module-count dependentLV storage options; verify BMS and parallel limits
DynessDL5.0C / storage portfolio ↗Model / module-count dependentCheck the exact inverter compatibility list
MUSTLithium battery portfolio ↗Model / module-count dependentCheck nominal voltage, continuous current and BMS
SigenergySigenStor battery ↗Model / module-count dependentIntegrated modular ESS; use the matching controller
GoodWeLynx battery portfolio ↗Model / module-count dependentSelect the battery approved for the inverter family
HuaweiLUNA2000 ↗Model / module-count dependentUse the compatible FusionSolar storage configuration
SungrowResidential storage portfolio ↗Model / module-count dependentUse the model-specific inverter / battery combination

These are manufacturer-listed product families, not a statement of Myanmar warehouse stock. Obtain the exact suffix datasheet, serial traceability, authorized-channel evidence and inverter–battery compatibility letter before purchase.

Myanmar market references: the linked financing and supplier lists show local brand presence. Product families are examples; confirm the exact available model, warranty support and inverter–battery compatibility before ordering.

Battery-first design

Choosing the right battery

Choose LiFePO₄ for most solar storage systems. Consider flooded lead-acid batteries when the project’s budget, operating needs and maintenance arrangements justify them.

Battery energy (kWh), battery power (kW), inverter voltage and the BMS protocol must all match. Brand name alone does not prove compatibility.

Tap any block for an illustrated explanation. This is a functional overview; power and communication use separate paths.

SPECIAL CASE

  • Lower initial cost can suit basic off-grid or essential-load systems
  • Requires ventilation, upright acid-resistant containment and safe service access
  • Needs electrolyte-level checks, correct charging and corrosion control; never install in living or escape areas

Balance of system

DC, AC, earthing and protection accessories

Protection devices must be selected from voltage, current, fault level, earthing arrangement and cable calculations—not copied from a generic bill of materials.

Tap a block for its illustrated explanation. DC becomes AC inside the inverter. This is a functional overview, with separate PV and battery circuits.

PV cable and matched connectors; coordinated string and battery protection, DC isolation, PV-rated surge protection, labels and cable containment. Select a device below for its role and checks.

Coordinated MCB/MCCB, AC isolation, AC surge protection and the required RCD/RCBO type; voltage/current monitoring, approved transfer arrangements and metering as the design requires.

PE cable, bonding hardware, the main earth terminal and electrodes form part of the protective system. Coordinate the lightning design and SPDs, then verify continuity, electrode performance and protection.

Representative manufacturers to evaluate include ABB, Schneider Electric, CHINT, DEHN and Phoenix Contact. Select only model-specific DC/AC ratings and request coordination evidence; this is not an endorsement or stock confirmation.

Monthly solar resource

Myanmar solar radiation and availability map

Select a month to compare long-term average daily global horizontal irradiation (GHI) at 25 representative cities. The map shows Myanmar's 14 state and region boundaries.

25-city range5.27–6.65kWh/m²/day
3.07.0 kWh/m²/day

Yangon

Monthly average daily GHI · kWh/m²/day

Selected monthkWh/m²/day
Annual irradiationkWh/m²/year
Strongest month
Monthly values

Long-term averages, not a weather forecast or PV electricity output. Click a city on the map or list to compare its seasonal pattern.

Compare 25 cities · selected month

Myanmar pattern

February–April is generally strongest. Monsoon cloud lowers GHI most noticeably from June–August, especially in coastal and southern areas; central Myanmar remains comparatively stronger.

Daily PV energy ≈ installed kWp × monthly GHI × performance ratio

For example, 5 kWp × 4.0 × 0.78 ≈ 15.6 kWh/day. A more accurate estimate also needs panel tilt, orientation, shading, temperature and system losses.

These are 2001–2020 monthly averages, so they represent typical seasons rather than this year’s weather.

Monthly GHI matrix — kWh/m²/day

Solar source: NASA POWER 2001–2020 climatology, ALLSKY_SFC_SW_DWN. Annual total is calculated as each monthly average daily GHI multiplied by the number of days in that month and summed for a 365-day year. Magway and Chauk share the same NASA climatology grid cell. Boundary source: geoBoundaries gbOpen, Myanmar ADM1 (14 units, 2019), CC BY 4.0. Use site coordinates, shading analysis and a bankable energy model for investment decisions.

COMMERCIAL

Solar products and services

Advertising opportunities for solar businesses, alongside a free supplier directory.

Paid placement opportunity

Products & Accessories

Promote panels, inverters, batteries, protection devices and installation accessories.

No sponsored listings yet. Advertising enquiries and booking will be available here when launched.

Paid placement opportunity

System Integrators

Featured business profiles for system design, EPC, commissioning and maintenance services.

No sponsored listings yet. Advertising enquiries and booking will be available here when launched.

Paid placement opportunity

Installers

Promote installation services by service area and residential or commercial expertise.

No sponsored listings yet. Advertising enquiries and booking will be available here when launched.

Paid listings will be labelled Sponsored. Payment does not imply technical endorsement. Basic directory listings remain free.

Free Directory

Myanmar solar suppliers and service providers, listed alphabetically by company name.

Reference examples only. These are not paid advertisements or commercial directory listings.

Procurement map

Sample suppliers and manufacturers

Myanmar suppliers and EPC firms

South Asia channels

This directory is a procurement starting point, not an endorsement or proof of current stock. Confirm authorized status, model-specific certificates, serial traceability, warranty owner, spare parts, commissioning support and references before purchase.

Engineering and safety

Minimum design and commissioning controls

  1. Survey and load auditMeasure interval demand, motor surge, roof condition, shade, cable routes, earthing and generator behavior.
  2. Structural and weather designCheck wind uplift, corrosion, waterproofing, drainage, maintenance access and monsoon exposure.
  3. Electrical studyVerify Voc at minimum temperature, MPPT current, cable ampacity, voltage drop, fault level, discrimination and phase balance.
  4. Protection and isolationUse coordinated DC and AC isolators, fuses or breakers, Type 2 SPDs, RCD protection where applicable, labels and emergency shutdown.
  5. Battery room controlsProvide restricted access, non-combustible mounting, ventilation per manufacturer, temperature control, clearances and fire response planning.
  6. Testing and handoverRecord polarity, insulation resistance, continuity, earth resistance, inverter settings, BMS communications, backup transfer and as-built drawings.
Reference standardsIEC 61215, IEC 61730, IEC 62548-1, IEC 60364-7-712, IEC 62109, IEC 62619, IEC 62930, IEC 61643 and IEC 62305. Apply current Myanmar authority, utility and fire requirements where they are stricter or project-specific.

Sources and update notes

Technical and supplier information checked 15 September 2026. Use manufacturer datasheets for the exact model purchased.

PV String DC

PV String DC illustrated guide
Click the image to open at full size.

Image ratings and connections are illustrative. Use the approved design and exact equipment manuals for the actual installation.

From modules to the inverter

PV string wiring carries DC whenever the modules are illuminated. Good routing protects the insulation and keeps the positive and negative paths close together. Plan supports, protected roof crossings and accessible isolation before choosing the cable.

Cable and connector selection

Use PV-rated cable suitable for the system voltage, temperature, UV exposure and installation method. Verify cold-weather string open-circuit voltage against equipment limits. Mate only manufacturer-approved connector combinations; a similar shape is not evidence of compatibility. Use the specified contacts, crimp tooling and assembly procedure.

Accessories and handover

Provide durable clips, glands, conduit or tray and string labels. Keep connectors clear of standing water and mechanical strain. String fuses depend on the reverse-current assessment; use PV DC-rated isolation and surge protection where the design requires them. Record polarity, string identification and electrical test results before connection. Never unplug PV connectors under load.

Manufacturer technical reference

PV String DC illustrated guide
မူရင်းအရွယ်အစားဖြင့် ကြည့်ရန် ပုံကိုနှိပ်ပါ။

ပုံပါ rating နှင့် ချိတ်ဆက်ပုံများသည် ဥပမာသာဖြစ်သည်။ အမှန်တကယ်ချိတ်ဆက်မှုကို approved design နှင့် သက်ဆိုင်ရာ equipment manual အရ ဆောင်ရွက်ပါ။

ဆိုလာပြားမှ အင်ဗာတာသို့

ဆိုလာပြားများ အလင်းရရှိနေချိန်တွင် PV string ကြိုးများ၌ DC ဗို့အားရှိနိုင်သည်။ အပေါင်းနှင့် အနုတ်ကြိုးကို နီးကပ်စွာ သွယ်တန်းပြီး လျှပ်ကာကို ကာကွယ်ပါ။ ကြိုးရွေးချယ်မီ ထောက်ကူပစ္စည်း၊ အမိုးဖြတ်သန်းရာ ကာကွယ်မှုနှင့် ခွဲထုတ်ခလုတ်နေရာကို စီစဉ်ပါ။

ကြိုးနှင့် connector ရွေးချယ်ခြင်း

စနစ်ဗို့အား၊ အပူချိန်၊ UV နှင့် တပ်ဆင်ပုံကို ခံနိုင်သော PV ကြိုးကို သုံးပါ။ အေးသောရာသီ string open-circuit voltage ကို ပစ္စည်းကန့်သတ်ချက်နှင့် စစ်ပါ။ ထုတ်လုပ်သူခွင့်ပြု connector အတွဲကိုသာ သုံးပြီး သတ်မှတ် contact၊ crimp ကိရိယာနှင့် တပ်ဆင်နည်းကို လိုက်နာပါ။ ပုံသဏ္ဌာန်တူရုံဖြင့် ကိုက်ညီသည်ဟု မယူဆရပါ။

အပိုပစ္စည်းနှင့် လွှဲပြောင်းစစ်ဆေးမှု

ခိုင်ခံ့သော clip၊ gland၊ ပိုက် သို့မဟုတ် tray နှင့် string label များ တပ်ဆင်ပါ။ Connector ကို ရေတင်နေရာနှင့် ဆွဲအားမှ ကာကွယ်ပါ။ String fuse လိုအပ်မှုကို reverse-current တွက်ချက်မှုဖြင့် ဆုံးဖြတ်ပါ။ ဒီဇိုင်းအရ PV DC isolator နှင့် SPD သုံးပါ။ ချိတ်ဆက်မီ polarity၊ string ID နှင့် စမ်းသပ်ရလဒ်ကို မှတ်တမ်းတင်ပါ။ ဝန်လျှပ်စီးစီးနေစဉ် connector ကို မဖြုတ်ပါနှင့်။

ထုတ်လုပ်သူ၏ နည်းပညာကိုးကားချက်

Battery DC

Battery DC illustrated guide
Click the image to open at full size.

Image ratings and connections are illustrative. Use the approved design and exact equipment manuals for the actual installation.

A short path with high current

Battery wiring links stored energy to the inverter. Even a low-voltage battery can deliver substantial fault current, so cable protection and covered terminals matter as much as normal load capacity. Start with the approved battery and inverter combination and its installation manuals.

Build the power circuit

Use the specified harness or suitable flexible copper cable. Select cross-section for continuous and surge current, temperature, grouping and voltage drop. Fit matched lugs with the correct crimp and terminal torque. Choose DC protection with adequate voltage and interrupt ratings, located according to the battery design. A BMS does not remove the need for specified external protection.

Balance and verify

For approved parallel batteries, follow the manufacturer’s busbar and equal-resistance connection layout. Protect cables from abrasion and cover live busbars. Bond cabinets to PE; do not treat DC negative as an earth bar or add a negative-to-earth link without design approval. Check polarity, protection, torque records and BMS communication before the prescribed startup sequence.

Manufacturer technical reference

Battery DC illustrated guide
မူရင်းအရွယ်အစားဖြင့် ကြည့်ရန် ပုံကိုနှိပ်ပါ။

ပုံပါ rating နှင့် ချိတ်ဆက်ပုံများသည် ဥပမာသာဖြစ်သည်။ အမှန်တကယ်ချိတ်ဆက်မှုကို approved design နှင့် သက်ဆိုင်ရာ equipment manual အရ ဆောင်ရွက်ပါ။

လျှပ်စီးမြင့်သော လမ်းကြောင်းတို

ဘက်ထရီကြိုးသည် သိုလှောင်စွမ်းအင်ကို အင်ဗာတာသို့ ပို့သည်။ ဗို့အားနိမ့်ဘက်ထရီပင် fault current မြင့်နိုင်သဖြင့် ကြိုးကာကွယ်မှုနှင့် terminal အဖုံးများသည် ဝန်ခံနိုင်မှုကဲ့သို့ အရေးကြီးသည်။ ခွင့်ပြုထားသော ဘက်ထရီ–အင်ဗာတာအတွဲနှင့် manual ကို အခြေခံပါ။

ဓာတ်အားဆားကစ် ပြင်ဆင်ခြင်း

သတ်မှတ် harness သို့မဟုတ် သင့်လျော်သော ပျော့ပြောင်းကြေးနီကြိုးကို သုံးပါ။ ဆက်တိုက်နှင့် ခဏတာလျှပ်စီး၊ အပူချိန်၊ ကြိုးစုဖွဲ့မှုနှင့် ဗို့အားကျဆင်းမှုအရ အရွယ်ရွေးပါ။ ကိုက်ညီ lug၊ crimp နှင့် torque ကို သုံးပါ။ ဗို့အားနှင့် fault ဖြတ်တောက်နိုင်စွမ်း လုံလောက်သော DC protection ကို ဒီဇိုင်းအရ တပ်ဆင်ပါ။ BMS ရှိရုံဖြင့် သတ်မှတ်ပြင်ပကာကွယ်မှုကို မဖယ်ရှားရပါ။

ညီမျှမှုနှင့် စစ်ဆေးခြင်း

ခွင့်ပြု parallel ဘက်ထရီများအတွက် ထုတ်လုပ်သူ၏ busbar နှင့် ခုခံမှုညီမျှသော ချိတ်ဆက်ပုံကို လိုက်နာပါ။ ကြိုးပွန်းစားမှုကို ကာကွယ်ပြီး live busbar ကို ဖုံးပါ။ ဗီရိုကို PE နှင့် bond လုပ်ပါ။ DC အနုတ်ကို earth bar အဖြစ် မသုံးဘဲ ဒီဇိုင်းခွင့်ပြုချက်မရှိလျှင် earth နှင့် မချိတ်ပါနှင့်။ စတင်မောင်းနှင်မီ polarity၊ protection၊ torque မှတ်တမ်းနှင့် BMS ဆက်သွယ်မှုကို စစ်ပါ။

ထုတ်လုပ်သူ၏ နည်းပညာကိုးကားချက်

Inverter AC

Inverter AC illustrated guide
Click the image to open at full size.

Image ratings and connections are illustrative. Use the approved design and exact equipment manuals for the actual installation.

Identify every AC port

Grid input, generator input and backup output can have different duties. Trace each port to its intended board and identify essential loads separately. A neat cable route is useful only when source transfer and protection also match the inverter design.

Coordinate cable and protection

Size phase, neutral and PE conductors for the installation conditions. Verify current capacity, voltage drop and short-circuit withstand. Coordinate breakers with the cable and available fault current; inverter backup can have a different fault response from the grid. Select RCD type and location from the exact inverter instructions, and select SPDs for the supply and lightning design.

Inspect every source mode

Use suitable glands, strain relief, isolation and circuit labels. Keep PE continuous and keep downstream RCD neutrals separate. Record polarity, phase sequence where applicable, protective-conductor continuity and protection tests. Verify transfer and neutral–earth behavior in grid, generator and island modes before handover.

Manufacturer technical reference

Inverter AC illustrated guide
မူရင်းအရွယ်အစားဖြင့် ကြည့်ရန် ပုံကိုနှိပ်ပါ။

ပုံပါ rating နှင့် ချိတ်ဆက်ပုံများသည် ဥပမာသာဖြစ်သည်။ အမှန်တကယ်ချိတ်ဆက်မှုကို approved design နှင့် သက်ဆိုင်ရာ equipment manual အရ ဆောင်ရွက်ပါ။

AC port တစ်ခုချင်း ခွဲခြားခြင်း

Grid input၊ generator input နှင့် backup output တို့၏ တာဝန် မတူနိုင်ပါ။ Port တစ်ခုစီမှ သက်ဆိုင်ရာဘုတ်သို့ လမ်းကြောင်းသတ်မှတ်ပြီး essential load ကို ခွဲခြားပါ။ ကြိုးသွယ်ပုံ သပ်ရပ်မှုနှင့်အတူ source transfer နှင့် protection သည် အင်ဗာတာဒီဇိုင်းနှင့် ကိုက်ညီရမည်။

ကြိုးနှင့် ကာကွယ်မှု ညှိနှိုင်းခြင်း

တပ်ဆင်မှုအခြေအနေအရ phase၊ neutral နှင့် PE ကြိုးများကို ရွေးပါ။ လျှပ်စီးခံနိုင်မှု၊ ဗို့အားကျဆင်းမှုနှင့် short-circuit ခံနိုင်မှုကို စစ်ပါ။ Breaker ကို ကြိုးနှင့် fault current တို့နှင့် ညှိပါ။ Backup အင်ဗာတာ၏ fault တုံ့ပြန်မှုသည် grid နှင့် မတူနိုင်ပါ။ RCD type/location ကို manual အရ၊ SPD ကို supply နှင့် မိုးကြိုးဒီဇိုင်းအရ ရွေးပါ။

Source mode တိုင်း စစ်ဆေးခြင်း

သင့်လျော်သော gland၊ ကြိုးဆွဲအားထိန်း၊ isolator နှင့် label များ သုံးပါ။ PE ကို မပြတ်စေဘဲ RCD နောက်ဘက် neutral များ ခွဲထားပါ။ Polarity၊ လိုအပ်ပါက phase sequence၊ PE continuity နှင့် protection စမ်းသပ်မှုကို မှတ်တမ်းတင်ပါ။ လွှဲပြောင်းမီ grid၊ generator၊ island mode တို့၏ transfer နှင့် neutral–earth လုပ်ဆောင်မှုကို စစ်ပါ။

ထုတ်လုပ်သူ၏ နည်းပညာကိုးကားချက်

Control / Monitoring

Control / Monitoring illustrated guide
Click the image to open at full size.

Image ratings and connections are illustrative. Use the approved design and exact equipment manuals for the actual installation.

Small signals control the system

Monitoring connects the inverter, battery BMS, meters and energy-management system. A communication fault can affect charging limits or export control even when the power cables are correct. Make a port schedule showing protocol, cable, pinout and device address before installation.

Match the interface

An RJ45 socket does not necessarily carry Ethernet. CAN, RS485 and manufacturer-specific links can use similar plugs with different wiring. Use the approved cable and termination scheme; fit terminators only where specified. Route signal cables away from power interference and terminate shields as instructed rather than assuming one universal grounding rule.

Prove the readings and controls

Confirm meter phase assignment, CT direction and ratio using the meter manual. Conventional current-output CT secondaries must not be left open while the primary is energized. Check communication status, believable power direction, alarms and the response to a lost link. Document addresses, firmware compatibility and dry-contact ratings; never apply mains voltage to an unspecified signal input.

Manufacturer technical reference

Control / Monitoring illustrated guide
မူရင်းအရွယ်အစားဖြင့် ကြည့်ရန် ပုံကိုနှိပ်ပါ။

ပုံပါ rating နှင့် ချိတ်ဆက်ပုံများသည် ဥပမာသာဖြစ်သည်။ အမှန်တကယ်ချိတ်ဆက်မှုကို approved design နှင့် သက်ဆိုင်ရာ equipment manual အရ ဆောင်ရွက်ပါ။

စနစ်ကို ထိန်းချုပ်သော signal များ

Monitoring သည် အင်ဗာတာ၊ battery BMS၊ meter နှင့် EMS တို့ကို ဆက်သွယ်သည်။ Power ကြိုးမှန်သော်လည်း communication ချို့ယွင်းမှုက charge limit သို့မဟုတ် export control ကို ထိခိုက်နိုင်သည်။ တပ်ဆင်မီ protocol၊ cable၊ pinout နှင့် device address ပါသော port စာရင်း ပြုစုပါ။

Interface ကိုက်ညီစေခြင်း

RJ45 ပေါက်တိုင်း Ethernet မဟုတ်ပါ။ CAN၊ RS485 နှင့် ထုတ်လုပ်သူသီးသန့် link များသည် plug တူသော်လည်း wiring မတူနိုင်ပါ။ ခွင့်ပြု cable နှင့် termination ပုံစံကို သုံးပြီး သတ်မှတ်နေရာ၌သာ terminator တပ်ပါ။ Signal ကြိုးကို power interference မှ ခွဲသွယ်ပြီး shield ကို ညွှန်ကြားချက်အတိုင်း ချိတ်ပါ။

ဖတ်ရှုတန်ဖိုးနှင့် control စစ်ဆေးခြင်း

Meter manual အရ phase၊ CT ဦးတည်ချက်နှင့် ratio ကို စစ်ပါ။ ပုံမှန် current-output CT ၏ primary တွင် လျှပ်စီးစီးနေစဉ် secondary ကို အဖွင့်မထားရပါ။ Communication၊ power direction၊ alarm နှင့် link ပြတ်လျှင် တုံ့ပြန်ပုံကို စစ်ပါ။ Address၊ firmware ကိုက်ညီမှုနှင့် dry-contact rating ကို မှတ်တမ်းတင်ပါ။ မသတ်မှတ်ထားသော signal input သို့ mains voltage မပေးပါနှင့်။

ထုတ်လုပ်သူ၏ နည်းပညာကိုးကားချက်

Protective Earthing

Protective Earthing illustrated guide
Click the image to open at full size.

Image ratings and connections are illustrative. Use the approved design and exact equipment manuals for the actual installation.

Create a dependable protective path

Protective earthing connects exposed conductive equipment parts to the installation’s protective system. Bonding reduces potential differences and helps protective devices clear faults. An earth electrode alone is not a substitute for continuous PE wiring and coordinated circuit protection.

Connections that remain accessible

Use an identified main earth bar, suitable conductors and approved lugs or bonding hardware. Connect equipment chassis and PV mounting parts as their manuals require; coatings and rail joints can interrupt continuity. Keep surge-protection connections short and direct. Do not switch PE during source transfer or add neutral–earth bonds without the approved source-mode design.

Measure and maintain

Choose electrodes and corrosion protection for the site and earthing design. Keep test points accessible. Record protective-conductor continuity, electrode measurements where applicable and operation of the protective devices in each source mode. There is no single earth-resistance target or conductor size suitable for every installation; use the applicable design criteria and inspect connections during maintenance.

Manufacturer technical reference

Protective Earthing illustrated guide
မူရင်းအရွယ်အစားဖြင့် ကြည့်ရန် ပုံကိုနှိပ်ပါ။

ပုံပါ rating နှင့် ချိတ်ဆက်ပုံများသည် ဥပမာသာဖြစ်သည်။ အမှန်တကယ်ချိတ်ဆက်မှုကို approved design နှင့် သက်ဆိုင်ရာ equipment manual အရ ဆောင်ရွက်ပါ။

ယုံကြည်ရသော ကာကွယ်ရေးလမ်းကြောင်း

Protective earthing သည် ထိတွေ့နိုင်သော လျှပ်ကူးပစ္စည်းအစိတ်အပိုင်းများကို စနစ်၏ ကာကွယ်ရေးလမ်းကြောင်းနှင့် ချိတ်ဆက်သည်။ Bonding က ဗို့အားကွာခြားမှုကို လျှော့ပြီး fault ဖြတ်တောက်မှုကို အထောက်အကူပြုသည်။ မြေချတံတစ်ခုတည်းသည် မပြတ်သော PE ကြိုးနှင့် ညှိနှိုင်းထားသော protection ကို အစားမထိုးပါ။

စစ်ဆေးနိုင်သော ချိတ်ဆက်မှုများ

သတ်မှတ် label ပါသော main earth bar၊ သင့်လျော်ကြိုး၊ lug နှင့် bonding hardware ကို သုံးပါ။ Chassis နှင့် PV mounting ကို manual အရ ချိတ်ပါ။ အပေါ်ယံအလွှာနှင့် rail အဆက်များက continuity ကို ဖြတ်နိုင်သည်။ SPD ချိတ်ဆက်မှုကို တို၍ တိုက်ရိုက်ထားပါ။ Source transfer တွင် PE မဖြတ်ဘဲ approved design မရှိလျှင် neutral–earth bond မထပ်ထည့်ပါနှင့်။

တိုင်းတာခြင်းနှင့် ထိန်းသိမ်းခြင်း

နေရာနှင့် earthing ဒီဇိုင်းအရ electrode နှင့် သံချေးကာကွယ်မှုကို ရွေးပါ။ Test point များကို စစ်ဆေးနိုင်စေပါ။ PE continuity၊ လိုအပ်သော electrode တိုင်းတာမှုနှင့် source mode တိုင်း protection အလုပ်လုပ်မှုကို မှတ်တမ်းတင်ပါ။ စနစ်အားလုံးအတွက် တစ်မျိုးတည်းသော earth resistance သို့မဟုတ် ကြိုးအရွယ် မရှိပါ။ သက်ဆိုင်ရာဒီဇိုင်းစံအရ စစ်ဆေးထိန်းသိမ်းပါ။

ထုတ်လုပ်သူ၏ နည်းပညာကိုးကားချက်

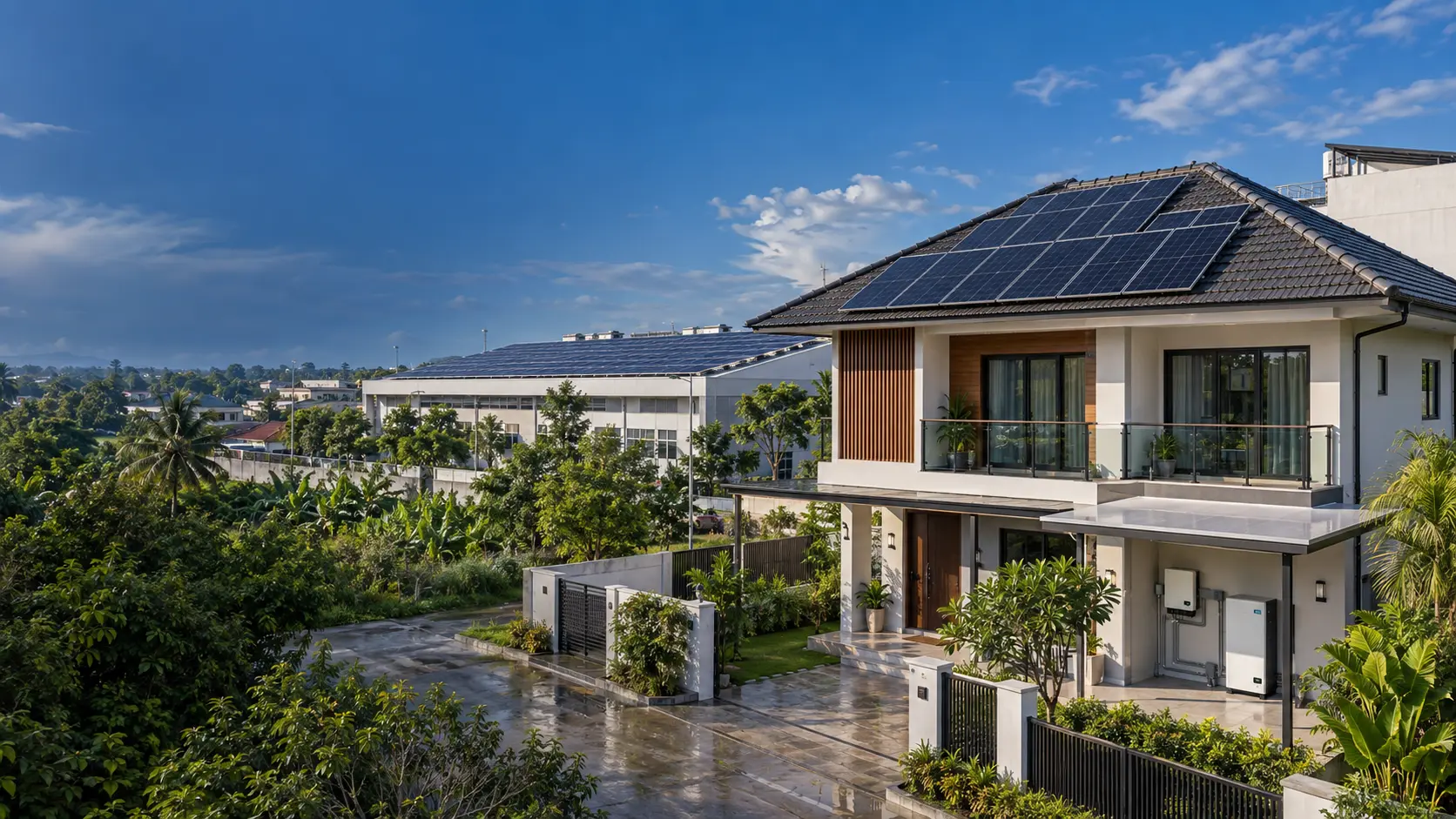

Residential & C&I PV explained

What does C&I PV mean?

C&I PV means Commercial and Industrial Photovoltaic systems. These are solar-power systems for businesses and industrial facilities. Residential PV serves homes. C&I is an application category, not one fixed system size.

PV classTypical sizeExamples
Residential3–20 kWpHouses, villas, small home offices
Small commercial20–100 kWpShops, offices, restaurants, clinics
Medium C&I100–500 kWpHotels, schools, warehouses, shopping centres
Large C&I500 kWp–1 MW+Factories, industrial plants, large warehouses

These ranges are typical examples, not universal classification boundaries. The nine configurations on this page are planning examples; their use-case labels can overlap these broad categories.

What makes C&I systems different?

C&I does not automatically mean medium-voltage connection or battery storage. Supply voltage and protection follow the utility requirements and site design; storage follows the operating purpose.

Example: a Myanmar factory

Backup requires compatible equipment, transfer arrangements and sufficient battery/inverter power. Battery energy alone does not determine which loads can operate or how long they will run.

Read the units correctly

Choose a class from the load profile

Start with daytime and overnight energy use, peak demand, motor starting loads and the required backup duration. Then check roof area and structure, shading, available supply, export rules and maintenance access. A business with modest loads may need a smaller system than a large home.

Separate essential loads from normal loads before planning storage. Confirm usable energy, continuous and surge power, recharge time and future expansion. Treat the table as a starting point for a site-specific design.

Sunlight reaches the module

PV cells convert light into direct-current electricity. Rated watts are measured under standard test conditions; real output changes with irradiance, temperature, shade and dirt.

Sunlight reaching PV modules connected into strings and a DC array
Sunlight becomes DC electricity. Select the image to view it at full size.

Inside each cell, absorbed light releases electrical charge that the cell collects as DC. Cells are connected within a module, and modules can be connected into strings to form an array. The inverter or charge controller then uses this DC electricity.

A module’s rated power is a reference, rather than a constant output throughout the day. Standard test conditions use 1,000 W/m² irradiance, a 25°C cell temperature and a standard sunlight spectrum (AM1.5). Cloud, shade and dirt reduce the light reaching the cells; higher cell temperature usually reduces power.

PV cell များသည် အလင်းကို တိုက်ရိုက်စီးလျှပ်စစ် (DC) အဖြစ် ပြောင်းလဲပေးသည်။ သတ်မှတ်ဝပ်အားကို စံစမ်းသပ်အခြေအနေများအောက်တွင် တိုင်းတာထားခြင်းဖြစ်ပြီး လက်တွေ့ထုတ်လုပ်မှုသည် နေရောင်ခြည်ပြင်းအား၊ အပူချိန်၊ အရိပ်နှင့် ဖုန်အညစ်အကြေးတို့အလိုက် ပြောင်းလဲသည်။

Sunlight reaching PV modules connected into strings and a DC array
နေရောင်ခြည်မှ DC လျှပ်စစ်အဖြစ် ပြောင်းလဲသည်။ ပုံအပြည့်အစုံကြည့်ရန် ပုံကိုနှိပ်ပါ။

Cell တစ်ခုစီအတွင်း စုပ်ယူထားသောအလင်းက လျှပ်စစ်ဓာတ်အားသယ်ဆောင်သော အမှုန်များကို လှုပ်ရှားစေပြီး cell က DC လျှပ်စစ်အဖြစ် စုဆောင်းပေးသည်။ Cell များကို module အတွင်း ချိတ်ဆက်ထားပြီး module များကို string များအဖြစ် ချိတ်ဆက်ကာ array တစ်ခု ဖွဲ့စည်းနိုင်သည်။ ထို DC လျှပ်စစ်ကို inverter သို့မဟုတ် charge controller က ဆက်လက်အသုံးပြုသည်။

Module ၏ သတ်မှတ်ဝပ်အားသည် ကိုးကားတန်ဖိုးဖြစ်ပြီး တစ်နေ့လုံး အမြဲတမ်းထုတ်လုပ်နိုင်သော ပမာဏမဟုတ်ပါ။ စံစမ်းသပ်အခြေအနေများတွင် နေရောင်ခြည်ပြင်းအား 1,000 W/m²၊ cell အပူချိန် 25°C နှင့် စံနေရောင်ခြည်ရောင်စဉ် (AM1.5) ကို အသုံးပြုသည်။ တိမ်၊ အရိပ်နှင့် ဖုန်အညစ်အကြေးတို့က cell သို့ရောက်ရှိသော အလင်းကို လျော့နည်းစေပြီး cell အပူချိန်မြင့်လာပါက ယေဘုယျအားဖြင့် ထုတ်လုပ်အား လျော့ကျသည်။

MPPT captures available power

The inverter continuously adjusts PV voltage and current to operate near the array’s maximum power point.

Illustrative PV power versus voltage curve showing the maximum power point
The peak marks the maximum power point. Select the diagram to view it at full size.

MPPT means Maximum Power Point Tracking. PV power is voltage multiplied by current (P = V × I). The highest voltage or highest current alone does not give the most power; the tracker seeks the operating point where their product is greatest.

As sunlight, cell temperature or shading changes, the best operating point moves. MPPT adjusts the electrical operating point to follow these changes. It cannot create extra sunlight or recover all power lost to shade, dirt or equipment limits.

During design, check each MPPT’s voltage range, maximum DC voltage and current limits against the proposed strings. Follow the exact inverter manual when grouping strings with different orientations or shading conditions.

Inverter သည် PV voltage နှင့် current ကို ဆက်တိုက်ညှိပြီး array ၏ maximum power point အနီးတွင် လည်ပတ်စေသည်။

Illustrative PV power versus voltage curve showing the maximum power point
မျဉ်းကွေး၏ အထွတ်သည် အမြင့်ဆုံးအားရရှိနိုင်သော အမှတ်ဖြစ်သည်။ ပုံအပြည့်ကြည့်ရန် နှိပ်ပါ။

MPPT ဆိုသည်မှာ Maximum Power Point Tracking၊ အမြင့်ဆုံးအားရရှိနိုင်သော အမှတ်ကို ရှာဖွေလိုက်လံညှိခြင်းဖြစ်သည်။ PV အားသည် ဗို့အားနှင့် လျှပ်စီး၏ မြှောက်လဒ်ဖြစ်သည် (P = V × I)။ ဗို့အားအမြင့်ဆုံး သို့မဟုတ် လျှပ်စီးအမြင့်ဆုံးတစ်ခုတည်းဖြင့် အားအများဆုံးမရနိုင်ပါ။ Tracker သည် ထိုနှစ်ခု၏ မြှောက်လဒ် အများဆုံးရရှိနိုင်သော လည်ပတ်အမှတ်ကို ရှာဖွေသည်။

နေရောင်ခြည်၊ cell အပူချိန် သို့မဟုတ် အရိပ်အခြေအနေ ပြောင်းလဲသောအခါ အကောင်းဆုံးလည်ပတ်အမှတ်လည်း ပြောင်းလဲသည်။ MPPT သည် ထိုပြောင်းလဲမှုများနှင့်အညီ လျှပ်စစ်လည်ပတ်အမှတ်ကို ချိန်ညှိပေးသည်။ နေရောင်ခြည်ကို ပိုမိုဖန်တီးပေးခြင်း သို့မဟုတ် အရိပ်၊ ဖုန်နှင့် ပစ္စည်းကန့်သတ်ချက်ကြောင့် ဆုံးရှုံးသောအားအားလုံးကို ပြန်လည်ရယူပေးခြင်း မပြုနိုင်ပါ။

ဒီဇိုင်းရေးဆွဲရာတွင် MPPT တစ်ခုစီ၏ ဗို့အားလည်ပတ်အကွာအဝေး၊ အများဆုံး DC ဗို့အားနှင့် လျှပ်စီးကန့်သတ်ချက်များကို အဆိုပြု string များနှင့် ကိုက်ညီမှုရှိမရှိ စစ်ဆေးပါ။ ဦးတည်ရာ သို့မဟုတ် အရိပ်အခြေအနေ မတူသော string များကို စုဖွဲ့ရာတွင် သက်ဆိုင်ရာ inverter မော်ဒယ်၏ လက်စွဲအတိုင်း လိုက်နာပါ။

The inverter supplies AC power

DC becomes synchronized AC for appliances, motors and distribution boards. A hybrid inverter can also charge a battery and coordinate the grid or generator.

The inverter supplies AC power — system concept illustration
Concept illustration. Select the image to view it at full size.

PV modules produce direct current. The inverter uses electronic switching and control to convert this into alternating current at the voltage and frequency required by the connected system. A grid-connected inverter synchronizes its output with the supply.

A standard grid-connected inverter normally stops supplying power when the grid fails. Backup operation requires equipment designed for that purpose, suitable isolation and a defined backup circuit. Hybrid features, generator connections and battery support depend on the exact model.

Match continuous output, phase arrangement and motor-starting demand to the loads. Confirm the manufacturer’s AC wiring, protection and earthing requirements before installation.

DC ကို appliance၊ motor နှင့် distribution board များအတွက် AC သို့ ပြောင်းပေးသည်။ Hybrid inverter သည် battery၊ grid သို့ generator နှင့်လည်း ညှိနှိုင်းနိုင်သည်။

The inverter supplies AC power — system concept illustration
စနစ်အယူအဆပြပုံ။ ပုံအပြည့်ကြည့်ရန် ပုံကိုနှိပ်ပါ။

PV module များသည် တိုက်ရိုက်စီးလျှပ်စစ် (DC) ကို ထုတ်လုပ်သည်။ Inverter သည် အီလက်ထရွန်နစ် switching နှင့် ထိန်းချုပ်မှုဖြင့် ထို DC ကို ချိတ်ဆက်ထားသော စနစ်အတွက် လိုအပ်သည့် ဗို့အားနှင့် ကြိမ်နှုန်းရှိသော အပြန်အလှန်စီးလျှပ်စစ် (AC) အဖြစ် ပြောင်းလဲပေးသည်။ Grid နှင့် ချိတ်ဆက်သော inverter သည် ၎င်း၏ output ကို ပင်မဓာတ်အားနှင့် ကိုက်ညီအောင် ညှိပေးသည်။

ပုံမှန် grid ချိတ်ဆက် inverter သည် grid ဓာတ်အားပြတ်သောအခါ ယေဘုယျအားဖြင့် ဓာတ်အားပေးမှုကို ရပ်တန့်သည်။ အရန်ဓာတ်အားလည်ပတ်မှုအတွက် ထိုရည်ရွယ်ချက်အတွက် ဒီဇိုင်းပြုထားသော ပစ္စည်း၊ သင့်လျော်သော isolation နှင့် သတ်မှတ်ထားသော backup circuit လိုအပ်သည်။ Hybrid လုပ်ဆောင်ချက်များ၊ generator ချိတ်ဆက်မှုနှင့် battery အသုံးပြုနိုင်မှုတို့သည် မော်ဒယ်အတိအကျပေါ် မူတည်သည်။

ဆက်တိုက်ပေးနိုင်သော output၊ phase ဖွဲ့စည်းပုံနှင့် motor စတင်ချိန်လိုအပ်အားကို load များနှင့် ကိုက်ညီအောင် ရွေးချယ်ပါ။ တပ်ဆင်ခြင်းမပြုမီ ထုတ်လုပ်သူ၏ AC ကြိုးသွယ်ခြင်း၊ ကာကွယ်ရေးနှင့် မြေချိတ်ခြင်းလိုအပ်ချက်များကို အတည်ပြုပါ။

Energy is used, stored or exported

Loads normally use solar first. Surplus may charge the battery or export where permitted; shortages come from the battery, grid or generator according to control settings.

Energy is used, stored or exported — system concept illustration
Concept illustration. Select the image to view it at full size.

When solar production meets the connected demand, it can supply the loads directly through the inverter. Surplus can charge a compatible battery within its charging limits. Export to the grid requires permission and suitable equipment; an export limit may be needed.

When production falls, the controller can draw from available sources according to the system design and settings. Battery state of charge, reserve, discharge power and inverter capacity limit backup operation. A generator can support loads or charging only where the installation is designed to integrate it.

If the battery is full and export is unavailable, the system may reduce PV production. Check actual energy flows in monitoring and test the intended grid, backup and generator modes during commissioning.

Load များက solar ကို ပထမသုံးသည်။ ပိုလျှံအားကို battery သွင်း သို့ ခွင့်ပြုပါက grid သို့ပို့ပြီး မလုံလောက်ပါက battery၊ grid သို့ generator မှယူသည်။

Energy is used, stored or exported — system concept illustration
စနစ်အယူအဆပြပုံ။ ပုံအပြည့်ကြည့်ရန် ပုံကိုနှိပ်ပါ။

ဆိုလာထုတ်လုပ်အားသည် ချိတ်ဆက်ထားသော လိုအပ်အားကို ပြည့်မီသောအခါ inverter မှတစ်ဆင့် load များကို တိုက်ရိုက်ပေးနိုင်သည်။ ပိုလျှံအားကို ကိုက်ညီသော battery ၏ charging ကန့်သတ်ချက်အတွင်း သိမ်းဆည်းနိုင်သည်။ Grid သို့ ဓာတ်အားပို့ရန် ခွင့်ပြုချက်နှင့် သင့်လျော်သောပစ္စည်း လိုအပ်ပြီး export limit သတ်မှတ်ရန်လည်း လိုအပ်နိုင်သည်။

ဆိုလာထုတ်လုပ်အား လျော့နည်းသောအခါ controller သည် စနစ်ဒီဇိုင်းနှင့် setting များအတိုင်း ရရှိနိုင်သော ရင်းမြစ်များမှ ဓာတ်အားယူနိုင်သည်။ Battery လက်ကျန်အား၊ အရန်ချန်ထားသောအား၊ ထုတ်ပေးနိုင်သောအားနှင့် inverter စွမ်းရည်တို့က backup လည်ပတ်မှုကို ကန့်သတ်သည်။ Generator ကို ပေါင်းစပ်အသုံးပြုရန် ဒီဇိုင်းပြုထားသော တပ်ဆင်မှုတွင်သာ load သို့မဟုတ် charging အတွက် အသုံးပြုနိုင်သည်။

Battery ပြည့်နေပြီး grid သို့ ပို့၍မရပါက စနစ်သည် PV ထုတ်လုပ်မှုကို လျှော့ချနိုင်သည်။ Monitoring တွင် အမှန်တကယ်စွမ်းအင်စီးဆင်းမှုကို စစ်ဆေးပြီး commissioning ပြုလုပ်ရာ၌ ရည်ရွယ်ထားသော grid၊ backup နှင့် generator mode များကို စမ်းသပ်ပါ။

Basic production estimate

Daily energy ≈ array kWp × peak-sun-hours × performance ratio

5.5 kWp times 5 peak-sun-hours times 0.78 performance ratio equals 21.45 kWh per day
Illustrative calculation. Select the image to view it at full size.

Array kWp: the total rated DC power of all modules under standard test conditions. Add their rated watts and divide by 1,000. For example, 10 modules × 550 W = 5,500 W = 5.5 kWp. kWp describes rated power; kWh describes energy produced over time.

Peak-sun-hours (PSH): daily solar irradiation expressed as the equivalent number of hours at 1,000 W/m². It is not the number of daylight hours. For example, 5 kWh/m² of daily irradiation corresponds to 5 peak-sun-hours. Use data for the location, season and panel orientation; horizontal irradiation is only a starting approximation for a tilted array.

Performance ratio (PR): the fraction of the reference solar yield delivered after system losses. A planning value of 0.78 means 78% of the reference yield, with 22% allowed for combined losses. These can include module temperature, dirt, mismatch, wiring and inverter conversion. PR is not the module’s cell efficiency, and 0.78 is an illustrative assumption rather than a universal value.

Worked example: 5.5 kWp × 5.0 h = 27.5 kWh of reference daily energy. Apply PR: 27.5 × 0.78 = 21.45 kWh/day, rounded to 21.5 kWh/day. The loss allowance is 27.5 − 21.45 = 6.05 kWh/day.

Use the result as a preliminary PV energy estimate, rather than guaranteed daily output or battery backup energy. Weather and shading vary, and storage introduces additional losses. For a monthly estimate, use that month’s average daily PSH and PR, then multiply by its number of days; do not assume this clear-season example applies all year.

For an additional monthly estimate, use the location and monthly solar data in the Myanmar solar radiation and availability map.

နေ့စဉ်စွမ်းအင် ≈ array kWp × peak-sun-hours × performance ratio

5.5 kWp times 5 peak-sun-hours times 0.78 performance ratio equals 21.45 kWh per day
နမူနာတွက်ချက်မှု။ ပုံအပြည့်ကြည့်ရန် ပုံကိုနှိပ်ပါ။

Array kWp ဆိုသည်မှာ စံစမ်းသပ်အခြေအနေအောက်ရှိ module အားလုံး၏ သတ်မှတ် DC ဝပ်အားစုစုပေါင်းဖြစ်သည်။ သတ်မှတ်ဝပ်အားများကို ပေါင်းပြီး 1,000 ဖြင့်စားပါ။ ဥပမာ module 10 ချပ် × 550 W = 5,500 W = 5.5 kWp ဖြစ်သည်။ kWp သည် သတ်မှတ်အားကို ဖော်ပြပြီး kWh သည် အချိန်တစ်ခုအတွင်း ထုတ်လုပ်သော စွမ်းအင်ကို ဖော်ပြသည်။

Peak-sun-hours (PSH) ဆိုသည်မှာ တစ်နေ့တာရရှိသော နေရောင်ခြည်စွမ်းအင်ကို 1,000 W/m² ပြင်းအားဖြင့် ရရှိသော ညီမျှနာရီအရေအတွက်အဖြစ် ဖော်ပြခြင်းဖြစ်သည်။ နေ့အလင်းရောင်ရှိသည့် နာရီအရေအတွက်ကို ဆိုလိုခြင်းမဟုတ်ပါ။ ဥပမာ နေ့စဉ်နေရောင်ခြည်စွမ်းအင် 5 kWh/m² ရရှိခြင်းသည် peak-sun-hours 5 နာရီနှင့် ညီမျှသည်။ နေရာ၊ ရာသီနှင့် panel ဦးတည်ရာအတွက် အချက်အလက်ကို အသုံးပြုပါ။ အလျားလိုက်မျက်နှာပြင်၏ နေရောင်ခြည်အချက်အလက်သည် စောင်းထားသော array အတွက် အစပြုခန့်မှန်းချက်သာဖြစ်သည်။

Performance ratio (PR) ဆိုသည်မှာ စနစ်ဆုံးရှုံးမှုများပြီးနောက် ရရှိသော ထုတ်လုပ်မှုကို ကိုးကားထုတ်လုပ်မှုနှင့် နှိုင်းယှဉ်ထားသည့် အချိုးဖြစ်သည်။ စီမံကိန်းခန့်မှန်းတန်ဖိုး 0.78 သည် ကိုးကားထုတ်လုပ်မှု၏ 78% ရရှိပြီး စုပေါင်းဆုံးရှုံးမှုအတွက် 22% ခန့်မှန်းထားခြင်းဖြစ်သည်။ ထိုဆုံးရှုံးမှုများတွင် module အပူချိန်၊ ဖုန်၊ module များအကြား မကိုက်ညီမှု၊ ကြိုးနှင့် inverter ပြောင်းလဲမှုတို့ ပါဝင်နိုင်သည်။ PR သည် module cell efficiency မဟုတ်ပါ။ 0.78 သည် နမူနာယူဆချက်ဖြစ်ပြီး စနစ်အားလုံးအတွက် တူညီသောတန်ဖိုးမဟုတ်ပါ။

တွက်ချက်မှုဥပမာ — 5.5 kWp × 5.0 h = ကိုးကားနေ့စဉ်စွမ်းအင် 27.5 kWh ဖြစ်သည်။ PR ထည့်တွက်ပါက 27.5 × 0.78 = 21.45 kWh/day ဖြစ်ပြီး ဒဿမတစ်နေရာသို့ ဝိုင်းလျှင် 21.5 kWh/day ရရှိသည်။ ဆုံးရှုံးမှုအတွက် ခန့်မှန်းထားသောပမာဏမှာ 27.5 − 21.45 = 6.05 kWh/day ဖြစ်သည်။

ရလဒ်ကို အကြမ်းဖျဉ်း PV စွမ်းအင်ခန့်မှန်းချက်အဖြစ် အသုံးပြုပါ။ နေ့စဉ်မဖြစ်မနေရရှိမည့် output သို့မဟုတ် battery backup စွမ်းအင်အဖြစ် မယူဆပါနှင့်။ ရာသီဥတုနှင့် အရိပ်တို့ ပြောင်းလဲပြီး သိုလှောင်မှုတွင် ထပ်မံဆုံးရှုံးမှုရှိသည်။ လစဉ်ခန့်မှန်းရန် ထိုလ၏ ပျမ်းမျှနေ့စဉ် PSH နှင့် PR ကို အသုံးပြုပြီး လအတွင်းရက်အရေအတွက်ဖြင့် မြှောက်ပါ။ ဤနေရောင်ကောင်းသောရာသီ၏ ဥပမာကို တစ်နှစ်လုံးအတွက် တူညီသည်ဟု မယူဆပါနှင့်။

လစဉ်စွမ်းအင်ကို ထပ်မံခန့်မှန်းရန် မြန်မာနိုင်ငံ နေရောင်ခြည်ဖြာထွက်မှုနှင့် ရရှိနိုင်မှုမြေပုံ တွင် သက်ဆိုင်ရာနေရာနှင့် လစဉ်နေရောင်ခြည်အချက်အလက်များကို လေ့လာပါ။

Commissioning checks

Verify structure, waterproofing, clamp zones, shade, polarity, insulation resistance, labels, and safe maintenance access.

PV commissioning checklist illustration

Mechanical checks: confirm the mounting design, fixings and module clamp zones against the approved drawings and manufacturer instructions. Inspect roof penetrations and waterproof seals, cable supports, and safe access for future maintenance.

Electrical checks: trained personnel should verify polarity, string voltage, protective bonding and insulation resistance using the applicable procedure and suitable instruments. Follow equipment instructions for disconnecting sensitive electronics before insulation testing. PV strings can remain energized in daylight.

Handover checks: review shading and the as-built layout, confirm circuit and isolation labels, record test results and equipment settings, and explain safe operation and maintenance to the owner. Use the applicable commissioning procedure; this illustration is a checklist overview.

Eight PV array commissioning checks

  1. Structure

    Confirm roof or foundation suitability, rail supports, anchors and fixings against the approved structural design. Inspect damage, corrosion and loose connections; verify tightening requirements from the mounting manufacturer.

  2. Waterproofing

    Inspect every roof penetration, flashing, gasket and seal. Use the roof and mounting manufacturer’s approved method, keep drainage paths clear and confirm that attachments do not create water traps.

  3. Clamp zones

    Check that mid and end clamps are within the module manufacturer’s permitted zones and match the frame thickness. Verify clamp engagement and specified torque; do not assume the same positions suit every module.

  4. Shade

    Review shade from trees, nearby buildings and rooftop objects across the day and seasons. Compare the installed layout and string or MPPT grouping with the shading assessment, and record remaining shading in the production estimate.

  5. Polarity

    Qualified personnel should confirm positive and negative identification and string polarity before connection, using suitable DC-rated instruments and the approved procedure. Compare measured string voltage with the expected value and equipment limits. Do not unplug PV connectors under load.

  6. Insulation resistance

    Use the applicable PV test procedure to check insulation between the DC circuit and earth. Select the test voltage and acceptance criteria for the system, and disconnect or protect inverters, SPDs and other sensitive equipment as instructed. Record results; the meter in the illustration is not a test specification.

  7. Labels

    Confirm durable, readable circuit identifiers, polarity markings, isolation labels and PV warning signs at the required locations. Match labels to the as-built drawings so the owner and maintenance team can identify each circuit and disconnecting point.

  8. Maintenance access

    Provide safe access to modules, wiring, isolation points and inspection areas in line with the site’s roof-access and fall-protection plan. Keep walkways clear and avoid walking on modules. Hand over cleaning, inspection and emergency-isolation guidance with the test records.

Eight PV array commissioning checks: structure, waterproofing, clamp zones, shade, polarity, insulation resistance, labels and maintenance access
Eight-check illustration. Select the image to view it at full size.

တည်ဆောက်ပုံ၊ ရေမဝင်အောင်လုပ်ထားမှု၊ clamp တပ်ဆင်သည့် နေရာများ၊ အရိပ်၊ polarity၊ insulation resistance၊ အမှတ်အသားများနှင့် လုံခြုံသော ထိန်းသိမ်းရေးဝင်ထွက်လမ်းကို စစ်ဆေးပါ။

PV commissioning checklist illustration

စက်ပိုင်းဆိုင်ရာစစ်ဆေးမှု — တပ်ဆင်ရေးဒီဇိုင်း၊ ချိတ်ဆက်ပစ္စည်းများနှင့် module clamp နေရာများကို အတည်ပြုပုံများနှင့် ထုတ်လုပ်သူလက်စွဲအတိုင်း စစ်ဆေးပါ။ အမိုးဖောက်ထားသောနေရာနှင့် ရေလုံပိတ်ဆို့မှု၊ ကြိုးထောက်များနှင့် နောက်ပိုင်းထိန်းသိမ်းရန် လုံခြုံသောဝင်ထွက်လမ်းတို့ကို စစ်ပါ။

လျှပ်စစ်ပိုင်းစစ်ဆေးမှု — လေ့ကျင့်ထားသော ကျွမ်းကျင်သူများက သက်ဆိုင်ရာလုပ်ထုံးလုပ်နည်းနှင့် သင့်လျော်သောကိရိယာများဖြင့် polarity၊ string ဗို့အား၊ protective bonding နှင့် insulation resistance ကို စစ်ဆေးရမည်။ Insulation စမ်းသပ်ခြင်းမပြုမီ ထိခိုက်လွယ်သော အီလက်ထရွန်နစ်ပစ္စည်းများကို ဖြုတ်ရန် ပစ္စည်းလက်စွဲအတိုင်း လိုက်နာပါ။ နေ့အလင်းရောင်ရှိချိန်တွင် PV string များ၌ ဓာတ်အားဆက်လက်ရှိနိုင်သည်။

လွှဲပြောင်းပေးအပ်ချိန်စစ်ဆေးမှု — အရိပ်နှင့် အမှန်တကယ်တပ်ဆင်ထားသော layout ကို ပြန်လည်သုံးသပ်၍ circuit နှင့် isolation အမှတ်အသားများကို အတည်ပြုပါ။ စမ်းသပ်ရလဒ်နှင့် ပစ္စည်း setting များကို မှတ်တမ်းတင်ပြီး လုံခြုံသောလည်ပတ်မှုနှင့် ထိန်းသိမ်းမှုကို ပိုင်ရှင်အား ရှင်းပြပါ။ သက်ဆိုင်ရာ commissioning လုပ်ထုံးလုပ်နည်းကို အသုံးပြုပါ။ ဤပုံသည် စစ်ဆေးရန်အချက်များ၏ အကျဉ်းချုပ်သာဖြစ်သည်။

PV array စတင်လည်ပတ်မီ စစ်ဆေးရမည့် အချက် ၈ ချက်

  1. တည်ဆောက်ပုံ

    အမိုး သို့မဟုတ် အုတ်မြစ်၏ သင့်လျော်မှု၊ rail ထောက်များ၊ anchor နှင့် ချိတ်ဆက်ပစ္စည်းများကို အတည်ပြုထားသော တည်ဆောက်ပုံဒီဇိုင်းနှင့် စစ်ဆေးပါ။ ပျက်စီးမှု၊ သံချေးနှင့် လျော့နေသောဆက်သွယ်မှုများကို စစ်ပြီး တပ်ဆင်ရေးထုတ်လုပ်သူ၏ တင်းကျပ်မှုသတ်မှတ်ချက်များကို အတည်ပြုပါ။

  2. ရေလုံခြင်း

    အမိုးဖောက်ထားသောနေရာတိုင်း၊ flashing၊ gasket နှင့် seal များကို စစ်ဆေးပါ။ အမိုးနှင့် mounting ထုတ်လုပ်သူက အတည်ပြုထားသော နည်းလမ်းကို အသုံးပြု၍ ရေစီးလမ်းများ မပိတ်စေဘဲ ချိတ်ဆက်ပစ္စည်းများကြောင့် ရေတင်ကျန်နေမှု မဖြစ်စေရန် အတည်ပြုပါ။

  3. Clamp တပ်ဆင်ရမည့်နေရာများ

    အလယ်နှင့် အဆုံး clamp များသည် module ထုတ်လုပ်သူ ခွင့်ပြုထားသောနေရာအတွင်း ရှိပြီး frame အထူနှင့် ကိုက်ညီကြောင်း စစ်ဆေးပါ။ Clamp ဖမ်းထားမှုနှင့် သတ်မှတ် torque ကို အတည်ပြုပါ။ Module အားလုံးအတွက် တပ်ဆင်နေရာ တူညီသည်ဟု မယူဆပါနှင့်။

  4. အရိပ်

    တစ်နေ့တာနှင့် ရာသီအလိုက် သစ်ပင်၊ အနီးရှိအဆောက်အအုံနှင့် အမိုးပေါ်ပစ္စည်းများ၏ အရိပ်ကို သုံးသပ်ပါ။ တပ်ဆင်ထားသော layout နှင့် string သို့မဟုတ် MPPT စုဖွဲ့မှုကို အရိပ်လေ့လာချက်နှင့် နှိုင်းယှဉ်၍ ကျန်ရှိသောအရိပ်ကို ထုတ်လုပ်မှုခန့်မှန်းချက်တွင် မှတ်တမ်းတင်ပါ။

  5. အပေါင်းအနုတ် မှန်ကန်မှု

    အရည်အချင်းပြည့်မီသူများက သင့်လျော်သော DC-rated ကိရိယာနှင့် အတည်ပြုလုပ်ထုံးလုပ်နည်းဖြင့် ချိတ်ဆက်မီ အပေါင်းအနုတ်အမှတ်အသားနှင့် string polarity ကို စစ်ဆေးရမည်။ တိုင်းတာထားသော string ဗို့အားကို မျှော်မှန်းတန်ဖိုးနှင့် ပစ္စည်းကန့်သတ်ချက်များနှင့် နှိုင်းယှဉ်ပါ။ Load လျှပ်စီးစီးနေချိန်တွင် PV connector များကို မဖြုတ်ပါနှင့်။

  6. လျှပ်ကာခုခံမှု

    DC circuit နှင့် earth ကြား လျှပ်ကာကို သက်ဆိုင်ရာ PV စမ်းသပ်လုပ်ထုံးလုပ်နည်းဖြင့် စစ်ဆေးပါ။ စနစ်အတွက် သင့်လျော်သော test voltage နှင့် လက်ခံစံကို ရွေးပြီး လက်စွဲအတိုင်း inverter၊ SPD နှင့် အခြားထိခိုက်လွယ်ပစ္စည်းများကို ဖြုတ်ခြင်း သို့မဟုတ် ကာကွယ်ခြင်း ပြုလုပ်ပါ။ ရလဒ်များကို မှတ်တမ်းတင်ပါ။ ပုံထဲရှိ meter သည် စမ်းသပ်သတ်မှတ်ချက် မဟုတ်ပါ။

  7. အမှတ်အသားများ

    လိုအပ်သောနေရာများတွင် ကြာရှည်ခံ၍ ဖတ်ရှုနိုင်သော circuit အမည်၊ polarity အမှတ်အသား၊ isolation label နှင့် PV သတိပေးအမှတ်အသားများကို အတည်ပြုပါ။ ပိုင်ရှင်နှင့် ထိန်းသိမ်းရေးအဖွဲ့က circuit နှင့် ဖြုတ်တောက်နေရာတိုင်းကို သိနိုင်ရန် label များကို အမှန်တကယ်တပ်ဆင်ထားသော ပုံများနှင့် ကိုက်ညီစေပါ။

  8. ထိန်းသိမ်းရေး ဝင်ထွက်လမ်း

    နေရာ၏ အမိုးဝင်ထွက်မှုနှင့် ပြုတ်ကျမှုကာကွယ်ရေးအစီအစဉ်အတိုင်း module၊ ကြိုး၊ isolation နေရာနှင့် စစ်ဆေးရမည့်နေရာများသို့ လုံခြုံစွာ ဝင်ရောက်နိုင်စေပါ။ လမ်းများကို ရှင်းထားပြီး module ပေါ် မနင်းပါနှင့်။ စမ်းသပ်မှတ်တမ်းများနှင့်အတူ သန့်ရှင်းရေး၊ စစ်ဆေးရေးနှင့် အရေးပေါ်ဖြုတ်တောက်မှုလမ်းညွှန်ကို လွှဲပြောင်းပေးပါ။

Eight PV array commissioning checks: structure, waterproofing, clamp zones, shade, polarity, insulation resistance, labels and maintenance access
စစ်ဆေးချက် ၈ ချက်ပြပုံ။ ပုံအပြည့်ကြည့်ရန် ပုံကိုနှိပ်ပါ။

Earthing / grounding

Bond module frames and rails with approved hardware; connect to the protective earth system according to the lightning and fault study.

Module frames and rails bonded through approved hardware to the protective earth system and MET
Concept illustration; conductor sizes and lightning measures come from the site design.

Bonding joins exposed metal parts so they form a continuous protective path. Use module and mounting manufacturer-approved clips, lugs or washers that provide reliable electrical contact through the specified attachment points. Do not assume every clamp or rail splice provides electrical continuity.

Connect the array bonding path to the installation’s protective earthing arrangement and main earthing terminal (MET), as specified by the design. Select conductor size from the applicable fault-protection, bonding and equipment requirements. Protect conductors from damage and corrosion, and keep connections accessible for inspection.

Lightning protection needs a coordinated design. Where an isolated lightning-protection system is used, maintain the calculated separation distance from PV frames and cables. If separation cannot be maintained, the designer must specify lightning bonding and surge protection. Earth electrodes and the lightning system must be coordinated through the designed earthing network; an SPD does not replace protective bonding.

Before handover, qualified personnel should inspect the hardware and verify protective-conductor continuity using the applicable test procedure. Record results and the installed route. Do not connect PV negative or neutral to PE unless the approved system design and equipment instructions require it.

Read the PE / Bonding Cable guide

PV array earthing and bonding illustration showing five coordinated elements
PV array earthing and bonding: approved hardware, continuous rail bonding, PE conductor and main protective-earth terminal, coordinated with the lightning and fault study. Select the image to view it at full size.

Module frame နှင့် rail များကို အတည်ပြုထားသော bonding ပစ္စည်းများဖြင့် ဆက်သွယ်ပြီး မိုးကြိုးနှင့် fault လေ့လာချက်အရ protective earth စနစ်သို့ ချိတ်ဆက်ပါ။

Module frames and rails bonded through approved hardware to the protective earth system and MET
အယူအဆပြပုံသာဖြစ်သည်။ ကြိုးအရွယ်အစားနှင့် မိုးကြိုးကာကွယ်ရေးကို နေရာအလိုက် ဒီဇိုင်းက သတ်မှတ်သည်။

Bonding သည် ထိတွေ့နိုင်သော သတ္တုအစိတ်အပိုင်းများကို ဆက်သွယ်၍ အဆက်မပြတ်ကာကွယ်ရေးလမ်းကြောင်းတစ်ခု ဖွဲ့စည်းပေးသည်။ Module နှင့် mounting ထုတ်လုပ်သူက အတည်ပြုထားသော clip၊ lug သို့မဟုတ် washer များကို သတ်မှတ်ချိတ်ဆက်နေရာများတွင် အသုံးပြုပြီး ယုံကြည်စိတ်ချရသော လျှပ်စစ်ဆက်သွယ်မှု ရရှိစေပါ။ Clamp သို့မဟုတ် rail ဆက်ပစ္စည်းတိုင်းက လျှပ်စစ်ဆက်သွယ်မှု ရရှိစေသည်ဟု မယူဆပါနှင့်။

Array bonding လမ်းကြောင်းကို ဒီဇိုင်းသတ်မှတ်ချက်အတိုင်း တပ်ဆင်မှု၏ protective earthing စနစ်နှင့် ပင်မမြေချိတ်ဆက်နေရာ (MET) သို့ ချိတ်ဆက်ပါ။ ကြိုးအရွယ်အစားကို သက်ဆိုင်ရာ fault ကာကွယ်ရေး၊ bonding နှင့် ပစ္စည်းလိုအပ်ချက်များအရ ရွေးချယ်ပါ။ ကြိုးများကို ပျက်စီးမှုနှင့် သံချေးမှ ကာကွယ်ပြီး ဆက်သွယ်နေရာများကို စစ်ဆေးနိုင်စေပါ။

မိုးကြိုးကာကွယ်ရေးအတွက် ညှိနှိုင်းထားသော ဒီဇိုင်းလိုအပ်သည်။ သီးခြားခွဲထားသော မိုးကြိုးကာကွယ်ရေးစနစ်ကို အသုံးပြုပါက PV frame နှင့် ကြိုးများမှ တွက်ချက်ထားသော ခွဲခြားအကွာအဝေးကို ထိန်းထားပါ။ အကွာအဝေးမထိန်းနိုင်ပါက ဒီဇိုင်နာက lightning bonding နှင့် surge protection ကို သတ်မှတ်ရမည်။ Earth electrode နှင့် မိုးကြိုးစနစ်တို့ကို ဒီဇိုင်းပြုထားသော earthing network မှတစ်ဆင့် ညှိနှိုင်းရမည်။ SPD သည် protective bonding ကို အစားမထိုးပါ။

လွှဲပြောင်းမပေးမီ အရည်အချင်းပြည့်မီသူများက bonding ပစ္စည်းများကို စစ်ဆေးပြီး သက်ဆိုင်ရာစမ်းသပ်လုပ်ထုံးလုပ်နည်းဖြင့် protective conductor အဆက်မပြတ်ဆက်သွယ်မှုကို အတည်ပြုရမည်။ ရလဒ်နှင့် တပ်ဆင်ထားသော ကြိုးလမ်းကြောင်းကို မှတ်တမ်းတင်ပါ။ အတည်ပြုထားသော စနစ်ဒီဇိုင်းနှင့် ပစ္စည်းလက်စွဲက လိုအပ်သည်ဟု မသတ်မှတ်ပါက PV အနုတ် သို့မဟုတ် neutral ကို PE သို့ မချိတ်ဆက်ပါနှင့်။

PE / Bonding ကြိုးရွေးချယ်ခြင်း လမ်းညွှန်ကို ဖတ်ရန်

PV array earthing and bonding illustration showing five coordinated elements
PV array မြေချိတ်ခြင်းနှင့် bonding — အတည်ပြုထားသောပစ္စည်းများ၊ rail အဆက်မပြတ် bonding၊ PE ကြိုးနှင့် ပင်မ protective-earth ဆက်သွယ်နေရာတို့ကို မိုးကြိုးနှင့် fault လေ့လာချက်အရ ညှိနှိုင်းပါ။ ပုံအပြည့်ကြည့်ရန် ပုံကိုနှိပ်ပါ။

Protection & isolation

Check string Voc at the lowest design temperature and Isc/current against every MPPT limit. Add gPV fuses where parallel-string reverse current requires them.

PV protection selection: cold string voltage, MPPT current limits, reverse-current fuse assessment and DC isolation
Design-check illustration; device ratings must follow the completed array design.

Cold-weather voltage: module open-circuit voltage (Voc) normally rises as cell temperature falls. Calculate the string’s maximum Voc using the number of modules in series, the module’s voltage temperature coefficient and the lowest design temperature. Keep it within the inverter’s maximum DC voltage and the voltage ratings of cables, connectors, switches and protection devices.

MPPT checks: verify operating voltage remains inside the tracking range, including at high cell temperature. Check both maximum operating input current and maximum permitted short-circuit input current for each MPPT and input, using the manufacturer’s definitions. Parallel strings add current; series modules add voltage. Apply the design factors required for the module and installation, including bifacial gain where relevant.

String fuses: assess the reverse current that healthy parallel strings and any other sources could feed into a faulted string. Compare this with the module’s permitted reverse-current or overcurrent-protection limits and cable capacity. Where required, select PV-specific gPV fuses with suitable DC voltage, current and breaking capacity, coordinated with the module and cable. String count alone does not determine the fuse requirement.

Isolation: use PV DC-rated switching equipment suitable for the circuit and follow the approved isolation sequence. Opening an isolator does not make the daylight-exposed array or every conductor dead. Do not disconnect PV connectors under load. Confirm labels, enclosure protection and safe access, and record the voltage, current and fuse checks before handover.

Read the DC Protection guide

PV string protection and isolation illustration showing voltage and current checks, gPV fuses and DC isolators
PV string protection and isolation: cold-corrected Voc, MPPT current limits, gPV fuses where required and PV-rated DC isolation. Select the image to view it at full size.

ဒီဇိုင်းအတွက် သတ်မှတ်ထားသော အနိမ့်ဆုံးအပူချိန်၌ string Voc နှင့် Isc/current ကို MPPT တစ်ခုစီ၏ ကန့်သတ်ချက်များနှင့် စစ်ဆေးပါ။ Parallel string များမှ reverse current ကြောင့် လိုအပ်ပါက gPV fuse များ ထည့်ပါ။

PV protection selection: cold string voltage, MPPT current limits, reverse-current fuse assessment and DC isolation
ဒီဇိုင်းစစ်ဆေးမှု အယူအဆပြပုံ။ ပစ္စည်း rating များကို ပြည့်စုံသော array ဒီဇိုင်းအရ ရွေးရမည်။

အေးသောအခြေအနေ၌ ဗို့အား — cell အပူချိန်ကျလာသောအခါ module ၏ open-circuit voltage (Voc) သည် ယေဘုယျအားဖြင့် မြင့်လာသည်။ Series ချိတ်ထားသော module အရေအတွက်၊ module ၏ ဗို့အားအပူချိန် coefficient နှင့် ဒီဇိုင်းအနိမ့်ဆုံးအပူချိန်တို့ကို အသုံးပြု၍ string အများဆုံး Voc ကို တွက်ပါ။ Inverter အများဆုံး DC ဗို့အားနှင့် ကြိုး၊ connector၊ switch၊ protection ပစ္စည်းတို့၏ voltage rating များအတွင်း ရှိစေရမည်။

MPPT စစ်ဆေးမှု — cell အပူချိန်မြင့်ချိန်အပါအဝင် operating voltage သည် tracking range အတွင်း ရှိကြောင်း စစ်ပါ။ ထုတ်လုပ်သူ၏ သတ်မှတ်ချက်အတိုင်း MPPT နှင့် input တစ်ခုစီ၏ အများဆုံး operating input current နှင့် ခွင့်ပြုထားသော short-circuit input current နှစ်ခုလုံးကို စစ်ပါ။ Parallel string များက လျှပ်စီးကို ပေါင်းစေပြီး series module များက ဗို့အားကို ပေါင်းစေသည်။ သက်ဆိုင်ပါက bifacial gain အပါအဝင် module နှင့် တပ်ဆင်မှုအတွက် လိုအပ်သော ဒီဇိုင်း factor များကို ထည့်တွက်ပါ။

String fuse များ — fault ဖြစ်သော string ထဲသို့ ကောင်းမွန်သော parallel string များနှင့် အခြားရင်းမြစ်များမှ ပြန်လည်စီးဝင်နိုင်သော reverse current ကို သုံးသပ်ပါ။ Module ၏ ခွင့်ပြု reverse-current သို့မဟုတ် overcurrent protection ကန့်သတ်ချက်နှင့် ကြိုးခံနိုင်အားတို့နှင့် နှိုင်းယှဉ်ပါ။ လိုအပ်ပါက module နှင့် ကြိုးတို့နှင့် ညှိနှိုင်းထားသော၊ သင့်လျော်သည့် DC ဗို့အား၊ လျှပ်စီးနှင့် breaking capacity ရှိသော PV အတွက် gPV fuse များကို ရွေးပါ။ String အရေအတွက်တစ်ခုတည်းဖြင့် fuse လိုအပ်မှုကို မဆုံးဖြတ်ပါနှင့်။

Isolation — circuit အတွက် သင့်လျော်သော PV DC-rated switching ပစ္စည်းကို အသုံးပြုပြီး အတည်ပြုထားသော ဖြုတ်တောက်မှုအစီအစဉ်အတိုင်း လိုက်နာပါ။ Isolator ဖွင့်ထားခြင်းက နေ့အလင်းရောင်ရနေသော array သို့မဟုတ် ကြိုးအားလုံးကို ဓာတ်အားမရှိစေခြင်း မဟုတ်ပါ။ Load လျှပ်စီးစီးနေချိန် PV connector များကို မဖြုတ်ပါနှင့်။ Label၊ enclosure ကာကွယ်မှုနှင့် လုံခြုံသောဝင်ထွက်မှုကို အတည်ပြု၍ လွှဲပြောင်းမပေးမီ ဗို့အား၊ လျှပ်စီးနှင့် fuse စစ်ဆေးမှုများကို မှတ်တမ်းတင်ပါ။

DC ကာကွယ်ရေး လမ်းညွှန်ကို ဖတ်ရန်

PV string protection and isolation illustration showing voltage and current checks, gPV fuses and DC isolators
PV string ကာကွယ်ရေးနှင့် ဖြုတ်တောက်ခြင်း — အအေးချိန်အတွက် ပြင်ဆင်တွက်ထားသော Voc၊ MPPT လျှပ်စီးကန့်သတ်ချက်များ၊ လိုအပ်ပါက gPV fuse နှင့် PV-rated DC isolation။ ပုံအပြည့်ကြည့်ရန် ပုံကိုနှိပ်ပါ။

Wiring & connection

Use H1Z2Z2-K or PV1-F copper solar cable rated for the system voltage, weather and temperature. Route positive and negative conductors together.

PV positive and negative cables routed together with matched connectors, protected supports and suitable cable entries
Concept illustration. Cable ratings, sizes and connection details follow the approved design and equipment instructions.

Cable selection: check the actual cable datasheet for its PV application, DC voltage rating, conductor material, insulation temperature rating, UV and environmental suitability. A cable marking alone does not establish suitability for every installation. Size the conductor for design current after installation corrections, voltage drop and the applicable protection requirements.

Paired routing: keep the positive and negative conductors of the same circuit close together along the route to reduce loop area. Secure them with suitable UV-resistant supports, maintain the specified bend radius and keep them clear of sharp edges, hot surfaces, standing water and roof abrasion.

Connectors: use a manufacturer-approved mating pair and the specified cable size, seals and crimp tools. Do not mix connector brands simply because they fit together. Check insertion, locking, strain relief and polarity before connection, and do not unplug PV connectors while current is flowing.

At entries and terminations, use suitable glands and enclosures, protect the cable against movement and maintain the required separation from other circuits. Label each string and document its route and connections. Before handover, inspect the installation and complete the applicable electrical tests through qualified personnel.

Read the PV String DC Cable guide

PV solar cable ratings and paired positive and negative rooftop cable routing
PV wiring and connection: suitable copper solar cable, verified voltage and environmental ratings, and positive and negative conductors routed together. Select the image to view it at full size.

စနစ်ဗို့အား၊ ရာသီဥတုနှင့် အပူချိန်အတွက် သင့်လျော်စွာ သတ်မှတ်ထားသော H1Z2Z2-K သို့မဟုတ် PV1-F ကြေးနီဆိုလာကေဘယ်ကို အသုံးပြုပါ။ အပေါင်းနှင့် အနုတ်ကြိုးများကို အတူတကွ သွယ်တန်းပါ။

PV positive and negative cables routed together with matched connectors, protected supports and suitable cable entries
အယူအဆပြပုံ။ ကေဘယ် rating၊ အရွယ်အစားနှင့် ချိတ်ဆက်မှုကို အတည်ပြုဒီဇိုင်းနှင့် ပစ္စည်းလက်စွဲအတိုင်း သတ်မှတ်ပါ။

ကေဘယ်ရွေးချယ်ခြင်း — အမှန်တကယ်အသုံးပြုမည့် ကေဘယ် datasheet တွင် PV အသုံးချမှု၊ DC voltage rating၊ conductor ပစ္စည်း၊ insulation အပူချိန်သတ်မှတ်ချက်၊ UV နှင့် ပတ်ဝန်းကျင်ခံနိုင်မှုတို့ကို စစ်ပါ။ ကေဘယ်အမှတ်အသားတစ်ခုတည်းက တပ်ဆင်မှုအားလုံးအတွက် သင့်လျော်ကြောင်း မသတ်မှတ်နိုင်ပါ။ တပ်ဆင်မှုအလိုက် ပြင်ဆင်ထားသော design current၊ voltage drop နှင့် သက်ဆိုင်ရာ protection လိုအပ်ချက်တို့အရ conductor အရွယ်အစားကို ရွေးပါ။

တွဲသွယ်ခြင်း — loop ဧရိယာလျော့နည်းစေရန် circuit တစ်ခုတည်း၏ အပေါင်းနှင့် အနုတ်ကြိုးများကို လမ်းကြောင်းတစ်လျှောက် နီးကပ်စွာထားပါ။ သင့်လျော်သော UV ခံနိုင်သည့် support များဖြင့် ချည်ထားပြီး သတ်မှတ် bend radius ကို ထိန်းပါ။ ချွန်ထက်သောအစွန်း၊ ပူသောမျက်နှာပြင်၊ ရေတင်ကျန်နေမှုနှင့် အမိုးပွတ်တိုက်မှုတို့မှ ကင်းလွတ်စေပါ။

Connector များ — ထုတ်လုပ်သူအတည်ပြုထားသော အတွဲနှင့် သတ်မှတ်ကြိုးအရွယ်အစား၊ seal နှင့် crimp ကိရိယာများကို အသုံးပြုပါ။ ချိတ်ဆက်၍ရသည်ဆိုရုံဖြင့် မတူသော brand connector များကို မရောသုံးပါနှင့်။ ချိတ်ဆက်မီ အပြည့်ထည့်ထားမှု၊ lock၊ ကြိုးဆွဲအားကာကွယ်မှုနှင့် polarity ကို စစ်ပါ။ လျှပ်စီးစီးနေချိန် PV connector များကို မဖြုတ်ပါနှင့်။

ကြိုးဝင်ပေါက်နှင့် အဆုံးချိတ်ဆက်နေရာများတွင် သင့်လျော်သော gland နှင့် enclosure များကို အသုံးပြုပြီး ကြိုးလှုပ်ရှားမှုမှ ကာကွယ်ပါ။ အခြား circuit များနှင့် လိုအပ်သော ခွဲခြားမှုကို ထိန်းပါ။ String တစ်ခုစီကို အမှတ်အသားပြုပြီး လမ်းကြောင်းနှင့် ချိတ်ဆက်မှုများကို မှတ်တမ်းတင်ပါ။ လွှဲပြောင်းမပေးမီ တပ်ဆင်မှုကို စစ်ဆေး၍ အရည်အချင်းပြည့်မီသူများမှ သက်ဆိုင်ရာ လျှပ်စစ်စမ်းသပ်မှုများကို ပြီးစီးစေပါ။

PV String DC ကြိုးရွေးချယ်ခြင်း လမ်းညွှန်ကို ဖတ်ရန်

PV solar cable ratings and paired positive and negative rooftop cable routing
PV ကြိုးသွယ်ခြင်းနှင့် ချိတ်ဆက်ခြင်း — သင့်လျော်သော ကြေးနီဆိုလာကေဘယ်၊ အတည်ပြုထားသော ဗို့အားနှင့် ပတ်ဝန်းကျင်ခံနိုင်မှု၊ အပေါင်းနှင့် အနုတ်ကြိုးများကို အတူသွယ်တန်းခြင်း။ ပုံအပြည့်ကြည့်ရန် ပုံကိုနှိပ်ပါ။

Equipment & accessories — PV array DC

PV array DC equipment can include a string combiner where needed, gPV fuse holders, a DC-rated Type 2 SPD where appropriate, a lockable DC isolator, an enclosure, cable glands and warning labels. Select them as a coordinated assembly for the completed array design.

PV array DC accessories: combiner, gPV fuse holders, PV DC SPD, lockable isolator, enclosure, glands and warning labels
Selection overview; the design determines which devices and SPD type are required.

1. String combiner — where needed

String combiner and fuse holders: a combiner brings together strings where the inverter architecture and design require it. Check circuit layout, terminals, voltage, current and fault ratings.

2. gPV fuses and holders — where required

If string fuses are required by the reverse-current assessment, use suitable gPV fuses and compatible PV DC-rated holders; confirm their environmental and thermal limits.

3. PV DC surge protection

Surge protective device (SPD): use an SPD intended for PV DC circuits, with ratings and arrangement matched to the array and earthing design. Type 2 may be suitable for induced surges; lightning exposure and an external lightning-protection system can require Type 1 or combined Type 1+2 protection. Coordinate with the lightning study and manufacturer instructions, including backup protection and short, direct earth connections.

4. Lockable PV DC isolator

DC isolator: select PV-rated DC switching equipment for the maximum circuit voltage, current and required pole arrangement. Provide lockable isolation where specified and a clear operating label. AC switch ratings alone are insufficient. Opening the isolator does not remove daylight voltage from the array side.

5. Enclosure and sealed cable glands

Enclosure and glands: choose the environmental protection, UV resistance, temperature capability and internal space for the actual location. Use glands matched to cable diameter and enclosure requirements, provide strain relief and maintain seals. Keep the assembly accessible for inspection and protect it from water entry and excessive heat.

6. Warning labels at the PV array

Warning labels and handover: identify PV DC circuits, polarity, string numbers and isolation points with durable labels. Record equipment ratings and the as-built layout, and inspect fuse installation, SPD status, terminal tightening and isolation operation before handover. Module rails, clamps and frame-bonding hardware are covered separately in the mounting guide.

Read the DC Protection guide

Six PV DC equipment items: combiner, gPV fuse holders, SPD, lockable isolator, enclosure and glands, and warning labels
PV equipment and accessories overview: the six items described above. Select the image to view it at full size.

PV array DC ပစ္စည်းများတွင် လိုအပ်ပါက string combiner၊ gPV fuse holder၊ သင့်လျော်ပါက DC-rated Type 2 SPD၊ lock ပြုလုပ်နိုင်သော DC isolator၊ enclosure၊ cable gland နှင့် သတိပေး label များ ပါဝင်နိုင်သည်။ ပြည့်စုံသော array ဒီဇိုင်းအတွက် အပြန်အလှန်ကိုက်ညီသော အစုအဖွဲ့အဖြစ် ရွေးချယ်ပါ။

PV array DC accessories: combiner, gPV fuse holders, PV DC SPD, lockable isolator, enclosure, glands and warning labels
ရွေးချယ်မှုအကျဉ်းချုပ်။ လိုအပ်သောပစ္စည်းများနှင့် SPD အမျိုးအစားကို ဒီဇိုင်းက သတ်မှတ်သည်။

၁။ လိုအပ်သောနေရာ၌ String combiner

String combiner နှင့် fuse holder — inverter ဖွဲ့စည်းပုံနှင့် ဒီဇိုင်းအရ လိုအပ်သောအခါ combiner က string များကို စုစည်းပေးသည်။ Circuit layout၊ terminal၊ ဗို့အား၊ လျှပ်စီးနှင့် fault rating များကို စစ်ပါ။

၂။ လိုအပ်ပါက gPV fuse နှင့် holder

Reverse-current သုံးသပ်ချက်အရ string fuse လိုအပ်ပါက သင့်လျော်သော gPV fuse နှင့် ကိုက်ညီသော PV DC-rated holder ကို အသုံးပြုပြီး ပတ်ဝန်းကျင်နှင့် အပူချိန်ကန့်သတ်ချက်များကို အတည်ပြုပါ။

၃။ PV DC surge ကာကွယ်ရေး

Surge protective device (SPD) — PV DC circuit အတွက် ရည်ရွယ်ထားသော SPD ကို array နှင့် earthing ဒီဇိုင်းနှင့် ကိုက်ညီသည့် rating နှင့် ဖွဲ့စည်းပုံဖြင့် အသုံးပြုပါ။ Induced surge အတွက် Type 2 သင့်လျော်နိုင်သော်လည်း မိုးကြိုးထိတွေ့နိုင်မှုနှင့် ပြင်ပမိုးကြိုးကာကွယ်ရေးစနစ်ကြောင့် Type 1 သို့မဟုတ် ပေါင်းစပ် Type 1+2 လိုအပ်နိုင်သည်။ Backup protection နှင့် တို၍ တိုက်ရိုက်သော earth ဆက်သွယ်မှုအပါအဝင် မိုးကြိုးလေ့လာချက်နှင့် ထုတ်လုပ်သူလက်စွဲအတိုင်း ညှိနှိုင်းပါ။

၄။ Lock ပြုလုပ်နိုင်သော PV DC isolator

DC isolator — circuit အများဆုံးဗို့အား၊ လျှပ်စီးနှင့် လိုအပ်သော pole ဖွဲ့စည်းပုံအတွက် PV-rated DC switching ပစ္စည်းကို ရွေးပါ။ သတ်မှတ်ထားပါက lock ပြုလုပ်နိုင်သော isolation နှင့် ရှင်းလင်းသော လည်ပတ်မှု label ပေးထားပါ။ AC switch rating တစ်ခုတည်းသည် မလုံလောက်ပါ။ Isolator ဖွင့်ထားသော်လည်း array ဘက်တွင် နေ့အလင်းရောင်ကြောင့် ဖြစ်ပေါ်သော ဗို့အားကို မဖယ်ရှားနိုင်ပါ။

၅။ Enclosure နှင့် ရေလုံ cable gland

Enclosure နှင့် gland — အမှန်တကယ်နေရာအတွက် ပတ်ဝန်းကျင်ကာကွယ်မှု၊ UV ခံနိုင်မှု၊ အပူချိန်ခံနိုင်မှုနှင့် အတွင်းနေရာလုံလောက်မှုကို ရွေးပါ။ ကေဘယ်အပြင်အချင်းနှင့် enclosure လိုအပ်ချက်ကိုက်ညီသော gland အသုံးပြုပြီး ကြိုးဆွဲအားကာကွယ်မှုနှင့် seal များကို ထိန်းပါ။ စစ်ဆေးနိုင်သောနေရာတွင်ထား၍ ရေဝင်မှုနှင့် အပူလွန်ကဲမှုမှ ကာကွယ်ပါ။

၆။ PV array သတိပေး label များ

သတိပေး label နှင့် လွှဲပြောင်းခြင်း — PV DC circuit၊ polarity၊ string နံပါတ်နှင့် isolation နေရာများကို ကြာရှည်ခံ label များဖြင့် ဖော်ပြပါ။ ပစ္စည်း rating နှင့် အမှန်တကယ်တပ်ဆင်ထားသော layout ကို မှတ်တမ်းတင်ပြီး လွှဲပြောင်းမပေးမီ fuse တပ်ဆင်မှု၊ SPD အခြေအနေ၊ terminal တင်းကျပ်မှုနှင့် isolation လည်ပတ်မှုကို စစ်ပါ။ Module rail၊ clamp နှင့် frame-bonding ပစ္စည်းများကို mounting လမ်းညွှန်တွင် လေ့လာနိုင်သည်။

DC ကာကွယ်ရေး လမ်းညွှန်ကို ဖတ်ရန်

Six PV DC equipment items: combiner, gPV fuse holders, SPD, lockable isolator, enclosure and glands, and warning labels
အထက်တွင် ရှင်းပြထားသော PV ပစ္စည်းနှင့် ဆက်စပ်ပစ္စည်း ၆ မျိုး၏ အကျဉ်းချုပ်ပုံ။ ပုံအပြည့်ကြည့်ရန် ပုံကိုနှိပ်ပါ။

Solar panels — essential parameters

Solar panels: eight essential parameters, from rated power to certification and warranty

Read the exact model datasheet before comparing panel families. Watts alone do not establish inverter compatibility or installation suitability.

Rated power — Pmax / Wp

The panel’s maximum power at standard test conditions (STC): 1,000 W/m² irradiance, 25°C cell temperature and AM1.5 spectrum. At the maximum power point, Pmax = Vmp × Imp. This is a test rating, not a promise of constant real-world output.

Voltage and current — Vmp, Imp, Voc and Isc

Vmp and Imp describe operation at maximum power. Voc is open-circuit voltage; Isc is short-circuit current. Series connections add voltage; parallel strings add current. Check cold-corrected string Voc, hot operating voltage, operating current and short-circuit current against each inverter input limit.

Efficiency and cell technology

Module efficiency compares rated electrical power with sunlight incident on the whole module area at STC. Higher efficiency can help where roof area is limited. N-type TOPCon, HJT and back-contact describe cell designs; compare the exact model’s ratings and installation requirements.

Temperature coefficients and NMOT

Temperature coefficients show how power, voltage and current change with cell temperature. Power generally falls as cells heat up, while Voc rises in cold conditions. NMOT (nominal module operating temperature) is a reference under specified outdoor conditions, not the maximum permitted temperature.

Bifacial performance

Bifacial modules can collect light from the rear as well as the front. Rear contribution depends on ground reflectivity, mounting height, spacing and shade. Do not add a fixed gain to every project; confirm whether listed watts are front-side STC ratings or include a stated rear irradiance.

Electrical and protection limits

Maximum system voltage limits the permitted circuit voltage. Maximum series-fuse rating is an upper protection limit, not the fuse size to automatically select. Verify reverse-current protection, cable ratings, connectors and the manufacturer’s instructions for the actual array.

Size, weight and installation

Check length, width, thickness, weight, approved clamp zones, mounting orientation and specified mechanical load ratings. Match rails, clamps and roof structure to the exact module. Mechanical test loads alone do not establish a site’s allowable wind or snow design load.

Certification and warranty

IEC 61215 addresses module design qualification and type approval; IEC 61730 addresses safety qualification. Verify documentation for the exact model. Product warranty and power-performance warranty cover different matters; review exclusions, degradation terms and local claims support.

Solar panel datasheet: power, voltage, current, temperature, dimensions and protection limits
Generic learning illustration; use the actual model datasheet for design.

Manufacturer datasheet example · IEC 61215 · IEC 61730

ဆိုလာ panel ၏ သတ်မှတ်ဝပ်အားမှ အသိအမှတ်ပြုမှုနှင့် အာမခံအထိ အရေးကြီးသတ်မှတ်ချက် ရှစ်ခု

Panel အမျိုးအစားများ မနှိုင်းယှဉ်မီ မော်ဒယ်အတိအကျ၏ datasheet ကို ဖတ်ပါ။ ဝပ်အားတစ်ခုတည်းဖြင့် inverter နှင့် ကိုက်ညီမှု သို့မဟုတ် တပ်ဆင်သင့်လျော်မှုကို မဆုံးဖြတ်နိုင်ပါ။

သတ်မှတ်ဝပ်အား — Pmax / Wp

စံစမ်းသပ်အခြေအနေ (STC) ဖြစ်သော နေရောင်ပြင်းအား 1,000 W/m²၊ cell အပူချိန် 25°C နှင့် AM1.5 ရောင်ခြည်စဉ်အောက်ရှိ အများဆုံး power ဖြစ်သည်။ Maximum power point တွင် Pmax = Vmp × Imp ဖြစ်သည်။ ဤသည် စမ်းသပ်သတ်မှတ်ချက်ဖြစ်ပြီး လက်တွေ့တွင် အမြဲရရှိမည့် ဝပ်အား မဟုတ်ပါ။

ဗို့အားနှင့် လျှပ်စီး — Vmp၊ Imp၊ Voc နှင့် Isc

Vmp နှင့် Imp သည် အများဆုံး power ရရှိသည့်အချိန်၏ ဗို့အားနှင့် လျှပ်စီးဖြစ်သည်။ Voc သည် ပတ်လမ်းဖွင့်ထားချိန် ဗို့အား၊ Isc သည် short-circuit လျှပ်စီးဖြစ်သည်။ Series ချိတ်ဆက်လျှင် ဗို့အားပေါင်းပြီး parallel string များတွင် လျှပ်စီးပေါင်းသည်။ အအေးဆုံးအခြေအနေအတွက် ပြင်ဆင်တွက်ချက်ထားသော string Voc၊ ပူချိန်လည်ပတ်ဗို့အား၊ လည်ပတ်လျှပ်စီးနှင့် short-circuit လျှပ်စီးကို inverter input တစ်ခုစီ၏ ကန့်သတ်ချက်နှင့် စစ်ပါ။

ထိရောက်မှုနှင့် cell နည်းပညာ

Module efficiency သည် STC အောက်ရှိ panel တစ်ခုလုံး၏ ဧရိယာပေါ် ကျရောက်သော နေရောင်စွမ်းအားနှင့် ထုတ်ပေးသော လျှပ်စစ်စွမ်းအားကို နှိုင်းယှဉ်သည်။ အမိုးဧရိယာနည်းပါက ထိရောက်မှုမြင့်ခြင်းက အထောက်အကူဖြစ်နိုင်သည်။ N-type TOPCon၊ HJT နှင့် back-contact သည် cell ဖွဲ့စည်းပုံနည်းပညာများဖြစ်သည်။ မော်ဒယ်အတိအကျ၏ သတ်မှတ်ချက်နှင့် တပ်ဆင်လိုအပ်ချက်ကို နှိုင်းယှဉ်ပါ။

အပူချိန်ပြောင်းလဲမှုကိန်းနှင့် NMOT

Temperature coefficient သည် cell အပူချိန်ပြောင်းလဲသောအခါ power၊ ဗို့အားနှင့် လျှပ်စီး မည်မျှပြောင်းလဲသည်ကို ဖော်ပြသည်။ Cell ပူလာလျှင် power ယေဘုယျအားဖြင့် ကျပြီး အေးလာလျှင် Voc မြင့်လာသည်။ NMOT သည် သတ်မှတ်ပြင်ပအခြေအနေအောက်ရှိ ရည်ညွှန်းလည်ပတ်အပူချိန်ဖြစ်ပြီး ခွင့်ပြုထားသော အများဆုံးအပူချိန် မဟုတ်ပါ။

နှစ်ဖက်နေရောင်ခံ panel — Bifacial

Bifacial module သည် ရှေ့နှင့် နောက်ဘက်မှ အလင်းကို ရယူနိုင်သည်။ နောက်ဘက်ထုတ်လုပ်မှုသည် မြေပြင်အလင်းပြန်မှု၊ တပ်ဆင်အမြင့်၊ အကွာအဝေးနှင့် အရိပ်ပေါ် မူတည်သည်။ စီမံကိန်းတိုင်းအတွက် တိုးမြင့်နှုန်းတစ်ခုတည်း မထည့်ပါနှင့်။ ဖော်ပြဝပ်အားသည် ရှေ့ဘက် STC သတ်မှတ်ချက်လား၊ သတ်မှတ်နောက်ဘက်အလင်းပါဝင်သလား စစ်ပါ။

လျှပ်စစ်နှင့် ကာကွယ်ရေးကန့်သတ်ချက်

Maximum system voltage သည် ပတ်လမ်းတွင် ခွင့်ပြုသော ဗို့အားကန့်သတ်ချက်ဖြစ်သည်။ Maximum series-fuse rating သည် ကာကွယ်ရေးအပေါ်ကန့်သတ်ချက်ဖြစ်ပြီး အလိုအလျောက် ရွေးရမည့် fuse အရွယ် မဟုတ်ပါ။ လက်တွေ့ array အတွက် reverse-current ကာကွယ်မှု၊ ကြိုးသတ်မှတ်ချက်၊ connector နှင့် ထုတ်လုပ်သူညွှန်ကြားချက်များကို စစ်ပါ။

အရွယ်အစား၊ အလေးချိန်နှင့် တပ်ဆင်မှု

အလျား၊ အနံ၊ အထူ၊ အလေးချိန်၊ ခွင့်ပြု clamp နေရာ၊ တပ်ဆင်ဦးတည်ချက်နှင့် mechanical load သတ်မှတ်ချက်ကို စစ်ပါ။ Rail၊ clamp နှင့် အမိုးဖွဲ့စည်းပုံကို မော်ဒယ်အတိအကျနှင့် ကိုက်ညီအောင် ရွေးပါ။ Mechanical စမ်းသပ်ဝန်တန်ဖိုးတစ်ခုတည်းဖြင့် site ၏ လေတိုက်နှင့် နှင်းဝန်ဒီဇိုင်းကို မသတ်မှတ်နိုင်ပါ။

အသိအမှတ်ပြုမှုနှင့် အာမခံ

IEC 61215 သည် module ဒီဇိုင်းအရည်အသွေးနှင့် အမျိုးအစားစမ်းသပ်အတည်ပြုမှု၊ IEC 61730 သည် ဘေးကင်းရေးအရည်အသွေး အတည်ပြုမှုကို ကိုင်တွယ်သည်။ မော်ဒယ်အတိအကျ၏ စာရွက်စာတမ်းကို စစ်ပါ။ ပစ္စည်းအာမခံနှင့် power-performance အာမခံသည် မတူညီပါ။ ခြွင်းချက်၊ စွမ်းအားကျဆင်းမှုသတ်မှတ်ချက်နှင့် ဒေသတွင်း အာမခံဝန်ဆောင်မှုကို ဖတ်ပါ။

Solar panel datasheet: power, voltage, current, temperature, dimensions and protection limits
အထွေထွေ လေ့လာရေးပုံဖြစ်သည်။ ဒီဇိုင်းအတွက် မော်ဒယ်အတိအကျ၏ datasheet ကို သုံးပါ။

ထုတ်လုပ်သူ datasheet နမူနာ · IEC 61215 · IEC 61730

Inverters — essential parameters

Inverter essential parameters illustrated

AC output

Compare continuous kW, kVA, voltage, frequency, current and phase. Check motor-starting power and overload duration. Grid and backup ratings may differ.

PV voltage

Keep cold-corrected string Voc below maximum DC voltage. Check operating voltage within the MPPT range, start voltage and any full-power range.

MPPT and current

Check independent MPPT count, strings per tracker, operating-current and short-circuit-current limits. Parallel strings add current. Connector count does not establish independent tracker count.

PV capacity and efficiency

Follow permitted array power and DC/AC sizing guidance. Oversizing may cause clipping. Peak, weighted and MPPT efficiencies measure different aspects of performance.

Battery compatibility

Where supported, verify voltage, charging/discharging power and current, approved battery model, BMS protocol and firmware. Battery kWh describes energy, not output kW.

Operating modes and backup

Choose grid, off-grid or hybrid architecture. Battery-ready does not guarantee backup. Check transfer equipment, backup power, transfer time, phase imbalance, neutral/earthing, generator support and export controls.

Installation and protection

Check IP rating, temperature derating, altitude, cooling, clearances, noise, terminals and external protection. Verify safety and grid certificates for the exact model.

Monitoring and service

Review alarms, communications, local support, warranty and spare parts. Test every intended operating mode during commissioning using the manufacturer instructions.

Manufacturer datasheets and manuals · Inverter technical guide

Inverter essential parameters illustrated

AC output

ဆက်တိုက် kW၊ kVA၊ ဗို့အား၊ frequency၊ လျှပ်စီးနှင့် ဖေ့စ်ကို နှိုင်းယှဉ်ပါ။ မော်တာစတင်ဝန်နှင့် overload ကြာချိန်ကို စစ်ပါ။ Grid နှင့် backup သတ်မှတ်ချက် ကွဲနိုင်သည်။

PV ဗို့အား

အအေးအတွက် ပြင်ဆင်တွက်ထားသော string Voc ကို maximum DC voltage အောက် ထားပါ။ လည်ပတ်ဗို့အား၊ MPPT range၊ start voltage နှင့် full-power range ကို စစ်ပါ။

MPPT နှင့် လျှပ်စီး

သီးခြား MPPT အရေအတွက်၊ tracker တစ်ခုလျှင် string၊ operating-current နှင့် short-circuit-current ကန့်သတ်ချက်ကို စစ်ပါ။ Parallel string များတွင် လျှပ်စီးပေါင်းသည်။ Connector အရေအတွက်သည် သီးခြား tracker အရေအတွက် မဟုတ်ပါ။

PV ပမာဏနှင့် ထိရောက်မှု

ခွင့်ပြု array power နှင့် DC/AC sizing လမ်းညွှန်ကို လိုက်နာပါ။ Oversizing ကြောင့် output ကန့်သတ်မှု ဖြစ်နိုင်သည်။ Peak၊ weighted နှင့် MPPT efficiency တို့သည် မတူသော စွမ်းဆောင်ရည်တိုင်းတာချက်များ ဖြစ်သည်။

ဘက်ထရီကိုက်ညီမှု

ပံ့ပိုးသော မော်ဒယ်များတွင် ဗို့အား၊ charge/discharge power နှင့် လျှပ်စီး၊ အတည်ပြုဘက်ထရီမော်ဒယ်၊ BMS protocol နှင့် firmware ကို စစ်ပါ။ ဘက်ထရီ kWh သည် စွမ်းအင်ဖြစ်ပြီး output kW မဟုတ်ပါ။

လည်ပတ်ပုံနှင့် backup

Grid၊ off-grid သို့မဟုတ် hybrid စနစ်ကို ရွေးပါ။ Battery-ready ဖြစ်ခြင်းသည် backup ရနိုင်ကြောင်း အာမမခံပါ။ Transfer ပစ္စည်း၊ backup power၊ transfer time၊ phase မညီမျှမှု၊ neutral/earthing၊ မီးစက်ပံ့ပိုးမှုနှင့် export control ကို စစ်ပါ။

တပ်ဆင်မှုနှင့် ကာကွယ်ရေး

IP rating၊ အပူချိန်အလိုက် power လျော့ချမှု၊ အမြင့်၊ cooling၊ နေရာလွတ်၊ ဆူညံသံ၊ terminal နှင့် ပြင်ပကာကွယ်ရေးကို စစ်ပါ။ မော်ဒယ်အတိအကျ၏ safety နှင့် grid certificate ကို အတည်ပြုပါ။

စောင့်ကြည့်မှုနှင့် ဝန်ဆောင်မှု

Alarm၊ ဆက်သွယ်မှု၊ ဒေသတွင်းပံ့ပိုးမှု၊ အာမခံနှင့် အပိုပစ္စည်းကို သုံးသပ်ပါ။ ထုတ်လုပ်သူညွှန်ကြားချက်အရ ရည်ရွယ်သော လည်ပတ်ပုံတိုင်းကို commissioning တွင် စမ်းသပ်ပါ။

ထုတ်လုပ်သူ datasheet နှင့် manual များ · Inverter နည်းပညာလမ်းညွှန်

Batteries and energy storage — essential parameters

Battery and energy storage parameters: capacity, usable energy, power, runtime, compatibility and safety

Capacity — Ah and nominal voltage

Ampere-hours (Ah) measure electric charge, not energy. Compare Ah only at the same voltage and stated test conditions. Approximate nominal energy: kWh = nominal volts × Ah ÷ 1,000. Example: 51.2 V × 100 Ah = 5.12 kWh.

Usable energy — kWh, SOC and DoD

SOC is state of charge; DoD is depth of discharge. Use the manufacturer’s usable-energy rating or permitted SOC window. Nominal energy × allowed DoD estimates usable DC energy; do not apply DoD again to a rating already labelled usable. Reserve, temperature, ageing and conversion losses reduce delivered AC energy.

Power and current — kW, A and C-rate

Energy determines how long; power determines how much load can run at once. Check continuous and peak charge/discharge ratings and peak duration. Approximately kW = operating volts × amps ÷ 1,000. 1C on a 100 Ah battery means 100 A, but the manufacturer’s current limit still governs.

Backup runtime

Approximate runtime in hours = available AC energy in kWh ÷ average load in kW. Illustrative example: 5.12 × 0.8 × 0.9 ÷ 1 = 3.69 hours, assuming an 80% usable window and 90% DC-to-AC efficiency. This is not a product guarantee; allow for reserve, standby consumption and changing loads.

Chemistry, BMS and compatibility

Check chemistry, approved inverter/battery combination, voltage window, BMS communication and firmware. A BMS monitors cells and enforces limits; it does not replace required fuses or isolation. Follow explicit series/parallel and module-count rules; never assume batteries can be freely combined.

Life, efficiency and warranty

Compare cycle life at the stated DoD, temperature, rate and end-of-life capacity. Calendar ageing also matters. Round-trip efficiency includes charging and discharging losses and depends on the measurement boundary. Review years, energy-throughput limits, retained capacity and warranty exclusions.

Installation and safety evidence

Check charging/discharging temperature ranges, IP rating, weight, clearances, ventilation, cables, terminals, DC isolation and fault protection. Verify applicable safety evidence, such as IEC 62619 and IEC 63056 for relevant lithium systems, for the exact model. Follow manufacturer and local installation requirements.

Manufacturer battery specification example · Battery technical guide

Battery and energy storage parameters: capacity, usable energy, power, runtime, compatibility and safety

ပမာဏ — Ah နှင့် nominal ဗို့အား

Ampere-hour (Ah) သည် လျှပ်စစ် charge ပမာဏဖြစ်ပြီး စွမ်းအင်မဟုတ်ပါ။ ဗို့အားနှင့် စမ်းသပ်အခြေအနေတူမှ Ah ကို နှိုင်းယှဉ်ပါ။ ခန့်မှန်း nominal energy: kWh = nominal ဗို့အား × Ah ÷ 1,000 ဖြစ်သည်။ ဥပမာ 51.2 V × 100 Ah = 5.12 kWh ဖြစ်သည်။

အသုံးပြုနိုင်သော စွမ်းအင် — kWh၊ SOC နှင့် DoD

SOC သည် လက်ကျန် charge အခြေအနေ၊ DoD သည် ထုတ်သုံးထားသော အချိုးဖြစ်သည်။ ထုတ်လုပ်သူ၏ usable-energy သတ်မှတ်ချက် သို့မဟုတ် ခွင့်ပြု SOC အကွာအဝေးကို သုံးပါ။ Nominal energy × ခွင့်ပြု DoD သည် usable DC energy ခန့်မှန်းချက်ဖြစ်သည်။ Usable ဟု ဖော်ပြပြီးသော တန်ဖိုးကို DoD ထပ်မမြှောက်ပါနှင့်။ Reserve၊ အပူချိန်၊ သက်တမ်းကြာမှုနှင့် conversion loss ကြောင့် AC သို့ပေးနိုင်သော စွမ်းအင် လျော့သည်။

Power နှင့် လျှပ်စီး — kW၊ A နှင့် C-rate

စွမ်းအင်ပမာဏသည် ကြာချိန်ကို၊ power သည် တစ်ချိန်တည်း သုံးနိုင်သော ဝန်ကို သတ်မှတ်သည်။ ဆက်တိုက်နှင့် peak charge/discharge သတ်မှတ်ချက်၊ peak ကြာချိန်ကို စစ်ပါ။ ခန့်မှန်း kW = လည်ပတ်ဗို့အား × ampere ÷ 1,000 ဖြစ်သည်။ 100 Ah ဘက်ထရီတွင် 1C သည် 100 A ဖြစ်သော်လည်း ထုတ်လုပ်သူ၏ current limit ကို လိုက်နာရသည်။

Backup ကြာချိန်

ခန့်မှန်းကြာချိန် နာရီ = ရရှိနိုင်သော AC စွမ်းအင် kWh ÷ ပျမ်းမျှဝန် kW ဖြစ်သည်။ သရုပ်ပြဥပမာ 5.12 × 0.8 × 0.9 ÷ 1 = 3.69 နာရီဖြစ်ပြီး အသုံးပြုနိုင်သောအချိုး 80% နှင့် DC-to-AC efficiency 90% ဟု ယူဆထားသည်။ ပစ္စည်းအာမခံတန်ဖိုး မဟုတ်ပါ။ Reserve၊ standby သုံးစွဲမှုနှင့် ပြောင်းလဲသောဝန်များကို ထည့်တွက်ပါ။

Chemistry၊ BMS နှင့် ကိုက်ညီမှု

Chemistry၊ အတည်ပြု inverter/battery အတွဲ၊ ဗို့အားအကွာအဝေး၊ BMS ဆက်သွယ်မှုနှင့် firmware ကို စစ်ပါ။ BMS သည် cell များကို စောင့်ကြည့်ပြီး ကန့်သတ်ချက်ကို ထိန်းသည်။ လိုအပ်သော fuse သို့မဟုတ် isolation ကို အစားမထိုးပါ။ Series/parallel နှင့် module အရေအတွက်စည်းမျဉ်းကို လိုက်နာပါ။ ဘက်ထရီများကို လွတ်လပ်စွာ ပေါင်းချိတ်နိုင်သည်ဟု မယူဆပါနှင့်။

သက်တမ်း၊ ထိရောက်မှုနှင့် အာမခံ

သတ်မှတ် DoD၊ အပူချိန်၊ charge/discharge rate နှင့် သက်တမ်းကုန်အချိန် လက်ကျန်ပမာဏအရ cycle life ကို နှိုင်းယှဉ်ပါ။ အချိန်ကြာမှုကြောင့် ပျက်ယွင်းမှုလည်း ရှိသည်။ Round-trip efficiency တွင် charge/discharge loss ပါဝင်ပြီး တိုင်းတာသောစနစ်နယ်နိမိတ်ပေါ် မူတည်သည်။ အာမခံနှစ်၊ စုစုပေါင်းထုတ်သုံးစွမ်းအင်ကန့်သတ်ချက်၊ လက်ကျန်ပမာဏနှင့် ခြွင်းချက်ကို ဖတ်ပါ။

တပ်ဆင်မှုနှင့် ဘေးကင်းရေးအထောက်အထား

Charge/discharge အပူချိန်အကွာအဝေး၊ IP rating၊ အလေးချိန်၊ နေရာလွတ်၊ လေဝင်လေထွက်၊ ကြိုး၊ terminal၊ DC isolation နှင့် fault protection ကို စစ်ပါ။ သက်ဆိုင်ရာ lithium စနစ်များအတွက် IEC 62619 နှင့် IEC 63056 ကဲ့သို့ မော်ဒယ်အတိအကျ၏ safety evidence ကို အတည်ပြုပါ။ ထုတ်လုပ်သူနှင့် ဒေသတွင်း တပ်ဆင်လိုအပ်ချက်ကို လိုက်နာပါ။

ထုတ်လုပ်သူ ဘက်ထရီသတ်မှတ်ချက် နမူနာ · ဘက်ထရီနည်းပညာလမ်းညွှန်

Modern LiFePO₄ technology — inside the cell

Conceptual cutaway of a LiFePO4 cell showing electrodes, separator, electrolyte and current collectors
Concept illustration, not to scale. Construction varies by manufacturer.

What is LiFePO₄?

Lithium iron phosphate (LFP) is a rechargeable lithium-ion chemistry widely used for stationary storage. A typical cell has a nominal voltage around 3.2 V. Cells are assembled into modules and packs; the pack voltage and permitted configuration must match the inverter.

Inside the cell

The positive electrode uses LiFePO₄ and the negative electrode commonly uses graphite. Aluminium and copper current collectors connect the electrodes to the terminals. A porous separator prevents direct electrode contact while electrolyte allows lithium ions to move. During discharge, ions move from graphite toward the LFP electrode; electrons pass through the external load. Charging reverses these flows.

Usable depth of discharge

Many solar-storage products permit roughly 80–90% usable depth of discharge, but this is not a universal LFP limit. Use the exact model’s usable kWh, SOC window and warranty conditions. Reserve, temperature, ageing and inverter losses affect energy delivered to loads. Do not multiply an already-usable kWh rating by DoD again.

BMS and modern pack technology

Modern packs commonly include cell-voltage and temperature monitoring, balancing, SOC estimation and communication with compatible inverters. Some batteries require an external approved BMS. The BMS limits charging/discharging and may command disconnection; it does not replace correctly designed fuses, isolation or fault protection. Check communication protocol, firmware and the approved compatibility list.

Cycle life and maintenance

LFP often offers more cycles than lead-acid in comparable solar duty, but cycle life depends on DoD, temperature, charge/discharge rate and the retained-capacity threshold. Calendar ageing also matters. Sealed cells need no routine electrolyte topping. Continue inspecting connections, alarms, cooling and installation conditions according to the manual.

Select a complete system

Compare usable kWh and continuous/peak kW separately. Confirm charge-temperature limits, enclosure rating, clearance, cables and protection. LFP remains capable of hazardous fault currents and thermal events. Verify model-specific IEC 62619 safety evidence, applicable storage requirements and UN 38.3 transport evidence; transport testing alone does not prove installation suitability.

DOE: batteries · BMS design reference · Battery operation reference

Conceptual cutaway of a LiFePO4 cell showing electrodes, separator, electrolyte and current collectors
အယူအဆသရုပ်ပြပုံဖြစ်ပြီး အချိုးအစားအတိအကျ မဟုတ်ပါ။ ထုတ်လုပ်သူအလိုက် ဖွဲ့စည်းပုံကွဲနိုင်သည်။

LiFePO₄ ဆိုသည်မှာ

Lithium iron phosphate (LFP) သည် စွမ်းအင်သိုလှောင်ရေးတွင် အသုံးများသော အားပြန်သွင်းနိုင်သည့် lithium-ion chemistry ဖြစ်သည်။ ပုံမှန် cell တစ်ခု၏ nominal voltage သည် 3.2 V ဝန်းကျင်ဖြစ်သည်။ Cell များကို module နှင့် pack အဖြစ် ဖွဲ့စည်းပြီး pack ဗို့အားနှင့် ခွင့်ပြုချိတ်ဆက်ပုံသည် inverter နှင့် ကိုက်ညီရသည်။

Cell အတွင်းပိုင်း

အပေါင်း electrode တွင် LiFePO₄၊ အနုတ် electrode တွင် ပုံမှန်အားဖြင့် graphite ကို သုံးသည်။ Aluminium နှင့် copper current collector များက electrode ကို terminal နှင့် ချိတ်ပေးသည်။ Porous separator က electrode များ တိုက်ရိုက်ထိခြင်းကို တားပြီး electrolyte က lithium ion ရွေ့လျားနိုင်စေသည်။ အားထုတ်သုံးချိန် ion များသည် graphite မှ LFP electrode သို့ ရွေ့ပြီး electron များသည် ပြင်ပဝန်မှတစ်ဆင့် စီးသည်။ အားသွင်းချိန်တွင် ဦးတည်ချက် ပြောင်းပြန်ဖြစ်သည်။

အသုံးပြုနိုင်သော DoD

ဆိုလာသိုလှောင်ပစ္စည်းများစွာတွင် 80–90% ဝန်းကျင် DoD အသုံးပြုခွင့်ရှိသော်လည်း LFP အားလုံးအတွက် စည်းမျဉ်းတစ်ခုတည်း မဟုတ်ပါ။ မော်ဒယ်အတိအကျ၏ usable kWh၊ SOC အကွာအဝေးနှင့် အာမခံကို သုံးပါ။ Reserve၊ အပူချိန်၊ သက်တမ်းကြာမှုနှင့် inverter loss က ဝန်သို့ပေးနိုင်သော စွမ်းအင်ကို သက်ရောက်စေသည်။ Usable kWh တန်ဖိုးကို DoD ထပ်မမြှောက်ပါနှင့်။

BMS နှင့် ခေတ်မီ pack နည်းပညာ

ခေတ်မီ pack များတွင် cell ဗို့အားနှင့် အပူချိန်စောင့်ကြည့်မှု၊ balancing၊ SOC ခန့်မှန်းမှုနှင့် ကိုက်ညီ inverter ဆက်သွယ်မှု ပါလေ့ရှိသည်။ ဘက်ထရီအချို့တွင် ပြင်ပအတည်ပြု BMS လိုအပ်သည်။ BMS က charge/discharge ကို ကန့်သတ်ပြီး ဖြတ်တောက်ရန် အမိန့်ပေးနိုင်သည်။ သင့်လျော်သော fuse၊ isolation နှင့် fault protection ကို အစားမထိုးပါ။ Protocol၊ firmware နှင့် အတည်ပြု compatibility list ကို စစ်ပါ။

Cycle life နှင့် ထိန်းသိမ်းမှု

နှိုင်းယှဉ်နိုင်သော ဆိုလာအသုံးတွင် LFP သည် lead-acid ထက် cycle ပိုများနိုင်သော်လည်း DoD၊ အပူချိန်၊ charge/discharge rate နှင့် လက်ကျန်ပမာဏသတ်မှတ်ချက်ပေါ် မူတည်သည်။ အချိန်ကြာမှုကြောင့် ပျက်ယွင်းမှုလည်း ရှိသည်။ Sealed cell တွင် electrolyte ပုံမှန်ထပ်ဖြည့်ရန် မလိုပါ။ Manual အရ connection၊ alarm၊ cooling နှင့် တပ်ဆင်အခြေအနေကို ဆက်လက်စစ်ဆေးပါ။

စနစ်တစ်ခုလုံး ရွေးချယ်မှု

Usable kWh နှင့် continuous/peak kW ကို သီးခြားနှိုင်းယှဉ်ပါ။ အားသွင်းအပူချိန်ကန့်သတ်ချက်၊ enclosure rating၊ နေရာလွတ်၊ ကြိုးနှင့် ကာကွယ်ရေးကို အတည်ပြုပါ။ LFP တွင် အန္တရာယ်ရှိ fault current နှင့် အပူလွန်ဖြစ်ရပ် ဖြစ်နိုင်သည်။ မော်ဒယ်အလိုက် IEC 62619 safety evidence၊ သက်ဆိုင်ရာ storage လိုအပ်ချက်နှင့် UN 38.3 transport evidence ကို စစ်ပါ။ သယ်ယူပို့ဆောင်ရေးစမ်းသပ်ချက်တစ်ခုတည်းဖြင့် တပ်ဆင်သင့်လျော်မှု မသက်သေပြနိုင်ပါ။

DOE: batteries · BMS design reference · Battery operation reference

Flooded deep-cycle lead-acid — inside the battery

Flooded lead-acid battery cutaway with plates, separators, electrolyte, vents and ventilated containment
Concept illustration, not to scale. Ventilation must be designed for the actual installation.

When this special case fits

Lower initial cost can suit a basic off-grid or essential-load system when trained maintenance, safe space and replacement planning are available. Compare lifetime cost, usable energy and upkeep, not purchase price alone. Use a deep-cycle model rather than a starter battery.

Inside a flooded cell

Positive lead-dioxide plates and negative lead plates sit in sulfuric-acid-and-water electrolyte. Porous separators prevent direct plate contact while allowing ionic conduction. Discharge forms lead sulfate on both electrodes and reduces acid concentration; charging reverses the reaction. A lead-acid cell is nominally about 2 V. Vent caps allow charging gases to escape.

Capacity and usable energy

Check Ah at its stated discharge rate, temperature and end voltage. Approximate nominal kWh = nominal V × Ah ÷ 1,000. Faster discharge can reduce available capacity (Peukert effect). Permitted DoD and cycle life are model-specific; frequent deep discharge and prolonged partial charge can shorten life.

Ventilation and containment

Charging can release hydrogen and oxygen. Provide ventilation designed for the battery bank and charging conditions; a sealed cabinet is unsuitable. Keep batteries upright in acid-resistant containment, away from flames, sparks and ignition sources, with safe inspection access. Never install in living areas or escape routes. Follow local requirements and the battery manual.

Electrolyte-level checks

Use eye protection and acid-resistant gloves. Check levels at the manufacturer’s interval. For routine topping, use the specified distilled/deionized water, never add acid. Normally finish topping after full charging; if plates are exposed beforehand, add only enough water to cover them before charging, following the manual. Do not overfill.

Correct charging and corrosion control

Use the exact flooded-battery charge profile, current limits and temperature compensation. Equalize only when the manufacturer specifies the conditions; do not apply flooded equalization settings to AGM, gel or lithium batteries. Keep tops clean and dry, inspect corrosion and use specified terminal torque. Prevent cleaning solution from entering cells and record maintenance.

Protection and end of life

Provide correctly rated cables, DC fault protection and isolation. Match battery-bank configuration to the inverter and manufacturer instructions. Lead and acid require controlled handling: arrange collection by an authorized battery recycler and do not dispose of electrolyte into drains or soil.

Trojan: battery maintenance · Flooded battery care guide

Flooded lead-acid battery cutaway with plates, separators, electrolyte, vents and ventilated containment
အယူအဆပုံဖြစ်ပြီး အချိုးအစားအတိအကျ မဟုတ်ပါ။ လက်တွေ့တပ်ဆင်မှုအတွက် လေဝင်လေထွက် ဒီဇိုင်းလိုအပ်သည်။

သင့်လျော်သော အထူးအခြေအနေ

ကနဦးကုန်ကျစရိတ်နည်းခြင်းသည် ကျွမ်းကျင်ထိန်းသိမ်းမှု၊ လုံခြုံသောနေရာနှင့် အစားထိုးအစီအစဉ်ရှိသော basic off-grid သို့မဟုတ် အရေးကြီးဝန်စနစ်တွင် သင့်လျော်နိုင်သည်။ ဝယ်ဈေးတစ်ခုတည်းအစား သက်တမ်းတစ်လျှောက်ကုန်ကျစရိတ်၊ အသုံးပြုနိုင်သောစွမ်းအင်နှင့် ထိန်းသိမ်းမှုကို နှိုင်းယှဉ်ပါ။ Starter battery အစား deep-cycle model ကို သုံးပါ။

အရည်သုံး cell အတွင်းပိုင်း

အပေါင်း lead-dioxide plate နှင့် အနုတ် lead plate များသည် sulfuric acid နှင့် ရေပါ electrolyte အတွင်း ရှိသည်။ Porous separator က plate တိုက်ရိုက်ထိခြင်းကို တားပြီး ion စီးနိုင်စေသည်။ အားထုတ်သုံးချိန် electrode နှစ်ခုလုံးတွင် lead sulfate ဖြစ်လာပြီး acid ပြင်းအားလျော့သည်။ အားသွင်းချိန် ပြောင်းပြန်ဖြစ်သည်။ Lead-acid cell တစ်ခုသည် nominal 2 V ဝန်းကျင်ဖြစ်သည်။ Vent cap မှ အားသွင်းဓာတ်ငွေ့ ထွက်နိုင်သည်။

ပမာဏနှင့် အသုံးပြုနိုင်သောစွမ်းအင်

Ah ကို သတ်မှတ် discharge rate၊ အပူချိန်နှင့် end voltage အရ စစ်ပါ။ ခန့်မှန်း nominal kWh = nominal V × Ah ÷ 1,000 ဖြစ်သည်။ မြန်မြန်အားထုတ်သုံးလျှင် ရနိုင်သောပမာဏ လျော့နိုင်သည် (Peukert effect)။ ခွင့်ပြု DoD နှင့် cycle life သည် မော်ဒယ်အလိုက်ဖြစ်သည်။ မကြာခဏ အားနက်နက်ထုတ်သုံးခြင်းနှင့် အားမပြည့်ဘဲ ကြာရှည်ထားခြင်းက သက်တမ်းတိုစေနိုင်သည်။

လေဝင်လေထွက်နှင့် အရည်ထိန်းထားမှု

အားသွင်းချိန် hydrogen နှင့် oxygen ထွက်နိုင်သည်။ Battery bank နှင့် အားသွင်းအခြေအနေအတွက် ဒီဇိုင်းထားသော လေဝင်လေထွက် လိုအပ်သည်။ ပိတ်လုံ cabinet မသင့်ပါ။ ဘက်ထရီကို မတ်မတ်၊ acid ခံနိုင်သော အရည်ထိန်းနေရာတွင် ထားပြီး မီး၊ spark နှင့် မီးလောင်စေနိုင်သောရင်းမြစ်မှ ခွာပါ။ စစ်ဆေးဝင်ရောက်ရန် လုံခြုံသောနေရာထားပါ။ လူနေရာနှင့် ထွက်ပြေးလမ်းတွင် မတပ်ဆင်ပါနှင့်။ ဒေသစည်းမျဉ်းနှင့် manual ကို လိုက်နာပါ။

Electrolyte အဆင့်စစ်ဆေးမှု

မျက်စိကာနှင့် acid ခံနိုင်သောလက်အိတ်ကို သုံးပါ။ ထုတ်လုပ်သူသတ်မှတ်အချိန်အလိုက် အရည်အဆင့်စစ်ပါ။ ပုံမှန်ဖြည့်ခြင်းအတွက် သတ်မှတ် distilled/deionized water ကိုသာ သုံးပြီး acid မထည့်ပါနှင့်။ ပုံမှန်အားဖြင့် အားပြည့်သွင်းပြီးမှ နောက်ဆုံးအဆင့်ဖြည့်ပါ။ အားမသွင်းမီ plate ပေါ်နေပါက manual အရ plate ဖုံးရန် လုံလောက်ရုံ ရေအရင်ထည့်ပါ။ အလွန်အကျွံ မဖြည့်ပါနှင့်။

မှန်ကန်သောအားသွင်းမှုနှင့် ချေးတက်မှုထိန်းချုပ်ရေး

မော်ဒယ်အတိအကျ၏ flooded charge profile၊ current limit နှင့် temperature compensation ကို သုံးပါ။ ထုတ်လုပ်သူသတ်မှတ်အခြေအနေတွင်သာ equalization လုပ်ပါ။ Flooded equalization setting ကို AGM၊ gel သို့မဟုတ် lithium တွင် မသုံးပါနှင့်။ ဘက်ထရီအပေါ်ပိုင်းကို သန့်ရှင်းခြောက်သွေ့ထား၊ ချေးတက်မှုစစ်ပြီး သတ်မှတ် terminal torque ကို သုံးပါ။ သန့်ရှင်းရေးအရည် cell ထဲမဝင်စေဘဲ ထိန်းသိမ်းမှတ်တမ်းထားပါ။

ကာကွယ်ရေးနှင့် သက်တမ်းကုန်ချိန်

သင့်လျော်သောကြိုး၊ DC fault protection နှင့် isolation ကို ထည့်ပါ။ Battery bank ချိတ်ဆက်ပုံကို inverter နှင့် ထုတ်လုပ်သူညွှန်ကြားချက်နှင့် ကိုက်ညီစေပါ။ Lead နှင့် acid ကို စနစ်တကျ ကိုင်တွယ်ရသည်။ ခွင့်ပြု battery recycler ထံ အပ်ပြီး electrolyte ကို ရေမြောင်း သို့မဟုတ် မြေထဲ မစွန့်ပါနှင့်။

Trojan: battery maintenance · Flooded battery care guide

String protection — gPV fuse, combiner and SPD

Individual PV fuse and holder, string combiner and PV DC Type 2 SPD
Concept illustration, not an installation wiring diagram. A fuse clears excessive reverse current; it does not prevent all reverse-current flow.

Three devices, three roles

String protection is selected from the completed array design. A gPV fuse provides overcurrent protection, a combiner collects compatible parallel strings, and a PV SPD limits transient overvoltage. None replaces a correctly rated PV DC isolator.

1. gPV fuse and holder

A faulted string can receive reverse current from other parallel strings or another source. Determine whether this exceeds module and cable limits. Where protection is required, choose a gPV fuse and compatible holder for corrected string current, cold-corrected voltage, breaking capacity, temperature and module maximum series-fuse rating. A fuse clears excessive current; it does not block all reverse current like a diode. Do not use an AC-only fuse or treat an ordinary holder as a load-break switch.

2. String combiner

Use a combiner where the architecture requires several compatible strings to share an output. Verify input count, summed output current, DC voltage, busbars, terminals, thermal performance and enclosure rating. Combining inputs changes current at the receiving MPPT; preserve independently tracked arrays. Include fuses, isolation and surge protection only as required by the design, and provide sealed glands and clear polarity labels.

3. PV DC Type 2 SPD

A PV-rated Type 2 SPD limits transient surges; it is not an overcurrent fuse or lightning air terminal. Check Ucpv against maximum array voltage, protection level Up against equipment withstand, discharge ratings, PV short-circuit rating and required backup protection. Select the connection arrangement for the actual earthing system. Use short, direct connections according to the manufacturer and inspect status indicators. Lightning-current exposure may require Type 1 or Type 1+2 and coordinated AC/DC protection.

Selection and commissioning

Record cold-corrected Voc, string Isc and operating current, parallel-string count, possible reverse current, cable capacity and lightning assessment. Confirm exact device datasheets and manufacturer instructions. Verify polarity, terminal torque, enclosure seals, protection-earth continuity and SPD status before handover. PV conductors can remain live in daylight even when the inverter is off.

Eaton: PV circuit protection · DEHN: PV surge protection · DC protection guide

Individual PV fuse and holder, string combiner and PV DC Type 2 SPD
အယူအဆပုံဖြစ်ပြီး တပ်ဆင်ရေးကြိုးပုံ မဟုတ်ပါ။ Fuse က လွန်ကဲသော reverse current ကို ဖြတ်တောက်ပြီး reverse current အားလုံး စီးခြင်းကို မတားပါ။

ပစ္စည်းသုံးခု၏ သီးခြားတာဝန်

String ကာကွယ်ရေးကို ပြီးစီးသော array ဒီဇိုင်းအရ ရွေးသည်။ gPV fuse က overcurrent ကာကွယ်ပေး၊ combiner က ကိုက်ညီ parallel string များကို စုစည်းပြီး PV SPD က ခဏတာဗို့အားလွန်မှုကို ကန့်သတ်သည်။ သင့်လျော်သော PV DC isolator ကို မည်သည့်ပစ္စည်းကမျှ အစားမထိုးပါ။

၁။ gPV fuse နှင့် holder

Fault ဖြစ်သော string သို့ အခြား parallel string သို့မဟုတ် source မှ reverse current ဝင်နိုင်သည်။ Module နှင့် ကြိုးကန့်သတ်ချက်ကို ကျော်သလား စစ်ပါ။ ကာကွယ်ရေးလိုပါက ပြင်ဆင်တွက်ထားသော string current၊ အအေးအတွက် ဗို့အား၊ breaking capacity၊ အပူချိန်နှင့် module maximum series-fuse rating အရ gPV fuse နှင့် ကိုက်ညီ holder ကို ရွေးပါ။ Fuse သည် လွန်ကဲသောလျှပ်စီးကို ဖြတ်တောက်ခြင်းဖြစ်ပြီး diode ကဲ့သို့ reverse current အားလုံးကို မပိတ်ပါ။ AC-only fuse မသုံးပါနှင့်။ ပုံမှန် holder ကို load ဖြတ်ခလုတ်ဟု မယူဆပါနှင့်။

၂။ String combiner

စနစ်အရ ကိုက်ညီ string အများအပြားကို output တစ်ခုတွင် စုရန်လိုသောအခါ combiner သုံးပါ။ Input အရေအတွက်၊ စုစုပေါင်း output current၊ DC ဗို့အား၊ busbar၊ terminal၊ အပူစွမ်းဆောင်ရည်နှင့် enclosure rating ကို စစ်ပါ။ Input များပေါင်းခြင်းသည် MPPT သို့ဝင်သော current ကို ပြောင်းစေသည်။ သီးခြား tracker array များကို ထိန်းထားပါ။ ဒီဇိုင်းလိုအပ်ချက်အရ fuse၊ isolation နှင့် surge protection ထည့်ပြီး sealed gland နှင့် polarity label ထားပါ။

၃။ PV DC Type 2 SPD

PV-rated Type 2 SPD က ခဏတာ surge ကို ကန့်သတ်သည်။ Overcurrent fuse သို့မဟုတ် မိုးကြိုးလွှဲတံ မဟုတ်ပါ။ Ucpv ကို maximum array voltage နှင့်၊ protection level Up ကို ပစ္စည်းခံနိုင်အားနှင့် စစ်ပြီး discharge rating၊ PV short-circuit rating နှင့် backup protection လိုအပ်ချက်ကို စစ်ပါ။ လက်တွေ့ earthing အရ ချိတ်ဆက်ပုံရွေးပါ။ ထုတ်လုပ်သူအတိုင်း တို၍ တိုက်ရိုက်သော connection သုံးပြီး status indicator ကို စစ်ပါ။ Lightning current ရရှိနိုင်သောအခြေအနေတွင် Type 1 သို့မဟုတ် Type 1+2 နှင့် ညှိနှိုင်း AC/DC protection လိုနိုင်သည်။

ရွေးချယ်မှုနှင့် commissioning

အအေးအတွက် Voc၊ string Isc နှင့် operating current၊ parallel string အရေအတွက်၊ ဖြစ်နိုင်သော reverse current၊ ကြိုးခံနိုင်အားနှင့် မိုးကြိုးအကဲဖြတ်မှုကို မှတ်တမ်းတင်ပါ။ ပစ္စည်းအတိအကျ datasheet နှင့် ထုတ်လုပ်သူညွှန်ကြားချက်ကို အတည်ပြုပါ။ လွှဲပြောင်းမီ polarity၊ terminal torque၊ enclosure seal၊ protective-earth continuity နှင့် SPD status ကို စစ်ပါ။ Inverter ပိတ်ထားသော်လည်း နေ့အလင်းတွင် PV ကြိုး၌ လျှပ်စစ်ရှိနိုင်သည်။

Eaton: PV circuit protection · DEHN: PV surge protection · DC protection guide

DC isolation — PV isolator and battery fuse/breaker

Separate PV DC isolator, battery fuse and holder, and battery DC breaker
Functional illustration only. Device ratings and isolation suitability must be verified for the actual system.

Isolation and protection are different

Isolation separates equipment from its electrical sources. Overcurrent protection clears excessive current or faults. A switch-disconnector does not automatically provide overcurrent protection, and a fuse holder does not automatically provide safe switching under load. PV and battery circuits require separately selected devices.

1. PV DC isolator

Choose a PV-rated switch-disconnector with the required load-breaking and isolation capability. Verify cold-corrected maximum array voltage, design current, temperature derating, utilization category and exact pole arrangement. Follow the manufacturer’s wiring diagram; series poles, polarity and switching configuration cannot be guessed. Check lockability, enclosure rating, sealed entries and accessibility. An AC-only switch is unsuitable.

2. Battery fuse and holder

Battery fault current can be much higher than PV string current. Select a DC fuse and holder for maximum battery voltage, prospective fault current, interrupting capacity, cable protection and inverter/battery instructions. Coordinate its time-current response with continuous and surge demand. Place protection close to the source as the design requires, minimizing unprotected cable. A gPV string fuse is not automatically suitable for a battery. Do not remove an ordinary fuse under load.

3. Battery DC breaker or disconnect

For a breaker, check DC voltage, breaking capacity, trip characteristics, poles, polarity and charge/discharge current direction. Confirm bidirectional suitability where current reverses. It may serve as a disconnect only if its declared isolation and switching ratings permit. A separate battery switch may be needed; verify whether it can interrupt current under load. The BMS is not a substitute for required external fault protection and isolation.

Safe shutdown and verification

Use the exact system shutdown sequence. Identify PV, battery, grid, generator and other sources, isolate and lock out as applicable, allow specified capacitor discharge time and verify absence of voltage with suitable equipment. Switching off the inverter alone does not prove the circuit is dead. PV source-side conductors can remain live in daylight and battery terminals remain energized. Never unplug PV connectors under load.

Commissioning records

Record device ratings, cable sizes, protective-device coordination and the approved wiring arrangement. Check polarity, specified terminal torque, labels, seals, accessibility and disconnect operation according to the manual. Verify the intended PV and battery isolation boundaries before handover.

Victron: DC wiring and protection · Eaton: PV switch-disconnectors · DC protection guide

Separate PV DC isolator, battery fuse and holder, and battery DC breaker
လုပ်ဆောင်ပုံသရုပ်ပြပုံသာဖြစ်သည်။ လက်တွေ့စနစ်အတွက် rating နှင့် isolation suitability အတည်ပြုရသည်။

Isolation နှင့် ကာကွယ်ရေး မတူပါ

Isolation က ပစ္စည်းကို လျှပ်စစ်ရင်းမြစ်များမှ ခွဲထုတ်သည်။ Overcurrent protection က လွန်ကဲသောလျှပ်စီး သို့မဟုတ် fault ကို ဖြတ်တောက်သည်။ Switch-disconnector တွင် overcurrent ကာကွယ်မှု အလိုအလျောက်မပါသကဲ့သို့ fuse holder သည် load ရှိချိန် လုံခြုံစွာဖြတ်နိုင်သည်ဟု မဆိုလိုပါ။ PV နှင့် ဘက်ထရီပတ်လမ်းအတွက် ပစ္စည်းများ သီးခြားရွေးရသည်။

၁။ PV DC isolator

လိုအပ်သော load-breaking နှင့် isolation စွမ်းရည်ရှိ PV-rated switch-disconnector ကို ရွေးပါ။ အအေးအတွက် ပြင်ဆင်တွက်ထားသော maximum array voltage၊ design current၊ အပူချိန်အလိုက် လျော့ချမှု၊ utilization category နှင့် pole ပုံစံကို စစ်ပါ။ ထုတ်လုပ်သူ wiring diagram ကို လိုက်နာပါ။ Series pole၊ polarity နှင့် switching ပုံစံကို ခန့်မှန်းမချိတ်ပါနှင့်။ သော့ခတ်နိုင်မှု၊ enclosure rating၊ sealed entry နှင့် ဝင်ရောက်နိုင်မှုကို စစ်ပါ။ AC-only switch မသင့်ပါ။

၂။ ဘက်ထရီ fuse နှင့် holder

ဘက်ထရီ fault current သည် PV string current ထက် များစွာမြင့်နိုင်သည်။ Maximum battery voltage၊ ဖြစ်နိုင်သော fault current၊ interrupting capacity၊ ကြိုးကာကွယ်မှုနှင့် inverter/battery ညွှန်ကြားချက်အရ DC fuse နှင့် holder ရွေးပါ။ Time-current response ကို continuous နှင့် surge ဝန်နှင့် ညှိပါ။ ဒီဇိုင်းအရ source အနီး ကာကွယ်ရေးထားပြီး ကာကွယ်မှုမရှိကြိုးအရှည်ကို လျှော့ပါ။ gPV string fuse သည် ဘက်ထရီအတွက် အလိုအလျောက်မသင့်ပါ။ Load ရှိချိန် ပုံမှန် fuse ကို မဖြုတ်ပါနှင့်။

၃။ ဘက်ထရီ DC breaker သို့မဟုတ် disconnect

Breaker အတွက် DC voltage၊ breaking capacity၊ trip characteristic၊ pole၊ polarity နှင့် charge/discharge လျှပ်စီးဦးတည်ချက် စစ်ပါ။ လျှပ်စီးပြောင်းပြန်စီးနိုင်ပါက bidirectional suitability အတည်ပြုပါ။ သတ်မှတ် isolation နှင့် switching rating ခွင့်ပြုမှ disconnect အဖြစ် သုံးနိုင်သည်။ သီးခြား battery switch လိုနိုင်ပြီး load ရှိချိန် current ဖြတ်နိုင်သလား စစ်ပါ။ BMS က လိုအပ်သော ပြင်ပ fault protection နှင့် isolation ကို အစားမထိုးပါ။

လုံခြုံသောပိတ်ခြင်းနှင့် အတည်ပြုမှု

စနစ်အတိအကျ၏ shutdown အစီအစဉ်ကို သုံးပါ။ PV၊ ဘက်ထရီ၊ grid၊ မီးစက်နှင့် အခြား source များကို သတ်မှတ်၍ လိုအပ်သလို isolate နှင့် lockout လုပ်ပါ။ သတ်မှတ် capacitor discharge အချိန်စောင့်ပြီး သင့်လျော်သောကိရိယာဖြင့် ဗို့အားမရှိကြောင်း အတည်ပြုပါ။ Inverter ပိတ်ရုံဖြင့် ပတ်လမ်းလျှပ်စစ်မရှိကြောင်း မသက်သေပြနိုင်ပါ။ နေ့အလင်းတွင် PV source ဘက်ကြိုးနှင့် ဘက်ထရီ terminal တွင် လျှပ်စစ်ရှိနိုင်သည်။ Load ရှိချိန် PV connector ကို မဖြုတ်ပါနှင့်။

Commissioning မှတ်တမ်း

ပစ္စည်း rating၊ ကြိုးအရွယ်၊ protection coordination နှင့် အတည်ပြု wiring ပုံစံကို မှတ်တမ်းတင်ပါ။ Manual အရ polarity၊ terminal torque၊ label၊ seal၊ ဝင်ရောက်နိုင်မှုနှင့် disconnect လည်ပတ်မှု စစ်ပါ။ လွှဲပြောင်းမီ ရည်ရွယ်ထားသော PV နှင့် ဘက်ထရီ isolation နယ်နိမိတ်ကို အတည်ပြုပါ။

Victron: DC wiring and protection · Eaton: PV switch-disconnectors · DC protection guide

PV strings — cable and matched connectors

PV cable layers, matched connectors, supported routing and conceptual series/parallel connections
Concept illustration; follow exact cable, module and connector instructions.

What is a PV string?

A string is a series-connected group of modules. Series voltage adds while current is limited by the modules and operating conditions. Parallel compatible strings add current. Check cold-corrected Voc, hot operating voltage and each MPPT current limit before choosing the string arrangement.

PV cable ratings

Use documented PV-rated copper cable such as H1Z2Z2-K, or another approved cable meeting the applicable design requirements. Check DC voltage, conductor temperature, UV/weather resistance, insulation and installation suitability. A type marking alone does not establish direct-burial or permanent-immersion suitability; verify the exact datasheet.

Size for the actual route

Select cross-section from corrected current capacity, route length, voltage drop, installation method, grouping, ambient heat and fault protection. Include both conductors when calculating the DC circuit resistance. Confirm the selected cable size and outer diameter fit the connector contact and seal.

Matched connectors

Mate only connectors from the same manufacturer and an explicitly approved mating family. Similar appearance or an “MC4-compatible” label does not prove compatibility. Confirm voltage/current ratings, conductor size, cable diameter and environmental limits for the exact connector pair.

Assembly and routing

Follow the connector instructions, specified stripping length, approved tools and contact assembly method. Inspect crimps where used, seal/gland torque and full locking engagement. Keep contacts clean and dry. Route positive and negative together, support cables with suitable UV-rated hardware, protect sharp edges and avoid tension, roof contact and standing water. Respect bend radius and service access.

Verify before commissioning

Check polarity, string identification, voltage, insulation and connector engagement under the approved test procedure. Keep records of connector types and cable specifications. PV conductors can remain energized in daylight; connectors are not load-break switches and must never be unplugged under load.

Stäubli: connector mating guidance · LAPP: PV cable specifications · PV DC cable sizing guide

PV cable layers, matched connectors, supported routing and conceptual series/parallel connections
အယူအဆပုံဖြစ်သည်။ ကြိုး၊ module နှင့် connector အတိအကျ၏ ညွှန်ကြားချက်ကို လိုက်နာပါ။

PV string ဆိုသည်မှာ

String သည် module များကို series ချိတ်ထားသောအုပ်စုဖြစ်သည်။ Series တွင် ဗို့အားပေါင်းပြီး လျှပ်စီးသည် module နှင့် လည်ပတ်အခြေအနေအရ ကန့်သတ်သည်။ ကိုက်ညီ string များကို parallel ချိတ်လျှင် လျှပ်စီးပေါင်းသည်။ ချိတ်ဆက်ပုံမရွေးမီ အအေးအတွက် Voc၊ ပူချိန်လည်ပတ်ဗို့အားနှင့် MPPT တစ်ခုစီ၏ current limit ကို စစ်ပါ။

PV ကြိုးသတ်မှတ်ချက်

H1Z2Z2-K ကဲ့သို့ မှတ်တမ်းအထောက်အထားရှိ PV-rated copper cable သို့မဟုတ် သက်ဆိုင်ရာဒီဇိုင်းလိုအပ်ချက်နှင့် ကိုက်ညီ အတည်ပြုကြိုးကို သုံးပါ။ DC ဗို့အား၊ conductor အပူချိန်၊ UV/ရာသီဥတုခံနိုင်မှု၊ insulation နှင့် တပ်ဆင်သင့်လျော်မှုကို စစ်ပါ။ Type marking တစ်ခုတည်းက မြေထဲတိုက်ရိုက်မြှုပ်ခြင်း သို့မဟုတ် ရေထဲအမြဲထားခြင်းကို ခွင့်ပြုကြောင်း မသက်သေပြပါ။ Datasheet အတိအကျကို စစ်ပါ။

လက်တွေ့လမ်းကြောင်းအတွက် အရွယ်ရွေးခြင်း

ပြင်ဆင်တွက်ထားသော current capacity၊ ကြိုးလမ်းအရှည်၊ voltage drop၊ တပ်ဆင်နည်း၊ grouping၊ ပတ်ဝန်းကျင်အပူနှင့် fault protection အရ cross-section ရွေးပါ။ DC ပတ်လမ်း resistance တွက်ရာတွင် ကြိုးနှစ်ချောင်းလုံး ထည့်တွက်ပါ။ ရွေးထားသောကြိုးအရွယ်နှင့် အပြင်အချင်းသည် connector contact နှင့် seal တွင် ကိုက်ညီကြောင်း စစ်ပါ။

ကိုက်ညီ connector များ

ထုတ်လုပ်သူတူပြီး အတိအလင်း အတည်ပြုထားသော mating family connector များကိုသာ တွဲပါ။ ပုံတူခြင်း သို့မဟုတ် “MC4-compatible” label က ကိုက်ညီမှုကို မသက်သေပြပါ။ Connector အတွဲအတိအကျ၏ voltage/current rating၊ conductor အရွယ်၊ ကြိုးအချင်းနှင့် ပတ်ဝန်းကျင်ကန့်သတ်ချက်ကို စစ်ပါ။

တပ်ဆင်မှုနှင့် ကြိုးလမ်း

Connector ညွှန်ကြားချက်၊ သတ်မှတ် stripping length၊ အတည်ပြု tool နှင့် contact တပ်ဆင်နည်းကို လိုက်နာပါ။ Crimp သုံးပါက စစ်ပြီး seal/gland torque နှင့် lock အပြည့်ဝင်မှုကို အတည်ပြုပါ။ Contact ကို သန့်ရှင်းခြောက်သွေ့ထားပါ။ အပေါင်းနှင့်အနုတ်ကြိုးကို အတူလမ်းကြောင်းထား၊ UV-rated support သုံး၊ ချွန်ထက်အစွန်းကာပြီး တင်းအား၊ အမိုးထိခြင်းနှင့် ရေအိုင်ကို ရှောင်ပါ။ Bend radius နှင့် service access ကို လိုက်နာပါ။

Commissioning မတိုင်မီ အတည်ပြုမှု

အတည်ပြုစမ်းသပ်နည်းအရ polarity၊ string label၊ ဗို့အား၊ insulation နှင့် connector အပြည့်ချိတ်မှုကို စစ်ပါ။ Connector type နှင့် ကြိုးသတ်မှတ်ချက်မှတ်တမ်းထားပါ။ နေ့အလင်းတွင် PV ကြိုး၌ လျှပ်စစ်ရှိနိုင်သည်။ Connector သည် load-break switch မဟုတ်၍ load ရှိချိန် မဖြုတ်ပါနှင့်။

Stäubli: connector mating guidance · LAPP: PV cable specifications · PV DC cable sizing guide

Inverter + AC board — protection devices

Separate MCB/MCCB, RCCB, RCBO and AC Type 2 SPD devices
Functional illustration, not a wiring diagram. Source interfaces and device arrangements vary by system.

Protection for every operating mode

Coordinate the AC board with the inverter, cables, grid, generator and backed-up loads. Available fault current and neutral–earth arrangements can change between modes. An inverter may limit fault current, so a breaker that works on grid supply may not trip fast enough in island mode. Verify the completed protection design.

1. MCB and MCCB

MCBs and MCCBs provide overload and short-circuit protection. Check rated current, trip curve or settings, voltage, poles and breaking capacity against the prospective fault current. Coordinate with corrected cable capacity and inverter output. MCCBs may offer adjustable trips, depending on the model. Current rating alone does not establish fault capability or selectivity.

2. RCD / RCCB

An RCD detects residual-current imbalance; an RCCB does not provide overload protection by itself. Select placement, sensitivity, delay and waveform type from local requirements, earthing and inverter instructions. Type A, F and B respond to different residual-current waveforms. Do not assume Type AC is suitable or that every inverter requires the same type. Internal inverter monitoring does not automatically replace a required external RCD.

3. RCBO

An RCBO combines residual-current and overcurrent protection for its circuit. Check both sets of ratings: residual-current type and sensitivity, plus current rating, trip characteristics and breaking capacity. Confirm supply/load direction and suitability for inverter backfeed where applicable. Keep each circuit’s neutral within the intended protective arrangement.

4. AC Type 2 SPD

An AC Type 2 SPD limits transient overvoltage; it does not replace breakers, RCDs or lightning protection. Select voltage rating Uc, protection level Up, discharge ratings and connection arrangement for the supply and earthing system. Follow backup-fuse requirements and keep connections short and direct. Lightning-current exposure may require Type 1 or Type 1+2, with coordinated AC/DC devices. Check status indicators and replacement instructions.

Board layout, neutral and earthing

Verify busbar and enclosure ratings, clearances, isolation, terminal torque, labels and protective-earth continuity. Define neutral switching and bonding for grid, backup and generator modes. Do not add arbitrary neutral–earth links or switch protective earth. The illustration is functional only; not every inverter supports the shown source interfaces.

Commissioning and handover

Test protection and system behavior in every intended mode. Include applicable fault-loop/disconnection verification, instrumented RCD tests, polarity, insulation and earthing checks. The RCD test button alone does not prove the entire protective design. Record settings, test results, shutdown instructions and maintenance requirements.

Eaton: RCBO functions · Schneider: RCD waveform types · AC protection guide

Separate MCB/MCCB, RCCB, RCBO and AC Type 2 SPD devices
လုပ်ဆောင်ပုံသရုပ်ပြပုံဖြစ်ပြီး wiring diagram မဟုတ်ပါ။ Source interface နှင့် device ပုံစံသည် စနစ်အလိုက် ကွဲသည်။

လည်ပတ်ပုံတိုင်းအတွက် ကာကွယ်ရေး

AC board ကို inverter၊ ကြိုး၊ grid၊ မီးစက်နှင့် backup ဝန်နှင့် ညှိပါ။ Mode ပြောင်းလျှင် fault current နှင့် neutral–earth ပုံစံ ပြောင်းနိုင်သည်။ Inverter က fault current ကန့်သတ်နိုင်၍ grid တွင် အလုပ်လုပ်သော breaker သည် island mode တွင် အချိန်မီ မဖြတ်နိုင်ပါ။ ပြီးစီးသော protection ဒီဇိုင်းကို အတည်ပြုပါ။

၁။ MCB နှင့် MCCB

MCB နှင့် MCCB က overload နှင့် short-circuit ကာကွယ်ပေးသည်။ Rated current၊ trip curve သို့မဟုတ် setting၊ ဗို့အား၊ pole နှင့် breaking capacity ကို ဖြစ်နိုင်သော fault current နှင့် စစ်ပါ။ ပြင်ဆင်တွက်ထားသော ကြိုးခံနိုင်အားနှင့် inverter output ကို ညှိပါ။ မော်ဒယ်အလိုက် MCCB တွင် trip ချိန်ညှိနိုင်သည်။ Current rating တစ်ခုတည်းဖြင့် fault ခံနိုင်မှုနှင့် selectivity ကို မသတ်မှတ်နိုင်ပါ။

၂။ RCD / RCCB

RCD သည် residual-current မညီမျှမှုကို စစ်သည်။ RCCB တစ်ခုတည်းတွင် overload ကာကွယ်မှု မပါပါ။ ဒေသစည်းမျဉ်း၊ earthing နှင့် inverter ညွှန်ကြားချက်အရ နေရာ၊ sensitivity၊ delay နှင့် waveform type ကို ရွေးပါ။ Type A၊ F နှင့် B သည် မတူသော residual-current waveform များကို တုံ့ပြန်သည်။ Type AC သင့်သည်ဟု သို့မဟုတ် inverter အားလုံး type တူလိုသည်ဟု မယူဆပါနှင့်။ Inverter အတွင်း monitoring က လိုအပ်သော ပြင်ပ RCD ကို အလိုအလျောက် အစားမထိုးပါ။

၃။ RCBO

RCBO သည် ပတ်လမ်းတစ်ခုအတွက် residual-current နှင့် overcurrent ကာကွယ်မှု ပေါင်းထားသည်။ Residual-current type နှင့် sensitivity အပြင် current rating၊ trip characteristic နှင့် breaking capacity ကို စစ်ပါ။ သက်ဆိုင်ပါက supply/load ဦးတည်ချက်နှင့် inverter backfeed သင့်လျော်မှု အတည်ပြုပါ။ Circuit တစ်ခုစီ၏ neutral ကို ရည်ရွယ်ထားသော protection ပုံစံအတွင်း ထားပါ။

၄။ AC Type 2 SPD

AC Type 2 SPD က ခဏတာဗို့အားလွန်မှုကို ကန့်သတ်ပြီး breaker၊ RCD သို့မဟုတ် မိုးကြိုးကာကွယ်ရေးကို အစားမထိုးပါ။ Supply နှင့် earthing အတွက် voltage rating Uc၊ protection level Up၊ discharge rating နှင့် connection ပုံစံရွေးပါ။ Backup-fuse လိုအပ်ချက်ကို လိုက်နာပြီး connection ကို တို၍ တိုက်ရိုက်ထားပါ။ Lightning current ရှိနိုင်ပါက Type 1 သို့မဟုတ် Type 1+2 နှင့် ညှိနှိုင်း AC/DC device လိုနိုင်သည်။ Status indicator နှင့် replacement ညွှန်ကြားချက် စစ်ပါ။

Board၊ neutral နှင့် earthing

Busbar နှင့် enclosure rating၊ နေရာလွတ်၊ isolation၊ terminal torque၊ label နှင့် protective-earth continuity စစ်ပါ။ Grid၊ backup နှင့် မီးစက် mode အတွက် neutral switching နှင့် bonding ကို သတ်မှတ်ပါ။ Neutral–earth link ကို မိမိသဘော မထည့်ပါနှင့်၊ protective earth ကို မဖြတ်ပါနှင့်။ ပုံသည် လုပ်ဆောင်ပုံသာဖြစ်ပြီး inverter တိုင်း ဖော်ပြ source interface ကို မပံ့ပိုးပါ။

Commissioning နှင့် လွှဲပြောင်းမှု

ရည်ရွယ် mode တိုင်းတွင် protection နှင့် စနစ်လည်ပတ်မှု စမ်းသပ်ပါ။ သက်ဆိုင်ရာ fault-loop/disconnection အတည်ပြုမှု၊ ကိရိယာဖြင့် RCD စမ်းသပ်မှု၊ polarity၊ insulation နှင့် earthing စစ်မှု ထည့်ပါ။ RCD test button တစ်ခုတည်းဖြင့် protection ဒီဇိုင်းတစ်ခုလုံးကို မသက်သေပြနိုင်ပါ။ Setting၊ test result၊ shutdown နှင့် maintenance လိုအပ်ချက် မှတ်တမ်းထားပါ။

Eaton: RCBO functions · Schneider: RCD waveform types · AC protection guide

Loads / grid — meter, ATS and emergency labels

Energy meter and CT, transfer equipment and emergency labels with a conceptual essential-load arrangement
Functional concept, not a wiring diagram. The transfer arrangement and labels must match the actual installation.

Plan the loads and source boundaries

Separate essential and non-essential circuits according to measured demand, starting loads and backup runtime. Document which sources can energize each board. Metering, transfer switching and labels support different functions and must match the approved system architecture.

1. Energy meter and CT

A meter measures instantaneous power in kW and accumulated energy in kWh. A compatible control meter may provide import/export data to the inverter; it is not necessarily the utility billing meter. Select phase count, direct-connected or CT input, ratings, accuracy and communication protocol. Verify CT direction, ratio, phase mapping and meter location using a known load. Export limiting depends on the complete control system, not the meter alone.

2. ATS or manual changeover

An automatic transfer switch selects an available approved source using its controller; a manual changeover requires operator action. Use interlocked equipment with the required voltage, current, poles and fault withstand/conditional rating. Open-transition transfer normally disconnects one source before connecting the other. Closed-transition paralleling requires dedicated engineering and authorization. An ATS does not automatically synchronize sources or provide overload protection.

Neutral, earthing and backfeed

Define neutral switching, bonding and RCD behavior for grid, inverter and generator operation. Pole count follows the earthing and source design, not a universal rule. Never switch protective earth. Prevent unintended backfeed to the grid or generator. Some inverters have internal transfer functions; verify whether an external ATS is needed and compatible.

3. Emergency and circuit labels

Provide durable, visible labels identifying multiple supplies, PV DC live in daylight, battery isolation, main switches, backup circuits and emergency shutdown instructions as applicable. Use the required local wording and locations, with understandable English/Myanmar instructions for users. Labels must match actual isolation points and the as-built diagram; an emergency-stop command does not guarantee all terminals are de-energized.

Commissioning and handover

Test source failure, transfer, restoration and manual operation in the intended modes. Confirm essential-load operation, neutral/earthing behavior, protective-device operation and metering import/export direction. Test export-control behavior and communication-loss response where required. Record settings and results, and train users in shutdown and restart using the installed labels and manuals.

Eaton: transfer switch fundamentals · Victron: energy metering · Grid / generator integration guide

Energy meter and CT, transfer equipment and emergency labels with a conceptual essential-load arrangement
လုပ်ဆောင်ပုံအယူအဆဖြစ်ပြီး wiring diagram မဟုတ်ပါ။ Transfer ပုံစံနှင့် label သည် လက်တွေ့တပ်ဆင်မှုနှင့် ကိုက်ညီရသည်။

ဝန်နှင့် source နယ်နိမိတ် စီမံခြင်း

တိုင်းတာဝန်၊ စတင်ဝန်နှင့် backup ကြာချိန်အရ essential နှင့် non-essential circuit ခွဲပါ။ Board တစ်ခုစီကို မည်သည့် source က လျှပ်စစ်ပေးနိုင်ကြောင်း မှတ်တမ်းတင်ပါ။ Meter၊ transfer switching နှင့် label သည် မတူသောလုပ်ဆောင်ချက်ရှိပြီး အတည်ပြုစနစ်ပုံစံနှင့် ကိုက်ညီရသည်။

၁။ Energy meter နှင့် CT

Meter က ချက်ချင်း power kW နှင့် စုစုပေါင်းစွမ်းအင် kWh ကို တိုင်းသည်။ ကိုက်ညီ control meter က inverter သို့ import/export data ပေးနိုင်ပြီး utility billing meter နှင့် မတူနိုင်ပါ။ ဖေ့စ်အရေအတွက်၊ direct သို့မဟုတ် CT input၊ rating၊ accuracy နှင့် protocol ကို ရွေးပါ။ သိရှိသောဝန်ဖြင့် CT ဦးတည်ချက်၊ ratio၊ phase mapping နှင့် meter နေရာကို စစ်ပါ။ Export limit သည် meter တစ်ခုတည်းမဟုတ်ဘဲ control စနစ်တစ်ခုလုံးပေါ် မူတည်သည်။

၂။ ATS သို့မဟုတ် manual changeover

ATS သည် controller ဖြင့် ရရှိနိုင်သော အတည်ပြု source ကို ရွေးပြီး manual changeover တွင် လူက ပြောင်းရသည်။ လိုအပ်သော voltage၊ current၊ pole နှင့် fault withstand/conditional rating ရှိ interlocked ပစ္စည်းသုံးပါ။ Open-transition သည် ပုံမှန်အားဖြင့် source တစ်ခုဖြုတ်ပြီးမှ အခြားတစ်ခုချိတ်သည်။ Closed-transition parallel အတွက် သီးခြား engineering နှင့် ခွင့်ပြုချက်လိုသည်။ ATS သည် source များကို အလိုအလျောက် synchronize လုပ်ခြင်း သို့မဟုတ် overload protection ပေးခြင်း မဟုတ်ပါ။

Neutral၊ earthing နှင့် backfeed

Grid၊ inverter နှင့် မီးစက်လည်ပတ်မှုအတွက် neutral switching၊ bonding နှင့် RCD လုပ်ဆောင်မှု သတ်မှတ်ပါ။ Pole အရေအတွက်သည် earthing နှင့် source ဒီဇိုင်းအရဖြစ်ပြီး စည်းမျဉ်းတစ်ခုတည်း မရှိပါ။ Protective earth ကို မဖြတ်ပါနှင့်။ Grid သို့မဟုတ် မီးစက်သို့ မရည်ရွယ် backfeed မဖြစ်စေပါနှင့်။ Inverter အချို့တွင် internal transfer ပါသဖြင့် ပြင်ပ ATS လိုသလား၊ ကိုက်ညီသလား စစ်ပါ။

၃။ Emergency နှင့် circuit label

သက်ဆိုင်သလို multiple supply၊ နေ့အလင်းတွင် PV DC လျှပ်စစ်ရှိမှု၊ battery isolation၊ main switch၊ backup circuit နှင့် emergency shutdown ညွှန်ကြားချက်ကို ခိုင်ခံ့မြင်သာသော label ဖြင့် ဖော်ပြပါ။ ဒေသလိုအပ်စာသားနှင့် နေရာအတိုင်းထားပြီး အသုံးပြုသူနားလည်သော English/Myanmar ညွှန်ကြားချက်ပေးပါ။ Label သည် လက်တွေ့ isolation နေရာနှင့် as-built ပုံနှင့် ကိုက်ညီရသည်။ Emergency-stop အမိန့်တစ်ခုတည်းဖြင့် terminal အားလုံး လျှပ်စစ်မရှိကြောင်း အာမမခံပါ။

Commissioning နှင့် လွှဲပြောင်းမှု

ရည်ရွယ် mode များတွင် source ပျက်မှု၊ transfer၊ ပြန်ရမှုနှင့် manual လည်ပတ်မှု စမ်းသပ်ပါ။ Essential load၊ neutral/earthing၊ protection နှင့် meter import/export ဦးတည်ချက်ကို အတည်ပြုပါ။ လိုအပ်ပါက export control နှင့် communication ပျက်ချိန် တုံ့ပြန်မှု စမ်းသပ်ပါ။ Setting နှင့် result မှတ်တမ်းတင်ပြီး တပ်ဆင် label နှင့် manual အရ shutdown/restart ကို အသုံးပြုသူအား သင်ပေးပါ။

Eaton: transfer switch fundamentals · Victron: energy metering · Grid / generator integration guide

Residential solar

Residential solar installation illustration

Residential Solar Installation: Design Around the Home

A residential solar system should fit the way a household uses electricity. The goal might be to reduce daytime grid use, keep essential circuits running during outages, or support most of the home. Those goals lead to different equipment and system sizes.

Residential PV systems commonly fall within the 3–20 kWp planning range. These are examples rather than fixed boundaries: roof space, sunlight, household demand and backup needs all affect the design.

Start with the household’s loads

Before choosing panels or batteries, list the appliances the home uses and when they operate. A monthly electricity bill shows total consumption, while an appliance schedule helps reveal the times of day when demand is highest.

Load groupCommon household loadsWhat to consider
EssentialLights, fans, refrigerator, Wi-Fi router, phone charging, televisionOften suitable for a dedicated backup circuit
ComfortAir conditioners, water pumps, washing machines, microwavesCheck how long they run and whether several may operate together
High demandElectric water heaters, induction cookers, kettles, ovens, EV chargersThese can increase peak demand and use stored energy quickly

Cooling can account for a large share of a home’s energy use, especially when air conditioners run for many hours. Pumps and compressor-based appliances may also have starting demands that affect inverter selection. Use appliance nameplates and real operating habits where possible.

Choose the system arrangement

A grid-connected system supplies solar power to the home while the grid is available. It can suit households focused on using solar energy during the day.

A hybrid system combines solar panels, the grid and a battery through equipment designed to manage those sources. It can store surplus solar energy for later use and support selected circuits during an outage.

An off-grid system is designed for a home without dependable grid supply. It needs careful planning for nighttime use, low-sun periods and backup generation where required.

A standard grid-connected solar system generally shuts down when grid power fails. To keep solar power available during an outage, the system needs a suitable backup-capable inverter, storage and an arrangement that safely separates the home from the failed grid supply. A battery system can back up selected circuits or a larger portion of the home, depending on its design and capacity.

Match the inverter to the demand

The inverter converts the panels’ DC electricity into AC electricity used by household appliances. Its kW rating describes how much power it can provide at a moment. Choose it to suit the home’s expected simultaneous loads, including any starting demand from motors or compressors.

For a hybrid system, check that the inverter is compatible with the battery and can provide the required charging, discharging and backup functions. The design also needs to match the home’s supply arrangement and electrical panel.

Size the battery for the backup plan

Battery capacity is measured in kWh. It describes stored energy. The battery’s power rating, measured in kW, describes how much power it can deliver at once. Both matter: the home needs enough battery energy for the planned backup duration and enough discharge power for the appliances running together.

LiFePO₄ batteries are one option for residential storage. Check the battery’s usable capacity, inverter compatibility, battery-management communication and installation requirements. Usable energy can be lower than the nameplate capacity, and some energy is lost during charging and discharge.

For a simple illustration, if the chosen backup appliances average 1.2 kW for five hours, they would use about 6 kWh of delivered energy before allowing for system losses and reserve. The inverter would still need to handle the appliances’ simultaneous power demand. This example explains the calculation; it is not a recommended system size.

Check the roof and installation

A site survey should check roof condition, structure, shade, mounting space, cable routes and maintenance access. The PV array’s production varies with sunlight, season, clouds, dust and shading, so local site conditions matter.

The installation design should also address the electrical panel, isolation and protection, earthing, battery location and safe working clearances. Confirm applicable utility and authority requirements before connecting a system to the grid. Use appropriately trained installers and follow the equipment manufacturers’ installation instructions.

A practical design sequence

  1. Review electricity bills and record the household’s main appliances and operating hours.
  2. Decide which circuits should run during an outage and for how long.
  3. Survey the roof, shading, electrical panel and installation space.
  4. Choose grid-connected, hybrid or off-grid operation.
  5. Size the PV array, inverter and battery around the household load profile and local solar conditions.
  6. Commission the system and test its operating modes, monitoring and backup circuits.

The best residential design begins with clear answers about what the home uses, what must stay on, and how long it must run. From there, the panels, inverter, battery and protection equipment can be selected as one coordinated system.

PV arrayInverterSite distributionHome loads
Grid / generator connection · Optional battery storage
Concept diagram. Backup requires suitable isolation and transfer equipment; protection and earthing are omitted for clarity.

အိမ်သုံး ဆိုလာတပ်ဆင်ခြင်း — အိမ်၏လိုအပ်ချက်အလိုက် ဒီဇိုင်းရေးဆွဲပါ

အိမ်သုံးဆိုလာစနစ်သည် မိသားစု၏ လျှပ်စစ်သုံးစွဲပုံနှင့် ကိုက်ညီရမည်။ ရည်ရွယ်ချက်မှာ နေ့ခင်း grid ဓာတ်အားသုံးစွဲမှု လျှော့ချရန်၊ မီးပျက်ချိန် မရှိမဖြစ် circuit များကို ဆက်လက်အသုံးပြုရန် သို့မဟုတ် အိမ်၏ဝန်အများစုကို ပေးသွင်းရန် ဖြစ်နိုင်သည်။ ရည်ရွယ်ချက်မတူလျှင် ပစ္စည်းနှင့် စနစ်အရွယ်အစားလည်း မတူပါ။

အိမ်သုံး PV စနစ်များကို စီမံကိန်းအတွက် ပုံမှန်အားဖြင့် 3–20 kWp အတွင်း ဥပမာပြလေ့ရှိသည်။ ယင်းသည် ပုံသေကန့်သတ်ချက် မဟုတ်ပါ။ အမိုးနေရာ၊ နေရောင်ရရှိမှု၊ အိမ်၏ဝန်နှင့် backup လိုအပ်ချက်တို့က ဒီဇိုင်းအပေါ် သက်ရောက်သည်။

အိမ်၏ လျှပ်စစ်ဝန်များမှ စတင်ပါ

Panel သို့မဟုတ် ဘက်ထရီ မရွေးမီ အိမ်တွင်သုံးသော ပစ္စည်းများနှင့် အသုံးပြုချိန်ကို စာရင်းပြုစုပါ။ လစဉ်မီတာဘေလ်က စုစုပေါင်းသုံးစွဲမှုကို ပြသပြီး ပစ္စည်းအသုံးပြုချိန်ဇယားက ဝန်အများဆုံးဖြစ်သည့် အချိန်များကို သိရှိစေသည်။

ဝန်အုပ်စုအိမ်သုံးပစ္စည်း ဥပမာများစဉ်းစားရန်
မရှိမဖြစ်ဝန်မီး၊ ပန်ကာ၊ ရေခဲသေတ္တာ၊ Wi-Fi router၊ ဖုန်းအားသွင်းခြင်း၊ ရုပ်မြင်သံကြားသီးခြား backup circuit အတွက် သင့်လျော်လေ့ရှိသည်။
အဆင်ပြေမှုအတွက် ဝန်လေအေးပေးစက်၊ ရေပန့်၊ အဝတ်လျှော်စက်၊ မိုက်ခရိုဝေ့ဖ်မီးဖိုအသုံးပြုချိန်နှင့် ပစ္စည်းများ တစ်ပြိုင်နက်လည်ပတ်မည်လား စစ်ပါ။
သုံးစွဲအားမြင့်သောဝန်လျှပ်စစ်ရေပူစက်၊ induction မီးဖို၊ ရေနွေးအိုး၊ မီးဖို၊ EV အားသွင်းစက်Peak demand မြင့်တက်စေပြီး ဘက်ထရီစွမ်းအင်ကို လျင်မြန်စွာ သုံးကုန်စေနိုင်သည်။

အထူးသဖြင့် လေအေးပေးစက်ကို နာရီများစွာသုံးပါက အအေးပေးခြင်းသည် အိမ်၏စွမ်းအင်သုံးစွဲမှုတွင် အချိုးအစားကြီးနိုင်သည်။ ပန့်နှင့် compressor ပါသော ပစ္စည်းများ၏ စတင်လည်ပတ်အားသည် အင်ဗာတာရွေးချယ်မှုအပေါ်လည်း သက်ရောက်သည်။ ဖြစ်နိုင်သမျှ ပစ္စည်း nameplate နှင့် အမှန်တကယ်သုံးစွဲပုံကို အခြေခံပါ။

စနစ်လည်ပတ်ပုံကို ရွေးချယ်ပါ

Grid-connected စနစ်သည် grid ဓာတ်အားရှိချိန်တွင် အိမ်သို့ ဆိုလာဓာတ်အား ပေးသွင်းသည်။ နေ့ခင်းဆိုလာစွမ်းအင်ကို အဓိကအသုံးပြုလိုသော အိမ်များအတွက် သင့်လျော်နိုင်သည်။

Hybrid စနစ်သည် ဆိုလာ panel၊ grid နှင့် ဘက်ထရီတို့ကို ထိုဓာတ်အားရင်းမြစ်များအား စီမံနိုင်သော ပစ္စည်းများဖြင့် ပေါင်းစပ်သည်။ ပိုလျှံသော ဆိုလာစွမ်းအင်ကို နောက်ပိုင်းသုံးရန် သိမ်းဆည်းနိုင်ပြီး မီးပျက်ချိန် ရွေးချယ်ထားသော circuit များကို ထောက်ပံ့နိုင်သည်။

Off-grid စနစ်သည် ယုံကြည်စိတ်ချရသော grid ဓာတ်အားမရှိသည့် အိမ်အတွက် ဖြစ်သည်။ ညအချိန်သုံးစွဲမှု၊ နေရောင်နည်းသောကာလနှင့် လိုအပ်ပါက အရန်မီးစက်ကို သေချာစီစဉ်ရမည်။

ပုံမှန် grid-connected ဆိုလာစနစ်သည် grid မီးပျက်သောအခါ ပိတ်သွားလေ့ရှိသည်။ မီးပျက်ချိန် ဆက်လက်ဓာတ်အားရရှိရန် backup ပေးနိုင်သော အင်ဗာတာ၊ စွမ်းအင်သိုလှောင်မှုနှင့် အိမ်ကို မီးပျက်နေသော grid မှ လုံခြုံစွာ ခွဲထုတ်ပေးသည့် စနစ် လိုအပ်သည်။ ဘက်ထရီစနစ်သည် ဒီဇိုင်းနှင့် ပမာဏအလိုက် ရွေးချယ်ထားသော circuit များ သို့မဟုတ် အိမ်၏ဝန်ပိုများကို backup ပေးနိုင်သည်။

အင်ဗာတာကို ဝန်နှင့် ကိုက်ညီစေပါ

အင်ဗာတာသည် panel မှ DC လျှပ်စစ်ကို အိမ်သုံးပစ္စည်းများအတွက် AC လျှပ်စစ်အဖြစ် ပြောင်းပေးသည်။ ၎င်း၏ kW သတ်မှတ်ချက်သည် တစ်ချိန်တည်း ပေးနိုင်သော power ကို ဖော်ပြသည်။ မော်တာနှင့် compressor များ၏ စတင်ဝန်အပါအဝင် တစ်ပြိုင်နက်သုံးစွဲမည့် ဝန်နှင့် ကိုက်ညီအောင် ရွေးပါ။

Hybrid စနစ်အတွက် အင်ဗာတာနှင့် ဘက်ထရီ ကိုက်ညီမှု၊ လိုအပ်သော အားသွင်းခြင်း၊ အားထုတ်ခြင်းနှင့် backup လုပ်ဆောင်ချက်များကို စစ်ပါ။ အိမ်၏ supply ပုံစံနှင့် လျှပ်စစ်ဖြန့်ဖြူးဘုတ်တို့နှင့်လည်း ကိုက်ညီရမည်။

Backup အစီအစဉ်အလိုက် ဘက်ထရီအရွယ်အစား တွက်ပါ

ဘက်ထရီပမာဏကို kWh ဖြင့် ဖော်ပြပြီး သိမ်းဆည်းထားသော energy ကို ဆိုလိုသည်။ ဘက်ထရီ၏ power သတ်မှတ်ချက် kW က တစ်ချိန်တည်း ထုတ်ပေးနိုင်သောအားကို ဖော်ပြသည်။ နှစ်ခုလုံး အရေးကြီးသည်။ စီစဉ်ထားသော backup ကြာချိန်အတွက် energy လုံလောက်ရမည်ဖြစ်ပြီး တစ်ပြိုင်နက်လည်ပတ်သော ပစ္စည်းများအတွက် အားထုတ်နိုင်မှုလည်း လုံလောက်ရမည်။

LiFePO₄ သည် အိမ်သုံးစွမ်းအင်သိုလှောင်မှုအတွက် ရွေးချယ်စရာတစ်မျိုး ဖြစ်သည်။ အသုံးပြုနိုင်သောပမာဏ၊ အင်ဗာတာကိုက်ညီမှု၊ BMS ဆက်သွယ်မှုနှင့် တပ်ဆင်လိုအပ်ချက်များကို စစ်ပါ။ အသုံးပြုနိုင်သော energy သည် nameplate ပမာဏထက် နည်းနိုင်ပြီး အားသွင်းခြင်းနှင့် အားထုတ်ခြင်းတွင် စွမ်းအင်ဆုံးရှုံးမှုအချို့ ရှိသည်။

ဥပမာ၊ ရွေးထားသော backup ပစ္စည်းများက ပျမ်းမျှ 1.2 kW ကို ၅ နာရီသုံးပါက system loss နှင့် reserve မထည့်မီ ဝန်သို့ပေးရမည့် energy သည် 6 kWh ခန့်ဖြစ်သည်။ အင်ဗာတာကလည်း ပစ္စည်းများ၏ တစ်ပြိုင်နက် power demand ကို ပေးနိုင်ရမည်။ ယင်းသည် တွက်ချက်ပုံရှင်းပြသော ဥပမာသာဖြစ်ပြီး အကြံပြုထားသော စနစ်အရွယ်အစား မဟုတ်ပါ။

အမိုးနှင့် တပ်ဆင်မှုကို စစ်ဆေးပါ

Site survey တွင် အမိုးအခြေအနေ၊ တည်ဆောက်ပုံ၊ အရိပ်၊ mounting နေရာ၊ ကြိုးလမ်းကြောင်းနှင့် ပြုပြင်ထိန်းသိမ်းရန် ဝင်ရောက်နိုင်မှုတို့ကို စစ်ရမည်။ PV ထုတ်လုပ်မှုသည် နေရောင်၊ ရာသီ၊ တိမ်၊ ဖုန်နှင့် အရိပ်တို့အလိုက် ပြောင်းလဲသဖြင့် site အခြေအနေ အရေးကြီးသည်။

တပ်ဆင်ဒီဇိုင်းတွင် လျှပ်စစ်ဖြန့်ဖြူးဘုတ်၊ isolation နှင့် protection၊ မြေချစနစ်၊ ဘက်ထရီနေရာနှင့် လုံခြုံစွာလုပ်ကိုင်နိုင်သော အကွာအဝေးတို့ကို ထည့်သွင်းပါ။ Grid မချိတ်ဆက်မီ သက်ဆိုင်ရာ utility နှင့် အာဏာပိုင်လိုအပ်ချက်များကို အတည်ပြုပါ။ သင့်လျော်သော လေ့ကျင့်မှုရှိသည့် တပ်ဆင်သူများကို သုံးပြီး ထုတ်လုပ်သူ၏ တပ်ဆင်ညွှန်ကြားချက်များကို လိုက်နာပါ။

လက်တွေ့ ဒီဇိုင်းအစီအစဉ်

  1. မီတာဘေလ်များကို စစ်ပြီး အဓိကအိမ်သုံးပစ္စည်းများနှင့် အသုံးပြုနာရီကို မှတ်တမ်းတင်ပါ။
  2. မီးပျက်ချိန် မည်သည့် circuit များကို မည်မျှကြာကြာ သုံးမည်ကို သတ်မှတ်ပါ။
  3. အမိုး၊ အရိပ်၊ လျှပ်စစ်ဘုတ်နှင့် တပ်ဆင်နေရာကို စစ်ဆေးပါ။
  4. Grid-connected၊ hybrid သို့မဟုတ် off-grid လည်ပတ်ပုံကို ရွေးပါ။
  5. အိမ်၏အချိန်အလိုက်ဝန်နှင့် ဒေသနေရောင်အခြေအနေအပေါ် အခြေခံပြီး PV array၊ အင်ဗာတာနှင့် ဘက်ထရီကို တွက်ချက်ပါ။
  6. စနစ်ကို commissioning လုပ်ပြီး လည်ပတ် mode များ၊ monitoring နှင့် backup circuit များကို စမ်းသပ်ပါ။

အိမ်က မည်သည့်ပစ္စည်းများကို သုံးသနည်း၊ မည်သည်တို့ကို ဆက်လက်ဖွင့်ထားရမည်နည်း၊ မည်မျှကြာကြာ လည်ပတ်ရမည်နည်း ဟူသော အချက်များကို ရှင်းလင်းစွာ သတ်မှတ်ခြင်းမှ ကောင်းမွန်သော အိမ်သုံးဒီဇိုင်း စတင်သည်။ ထိုအချက်များအပေါ် အခြေခံ၍ panel၊ အင်ဗာတာ၊ ဘက်ထရီနှင့် protection ပစ္စည်းများကို အပြန်အလှန်ကိုက်ညီသော စနစ်တစ်ခုအဖြစ် ရွေးချယ်နိုင်သည်။

PV arrayအင်ဗာတာSite ဖြန့်ဖြူးမှုအိမ်သုံးဝန်များ
Grid / မီးစက်ချိတ်ဆက်မှု · လိုအပ်ပါက ဘက်ထရီသိုလှောင်မှု
အယူအဆပြပုံသာဖြစ်သည်။ Backup အတွက် သင့်လျော်သော isolation နှင့် transfer ပစ္စည်းလိုအပ်သည်။ ပုံရှင်းလင်းရန် protection နှင့် earthing ကို မဖော်ပြထားပါ။

Small commercial solar

Small commercial solar installation illustration

Small Commercial Solar Installation: Match the System to the Business Day

Small commercial PV systems commonly fall within the 20–100 kWp planning range. Shops, offices, restaurants and clinics may fit this class, but their loads and operating hours can differ widely. The best design starts with how the business uses electricity through a typical day and what it needs to keep running during an outage.

Map the business loads

A monthly electricity bill shows total energy use. Interval meter data, if available, can show when demand rises and how it changes across working days, weekends and seasons. Record the site’s peak demand, grid and generator use, supply voltage and phase, and the operating hours of major equipment.

Business typeCommon loadsKey design question
Shop or retail outletLighting, air conditioning, refrigeration, point-of-sale equipment, internet and securityWhich loads run throughout business hours or after closing?
OfficeAir conditioning, lighting, computers, network equipment, printers, lifts or pumpsHow do occupancy and working hours affect daytime demand?
RestaurantRefrigeration, exhaust fans, air conditioning, pumps and kitchen equipmentWhich kitchen loads are electric, and when do cooking and cooling demands overlap?
ClinicAir conditioning, refrigeration, diagnostic equipment, IT, lighting and pumpsWhich circuits are essential, and what supply quality and backup time do they require?

Refrigeration, air conditioning, pumps and other motor-driven equipment need special attention. Their operating demand may change over the day, and starting demand can affect inverter or backup-system selection. For clinics, identify equipment that needs continuous or stable power and have its requirements checked by a qualified designer.

Decide what the solar system should do

A grid-connected system can supply daytime business loads while the grid is available. It may suit a site whose main goal is to use more solar electricity during operating hours.

A hybrid system can coordinate PV, the grid, a battery and, where designed for it, a generator. It can support selected circuits during outages or store solar energy for later use.

Battery storage should be sized around a defined purpose: backup, use of solar energy after business hours, or demand management where the site’s tariff and controls make that useful. The battery does not have to match the PV array by a fixed ratio.

Understand the equipment ratings

The PV array is rated in kWp, its DC peak capacity. The inverter’s kW rating describes its AC power output at a moment. Battery kWh describes stored energy, while battery kW describes how much power it can deliver at once. These ratings answer different design questions.

For comparison, the installation guide uses this Small Business planning anchor:

This is a comparison example, not a standard package. A business focused on daytime solar use may need less storage. A backup design must account for the critical loads, desired operating hours, battery’s usable capacity and discharge power, inverter limits and any generator arrangement.

Confirm the phase and inverter design

Many small commercial systems use three-phase inverters, but the system class alone does not determine the connection. Confirm the site’s incoming supply, voltage, phase, maximum demand, major motor loads and utility requirements.

The design should check module-string voltage and current against each inverter MPPT’s limits, including the selected module’s exact datasheet. Where roof sections face different directions or have different shading, the string layout and MPPT assignment need to reflect those conditions. Provide suitable equipment cooling, service access, monitoring and a clear record of operating events.

Plan protection and site works

Commercial installations need coordinated design across the PV array, inverter, battery, switchboard and grid or generator connection. The electrical review should cover AC breakers or MCCBs, DC and AC isolation, surge protection, earthing and bonding, metering, and export control where applicable.

Cable sizing depends on the circuit current, installation method, temperature, cable grouping, voltage drop and fault withstand. A project should also check the roof’s structural capacity, wind loading, waterproofing, access routes and maintenance needs before mounting equipment. Protect the inverter and battery from direct sun, rain, flood paths and obstructed access, following the manufacturers’ instructions.

A practical design sequence

  1. Collect electricity bills and interval data if available; identify daily energy use and peak demand.
  2. List major circuits by operating hours, phase and starting demand.
  3. Survey the roof, shading, structure, electrical room and cable routes.
  4. Choose grid-connected or hybrid operation and identify any generator interface.
  5. Define normal-use, essential and non-essential circuits.
  6. Size the PV array, inverter and battery to the measured load profile and site conditions.
  7. Confirm utility or authority requirements, protection design and export settings.
  8. Commission the system, test its operating modes and backup circuits, and hand over drawings, settings, test records and monitoring access.

For a small business, good planning connects the PV array to the hours when the business actually needs power. The result should be a coordinated system with documented load assumptions, equipment limits, protection and operating goals.

Planning note: This article is an early planning guide, not a construction drawing. Final design requires the exact equipment datasheets, site measurements, structural and electrical engineering, and confirmation of current Myanmar utility and authority requirements.

PV arrayInverterSite distributionBusiness loads
Grid / generator connection · Optional battery storage
Concept diagram. Backup requires suitable isolation and transfer equipment; protection and earthing are omitted for clarity.

အသေးစား စီးပွားရေးသုံး ဆိုလာတပ်ဆင်ခြင်း — လုပ်ငန်း၏ နေ့စဉ်လည်ပတ်မှုနှင့် ကိုက်ညီစေပါ

အသေးစား စီးပွားရေးသုံး PV စနစ်များကို 20–100 kWp အတွင်း စီမံကိန်းဥပမာအဖြစ် သတ်မှတ်လေ့ရှိသည်။ ဆိုင်၊ ရုံး၊ စားသောက်ဆိုင်နှင့် ဆေးခန်းများ ပါဝင်နိုင်သော်လည်း ဝန်နှင့် လည်ပတ်ချိန် မတူနိုင်ပါ။ လုပ်ငန်း၏ နေ့စဉ်လျှပ်စစ်သုံးစွဲပုံနှင့် မီးပျက်ချိန် ဆက်လက်လည်ပတ်ရမည့် ပစ္စည်းများကို အခြေခံပြီး ဒီဇိုင်းစတင်ပါ။

လုပ်ငန်းဝန်များကို စာရင်းပြုစုပါ

လစဉ်မီတာဘေလ်သည် စုစုပေါင်း energy သုံးစွဲမှုကို ပြသည်။ ရရှိပါက အချိန်အပိုင်းအခြားအလိုက် မီတာအချက်အလက်သည် အလုပ်ရက်၊ ပိတ်ရက်နှင့် ရာသီအလိုက် ဝန်တက်ချိန်ကို သိရှိစေသည်။ Peak demand၊ grid နှင့် မီးစက်သုံးစွဲမှု၊ supply voltage၊ phase နှင့် အဓိကပစ္စည်းများ၏ လည်ပတ်ချိန်ကို မှတ်တမ်းတင်ပါ။

လုပ်ငန်းအမျိုးအစားပုံမှန်ဝန်များအဓိက ဒီဇိုင်းမေးခွန်း
ဆိုင် / လက်လီဆိုင်မီး၊ လေအေးပေးစက်၊ ရေခဲသေတ္တာ၊ အရောင်းစနစ်၊ အင်တာနက်နှင့် လုံခြုံရေးဖွင့်ချိန်တစ်လျှောက် သို့မဟုတ် ဆိုင်ပိတ်ပြီးနောက် မည်သည့်ဝန်များ လည်ပတ်သနည်း။
ရုံးလေအေးပေးစက်၊ မီး၊ ကွန်ပျူတာ၊ network၊ printer၊ ဓာတ်လှေကား သို့မဟုတ် ပန့်လူအသုံးပြုမှုနှင့် အလုပ်ချိန်သည် နေ့ခင်းဝန်ကို မည်သို့သက်ရောက်သနည်း။
စားသောက်ဆိုင်ရေခဲသေတ္တာ၊ လေထုတ်ပန်ကာ၊ လေအေးပေးစက်၊ ပန့်နှင့် မီးဖိုချောင်ပစ္စည်းမည်သည့်ချက်ပြုတ်ပစ္စည်းများ လျှပ်စစ်သုံးသနည်း၊ ချက်ပြုတ်ဝန်နှင့် အအေးပေးဝန် မည်သည့်အချိန် ထပ်နေသနည်း။
ဆေးခန်းလေအေးပေးစက်၊ ရေခဲသေတ္တာ၊ ရောဂါရှာဖွေပစ္စည်း၊ IT၊ မီးနှင့် ပန့်မည်သည့် circuit များ မရှိမဖြစ်ဖြစ်သနည်း၊ ဓာတ်အားအရည်အသွေးနှင့် backup ကြာချိန် မည်မျှလိုသနည်း။

ရေခဲသေတ္တာ၊ လေအေးပေးစက်၊ ပန့်နှင့် မော်တာသုံးပစ္စည်းများကို အထူးစစ်ဆေးပါ။ လည်ပတ်ဝန်သည် နေ့အချိန်အလိုက် ပြောင်းနိုင်ပြီး စတင်ဝန်က အင်ဗာတာ သို့မဟုတ် backup ရွေးချယ်မှုကို သက်ရောက်နိုင်သည်။ ဆေးခန်းတွင် အဆက်မပြတ် သို့မဟုတ် တည်ငြိမ်သော ဓာတ်အားလိုသည့် ပစ္စည်းများကို သတ်မှတ်ပြီး အရည်အချင်းပြည့်မီသော ဒီဇိုင်နာဖြင့် စစ်ဆေးပါ။

ဆိုလာစနစ်၏ ရည်ရွယ်ချက်ကို သတ်မှတ်ပါ

Grid-connected စနစ် သည် grid ရှိချိန် နေ့ခင်းလုပ်ငန်းဝန်များကို ပေးသွင်းနိုင်သည်။ လည်ပတ်ချိန်အတွင်း ဆိုလာဓာတ်အား ပိုမိုအသုံးပြုလိုသော site အတွက် သင့်လျော်နိုင်သည်။

Hybrid စနစ် သည် PV၊ grid၊ ဘက်ထရီနှင့် ဒီဇိုင်းပါဝင်ပါက မီးစက်တို့ကို ညှိနှိုင်းလည်ပတ်နိုင်သည်။ မီးပျက်ချိန် ရွေးထားသော circuit များကို ထောက်ပံ့နိုင်ပြီး နောက်ပိုင်းသုံးရန် ဆိုလာ energy ကို သိမ်းဆည်းနိုင်သည်။

ဘက်ထရီကို backup၊ လုပ်ငန်းပိတ်ချိန်နောက် ဆိုလာ energy သုံးရန် သို့မဟုတ် tariff နှင့် control ကိုက်ညီပါက demand management ဟူသော ရည်ရွယ်ချက်အရ တွက်ပါ။ ဘက်ထရီနှင့် PV ကို ပုံသေအချိုးတစ်ခုဖြင့် မဖြစ်မနေ တွဲစရာမလိုပါ။

ပစ္စည်းသတ်မှတ်ချက်များကို နားလည်ပါ

PV array ၏ kWp သည် DC peak capacity ဖြစ်သည်။ အင်ဗာတာ၏ kW သည် တစ်ချိန်တည်း AC power ထုတ်ပေးနိုင်မှု ဖြစ်သည်။ ဘက်ထရီ kWh သည် သိမ်းထားသော energy၊ ဘက်ထရီ kW သည် တစ်ချိန်တည်း ထုတ်ပေးနိုင်သော power ဖြစ်သည်။ ယူနစ်တစ်ခုစီက မတူသော ဒီဇိုင်းမေးခွန်းကို ဖြေသည်။

နှိုင်းယှဉ်ရန် လမ်းညွှန်တွင် အသေးစားလုပ်ငန်း ဥပမာကို သုံးထားသည်။

ဤသည် နှိုင်းယှဉ်ရန် ဥပမာသာဖြစ်ပြီး ပုံသေ package မဟုတ်ပါ။ နေ့ခင်းဆိုလာသုံးမှုကို ဦးစားပေးသော လုပ်ငန်းသည် storage နည်းနိုင်သည်။ Backup အတွက် အရေးကြီးဝန်၊ လိုအပ်နာရီ၊ ဘက်ထရီအသုံးပြုနိုင်သောပမာဏနှင့် အားထုတ်နိုင်မှု၊ အင်ဗာတာကန့်သတ်ချက်နှင့် မီးစက်စနစ်တို့ကို တွက်ရမည်။

Phase နှင့် အင်ဗာတာဒီဇိုင်းကို အတည်ပြုပါ

အသေးစားစီးပွားရေးစနစ်များတွင် သုံးဖေ့စ်အင်ဗာတာ သုံးလေ့ရှိသော်လည်း အမျိုးအစားတစ်ခုတည်းဖြင့် ချိတ်ဆက်မှု မဆုံးဖြတ်နိုင်ပါ။ Incoming supply၊ voltage၊ phase၊ maximum demand၊ မော်တာဝန်ကြီးများနှင့် utility လိုအပ်ချက်များကို စစ်ပါ။

Module ၏ အတိအကျ datasheet ကို အသုံးပြုပြီး string voltage နှင့် current ကို အင်ဗာတာ MPPT တစ်ခုစီ၏ ကန့်သတ်ချက်နှင့် စစ်ပါ။ အမိုးဦးတည်ရာနှင့် အရိပ်ကွာပါက string နှင့် MPPT ခွဲဝေမှုကို ကိုက်ညီစေပါ။ ပစ္စည်းအအေးပေးမှု၊ ပြုပြင်ဝင်ရောက်နိုင်မှု၊ monitoring နှင့် လည်ပတ်ဖြစ်ရပ်မှတ်တမ်းကို စီစဉ်ပါ။

Protection နှင့် Site လုပ်ငန်းများကို စီစဉ်ပါ

PV၊ အင်ဗာတာ၊ ဘက်ထရီ၊ switchboard နှင့် grid / မီးစက်ချိတ်ဆက်မှုတို့ကို ပေါင်းစပ်ဒီဇိုင်းလုပ်ရမည်။ AC breaker သို့မဟုတ် MCCB၊ DC/AC isolation၊ surge protection၊ earthing နှင့် bonding၊ metering နှင့် လိုအပ်ပါက export control ကို စစ်ပါ။

ကြိုးအရွယ်အစားသည် circuit current၊ တပ်ဆင်နည်း၊ အပူချိန်၊ ကြိုးစုဖွဲ့မှု၊ voltage drop နှင့် fault withstand အပေါ် မူတည်သည်။ Mounting မလုပ်မီ အမိုးခံနိုင်ရည်၊ လေဒဏ်၊ ရေမဝင်စေရေး၊ ဝင်ထွက်လမ်းနှင့် ထိန်းသိမ်းရန်လိုအပ်ချက်များကို စစ်ပါ။ ထုတ်လုပ်သူညွှန်ကြားချက်အတိုင်း အင်ဗာတာနှင့် ဘက်ထရီကို နေတိုက်ရိုက်ထိခြင်း၊ မိုး၊ ရေကြီးလမ်းကြောင်းနှင့် ဝင်ရောက်မှုအတားအဆီးများမှ ကာကွယ်ပါ။

လက်တွေ့ ဒီဇိုင်းအစီအစဉ်

  1. မီတာဘေလ်နှင့် ရရှိနိုင်သော အချိန်အလိုက်ဒေတာကို စုဆောင်းပြီး နေ့စဉ် energy နှင့် peak demand ကို သတ်မှတ်ပါ။
  2. အဓိက circuit များကို လည်ပတ်ချိန်၊ phase နှင့် စတင်ဝန်အလိုက် စာရင်းပြုစုပါ။
  3. အမိုး၊ အရိပ်၊ structure၊ လျှပ်စစ်ခန်းနှင့် ကြိုးလမ်းကြောင်းကို စစ်ပါ။
  4. Grid-connected သို့မဟုတ် hybrid ကို ရွေးပြီး မီးစက်ချိတ်ဆက်မှု ရှိမရှိ သတ်မှတ်ပါ။
  5. ပုံမှန်သုံးဝန်၊ မရှိမဖြစ်ဝန်နှင့် မလိုအပ်သောဝန် circuit များကို ခွဲပါ။
  6. တိုင်းတာထားသော ဝန်နှင့် site အခြေအနေအရ PV၊ အင်ဗာတာနှင့် ဘက်ထရီကို တွက်ပါ။
  7. Utility / အာဏာပိုင်လိုအပ်ချက်၊ protection design နှင့် export setting ကို အတည်ပြုပါ။
  8. Commissioning လုပ်ပြီး mode နှင့် backup circuit များကို စမ်းသပ်ပါ။ Drawing၊ setting၊ test record နှင့် monitoring access တို့ကို လွှဲပြောင်းပါ။

ကောင်းမွန်သော စီမံကိန်းသည် လုပ်ငန်း အမှန်တကယ်ဓာတ်အားလိုချိန်နှင့် PV array ကို ချိတ်ဆက်ပေးသည်။ ဝန်ခန့်မှန်းချက်၊ ပစ္စည်းကန့်သတ်ချက်၊ protection နှင့် လည်ပတ်ရည်ရွယ်ချက်တို့ကို မှတ်တမ်းတင်ထားသော ကိုက်ညီသည့် စနစ်တစ်ခု ဖြစ်ရမည်။

စီမံကိန်းမှတ်ချက်: ဤဆောင်းပါးသည် ကနဦးစီမံကိန်းလမ်းညွှန်ဖြစ်ပြီး ဆောက်လုပ်ရေး drawing မဟုတ်ပါ။ နောက်ဆုံးဒီဇိုင်းအတွက် အတိအကျ datasheet၊ site တိုင်းတာချက်၊ structural နှင့် electrical engineering၊ လက်ရှိ မြန်မာနိုင်ငံ utility နှင့် အာဏာပိုင်လိုအပ်ချက် အတည်ပြုမှု လိုအပ်သည်။

PV arrayအင်ဗာတာSite ဖြန့်ဖြူးမှုလုပ်ငန်းသုံးဝန်များ
Grid / မီးစက်ချိတ်ဆက်မှု · လိုအပ်ပါက ဘက်ထရီသိုလှောင်မှု
အယူအဆပြပုံသာဖြစ်သည်။ Backup အတွက် သင့်လျော်သော isolation နှင့် transfer ပစ္စည်းလိုအပ်သည်။ ပုံရှင်းလင်းရန် protection နှင့် earthing ကို မဖော်ပြထားပါ။

Medium C&I solar

Medium C&I solar installation illustration

Medium C&I Solar Installation: Engineer for the Whole Facility

Medium C&I PV systems commonly fall within the 100–500 kWp planning range. Hotels, schools, warehouses and shopping centres can fit this class, but the label describes an application range—not a standard design or a fixed utility connection voltage.

At this scale, the PV array is only one part of the project. The design must coordinate the facility’s load profile, roof or ground conditions, inverters, any battery system, existing switchboards, transformers, generators and utility requirements.

Build a reliable load picture

Monthly bills show total energy use. A facility load profile helps show when power is used and how high demand rises. Collect 15-minute meter data where available, including representative working days, weekends and seasonal operating periods. Record generator runtime and any major changes in occupancy or production.

Facility typeCommon loadsMeasurement focus
HotelAir conditioning, chillers, pumps, lifts, laundry, kitchens, lighting and guest servicesSeparate continuous base loads from occupancy-driven peaks
SchoolLighting, fans or air conditioning, computers, laboratories, pumps and kitchensMap the school calendar, daytime schedule and holiday loads
WarehouseHigh-bay lighting, ventilation, conveyors, compressors and cold storageRecord motor starts, refrigeration cycles and shift patterns
Shopping centreCentral HVAC, lighting, lifts, escalators, refrigeration, pumps and tenant loadsIdentify shared loads, tenant meters and evening demand

For each major circuit, document its operating power, phase, run time and starting demand. Where meter data is limited, use temporary measurement or submetering on large equipment. Record the data source and any gaps so the design team can distinguish measured loads from estimates.

Define the operating objective

A medium C&I project may aim to use more solar energy during business hours, reduce generator fuel use, support selected loads during outages, or manage demand. Each objective changes how the PV array, inverter and battery controls should work together.

A grid-connected PV system can serve daytime loads while the grid is available. A battery may be added for backup or to shift solar energy to later hours. Demand management can also coordinate flexible loads—such as some cooling or pumping—where the equipment and operating schedule allow it.

For backup, create a critical-load register before selecting the battery. Divide equipment into:

For each backed-up load, record its kW, phase, expected run time, starting current and required supply quality. This helps determine battery energy, battery discharge power, inverter output, transfer arrangements and load-shedding logic.

Medium C&I planning anchor

The solar guide uses this comparison configuration:

ComponentPlanning example
PV array100.8 kWp
Modules168 × 600 W
Inverter100 kW three-phase, or 2 × 50 kW
LiFePO₄ battery160–300 kWh

These figures are planning anchors, not a fixed package. The battery range reflects different backup objectives. A site focused on daytime self-consumption may need much less storage, while a site with longer backup requirements needs a load-by-load energy calculation and a check that the battery can deliver the required power.

Size PV, inverter and battery as a system

Read the ratings separately:

The inverter must support the facility’s simultaneous demand, phase arrangement and motor-start requirements. Its PV inputs must also suit the selected module strings: check maximum DC voltage, MPPT operating windows, current limits and permitted DC-to-AC sizing against the exact equipment datasheets.

The battery needs both enough usable kWh for the selected backup duration and enough continuous and surge kW to serve the loads. Estimate energy by summing each critical load’s demand over the hours it must operate. Then account for the manufacturer-approved state-of-charge window, conversion losses, reserve and expected capacity at the end of service life. The battery management system and power conversion equipment must use a manufacturer-approved configuration and communications method.

A battery’s nameplate kWh alone does not set backup runtime. Actual runtime depends on the critical-load profile, usable energy, discharge limits, inverter efficiency and reserve settings.

Check the supply and utility interface

A 100–500 kWp class label does not determine whether the site connects at low or medium voltage. Confirm the utility-approved connection point and review the incoming supply, transformer capacity, maximum demand, fault level, protection, metering and export requirements.

The electrical design should address:

Grid, battery and generator operation must be tested as a coordinated system. Transfer logic, generator priority, battery charging rules and load shedding should be documented for each operating mode.

Plan protection, structure and safe access

Medium C&I projects need a coordinated protection design across the PV array, battery, inverter, switchboards and grid or generator interface. The engineering package should include a single-line diagram, string schedule, cable routes, protective-device ratings, settings and a protection coordination review.

Check AC breakers or MCCBs, DC and AC isolation, surge protection, earthing and bonding, metering, emergency shutdown and labels. Cable sizing depends on current, installation method, ambient temperature, grouping, voltage drop and fault withstand.

For rooftop systems, review structural capacity, wind uplift, corrosion, roof waterproofing and the impact on roof warranties. Plan safe walkways, lifting access and maintenance clearances. Ground-mounted sites need their own drainage, access, security and foundation assessment.

For a commercial battery system, verify the battery and inverter specifications, BMS communications, cabinet spacing, thermal management, detection and emergency response requirements. Choose the battery location with the manufacturer’s instructions and applicable building and fire requirements in mind; keep emergency isolation and service access clear.

Monitor performance and commission deliberately

A monitoring platform should make it possible to review PV production, facility demand, battery state of charge, grid import or export, generator runtime, alarms and communications status. Assign access to the appropriate facility and maintenance staff.

Before energizing, complete and record the required installation checks. Commissioning should verify the PV strings, protection settings, inverter operation, battery charging and discharge, monitoring data, grid-failure behavior, generator transfer and backed-up loads. Handover records should include approved and as-built drawings, equipment datasheets, settings, test results, warranties, maintenance instructions and owner training.

A practical project sequence

  1. Collect bills, interval data, generator logs and equipment schedules.
  2. Survey the facility, roof or ground site, switchboards and transformer.
  3. Agree on energy, backup and demand-management objectives.
  4. Prepare the load register and critical-load plan.
  5. Complete the PV, inverter, battery, structure and protection designs.
  6. Confirm utility, building and fire requirements before procurement.
  7. Review exact model datasheets, certifications, compatibility and service support.
  8. Install, test, document and train the facility team.
  9. Monitor results and adjust operating priorities using actual site data.

Planning note: This article is a preliminary planning guide, not a construction drawing. Final design requires site measurements, verified equipment data, qualified electrical and structural engineering, and confirmation of current Myanmar utility, building and fire requirements.

PV arrayInverterSite distributionFacility loads
Grid / generator connection · Optional battery storage
Concept diagram. Backup requires suitable isolation and transfer equipment; protection and earthing are omitted for clarity.

အလတ်စား C&I ဆိုလာတပ်ဆင်ခြင်း — Facility တစ်ခုလုံးအတွက် ပေါင်းစပ်ဒီဇိုင်း

အလတ်စား C&I PV စနစ်များသည် ပုံမှန်အားဖြင့် 100–500 kWp စီမံကိန်းအတိုင်းအတာတွင် ပါဝင်သည်။ ဟိုတယ်၊ ကျောင်း၊ ဂိုဒေါင်နှင့် စျေးဝယ်စင်တာများ ပါဝင်နိုင်သော်လည်း ဤအမျိုးအစားသည် အသုံးပြုမှုအတိုင်းအတာသာဖြစ်ပြီး ပုံသေဒီဇိုင်း သို့မဟုတ် utility ချိတ်ဆက်ဗို့အား မဟုတ်ပါ။

ဤအဆင့်တွင် PV array သည် စီမံကိန်း၏ အစိတ်အပိုင်းတစ်ခုသာဖြစ်သည်။ Facility ၏ အချိန်အလိုက်ဝန်၊ အမိုး / မြေပြင်အခြေအနေ၊ အင်ဗာတာ၊ ဘက်ထရီပါပါက ဘက်ထရီစနစ်၊ လက်ရှိ switchboard၊ transformer၊ မီးစက်နှင့် utility လိုအပ်ချက်များကို ညှိနှိုင်းရမည်။

ယုံကြည်ရသော ဝန်အချက်အလက် စုဆောင်းပါ

လစဉ်ဘေလ်က စုစုပေါင်း energy သုံးစွဲမှုကို ပြသည်။ Load profile က ဓာတ်အားသုံးချိန်နှင့် demand တက်ပုံကို ပြသည်။ ရရှိပါက အလုပ်ရက်၊ ပိတ်ရက်နှင့် ရာသီအလိုက်လည်ပတ်ကာလကို ကိုယ်စားပြုသော ၁၅ မိနစ်အလိုက် မီတာဒေတာ စုဆောင်းပါ။ မီးစက်လည်ပတ်ချိန်၊ လူနေထိုင်အသုံးပြုမှု သို့မဟုတ် ထုတ်လုပ်မှု ပြောင်းလဲချက်များကို မှတ်တမ်းတင်ပါ။

Facility အမျိုးအစားပုံမှန်ဝန်များတိုင်းတာရန် အဓိကအချက်
ဟိုတယ်လေအေးပေးစက်၊ chiller၊ ပန့်၊ ဓာတ်လှေကား၊ အဝတ်လျှော်၊ မီးဖိုချောင်၊ မီးနှင့် ဧည့်သည်ဝန်ဆောင်မှုအမြဲလည်ပတ်ဝန်နှင့် လူအသုံးပြုမှုကြောင့် peak တက်သောဝန်ကို ခွဲပါ။
ကျောင်းမီး၊ ပန်ကာ / လေအေးပေးစက်၊ ကွန်ပျူတာ၊ ဓာတ်ခွဲခန်း၊ ပန့်နှင့် မီးဖိုချောင်ကျောင်းပြက္ခဒိန်၊ နေ့ခင်းဇယားနှင့် ပိတ်ရက်ဝန်ကို သတ်မှတ်ပါ။
ဂိုဒေါင်အမြင့်တပ်မီး၊ လေဝင်လေထွက်၊ conveyor၊ compressor နှင့် အအေးခန်းမော်တာစတင်မှု၊ refrigeration cycle နှင့် shift ကို မှတ်တမ်းတင်ပါ။
စျေးဝယ်စင်တာCentral HVAC၊ မီး၊ ဓာတ်လှေကား၊ စက်လှေကား၊ refrigeration၊ ပန့်နှင့် ဆိုင်ခန်းဝန်ပူးတွဲသုံးဝန်၊ ဆိုင်ခန်းမီတာနှင့် ညနေဝန်ကို ခွဲပါ။

အဓိက circuit တစ်ခုစီ၏ လည်ပတ် power၊ phase၊ အသုံးပြုချိန်နှင့် စတင်ဝန်ကို မှတ်တမ်းတင်ပါ။ မီတာဒေတာမလုံလောက်ပါက ပစ္စည်းကြီးများတွင် ယာယီတိုင်းတာခြင်း သို့မဟုတ် submeter သုံးပါ။ တိုင်းတာဝန်နှင့် ခန့်မှန်းဝန်ကို ခွဲသိရန် ဒေတာရင်းမြစ်နှင့် လစ်ဟာချက်များကို မှတ်တမ်းတင်ပါ။

လည်ပတ်ရည်ရွယ်ချက်ကို သတ်မှတ်ပါ

ရည်ရွယ်ချက်မှာ လုပ်ငန်းချိန်ဆိုလာအသုံးပြုမှု မြှင့်ရန်၊ မီးစက်ဆီ လျှော့ရန်၊ မီးပျက်ချိန် ရွေးထားသောဝန်ကို ထောက်ပံ့ရန် သို့မဟုတ် demand စီမံရန် ဖြစ်နိုင်သည်။ ရည်ရွယ်ချက်တစ်ခုစီက PV၊ အင်ဗာတာနှင့် ဘက်ထရီ control ပေါင်းစပ်ပုံကို ပြောင်းစေသည်။

Grid-connected PV သည် grid ရှိချိန် နေ့ခင်းဝန်ကို ပေးနိုင်သည်။ Backup သို့မဟုတ် နောက်ပိုင်းအသုံးပြုရန် ဆိုလာ energy သိမ်းရန် ဘက်ထရီထည့်နိုင်သည်။ ပစ္စည်းနှင့် လည်ပတ်ဇယားခွင့်ပြုပါက အအေးပေးခြင်းနှင့် ရေစုပ်ခြင်းကဲ့သို့ ချိန်ညှိနိုင်သောဝန်ကို demand management ဖြင့် ညှိနိုင်သည်။

Backup အတွက် ဘက်ထရီမရွေးမီ critical-load register ပြုစု၍ အောက်ပါအတိုင်း ခွဲပါ။

Backup ဝန်တစ်ခုစီ၏ kW၊ phase၊ ခန့်မှန်းလည်ပတ်ချိန်၊ စတင် current နှင့် လိုအပ်သော ဓာတ်အားအရည်အသွေးကို မှတ်တမ်းတင်ပါ။ ယင်းက ဘက်ထရီ energy နှင့် discharge power၊ အင်ဗာတာအထွက်၊ transfer နှင့် load-shedding logic ကို ဆုံးဖြတ်ရာတွင် ကူညီသည်။

အလတ်စား C&I စီမံကိန်းဥပမာ

အစိတ်အပိုင်းစီမံကိန်းဥပမာ
PV array100.8 kWp
Module168 × 600 W
အင်ဗာတာ100 kW သုံးဖေ့စ် သို့မဟုတ် 2 × 50 kW
LiFePO₄ ဘက်ထရီ160–300 kWh

ဤကိန်းများသည် နှိုင်းယှဉ်ရန်သာဖြစ်ပြီး ပုံသေ package မဟုတ်ပါ။ ဘက်ထရီအတိုင်းအတာက မတူသော backup ရည်ရွယ်ချက်ကို ကိုယ်စားပြုသည်။ နေ့ခင်းကိုယ်တိုင်သုံးစွဲမှုကို ဦးစားပေးသော site သည် storage နည်းနိုင်သည်။ Backup ရှည်ပါက ဝန်တစ်ခုစီ၏ energy နှင့် ဘက်ထရီ power ထုတ်နိုင်မှုကို တွက်ရမည်။

PV၊ အင်ဗာတာနှင့် ဘက်ထရီကို စနစ်တစ်ခုအဖြစ် တွက်ပါ

အင်ဗာတာသည် တစ်ပြိုင်နက်ဝန်၊ phase နှင့် မော်တာစတင်ဝန်ကို ထောက်ပံ့နိုင်ရမည်။ PV input အတွက် ရွေးထားသော string များ၏ maximum DC voltage၊ MPPT operating window၊ current limit နှင့် ခွင့်ပြု DC/AC sizing ကို အတိအကျ datasheet ဖြင့် စစ်ပါ။

ဘက်ထရီတွင် backup ကြာချိန်အတွက် အသုံးပြုနိုင်သော kWh လုံလောက်ရမည်ဖြစ်ပြီး ဝန်အတွက် continuous နှင့် surge kW လည်း လုံလောက်ရမည်။ Critical load တစ်ခုစီ၏ power နှင့် အသုံးပြုနာရီတို့ကို ပေါင်းတွက်ပါ။ ထို့နောက် ထုတ်လုပ်သူခွင့်ပြု state-of-charge window၊ conversion loss၊ reserve နှင့် သက်တမ်းအဆုံးမျှော်မှန်းပမာဏကို ထည့်ပါ။ BMS နှင့် power conversion ပစ္စည်းတို့သည် ထုတ်လုပ်သူခွင့်ပြု configuration နှင့် ဆက်သွယ်မှုကို သုံးရမည်။

Nameplate kWh တစ်ခုတည်းဖြင့် backup ကြာချိန် မဆုံးဖြတ်နိုင်ပါ။ Critical-load profile၊ အသုံးပြုနိုင်သော energy၊ discharge limit၊ အင်ဗာတာ efficiency နှင့် reserve setting တို့အပေါ် မူတည်သည်။

Supply နှင့် Utility ချိတ်ဆက်မှုကို စစ်ပါ

100–500 kWp အမျိုးအစားက low-voltage သို့မဟုတ် medium-voltage ချိတ်ဆက်မှုကို မဆုံးဖြတ်ပါ။ Utility ခွင့်ပြုချိတ်ဆက်နေရာ၊ incoming supply၊ transformer ပမာဏ၊ maximum demand၊ fault level၊ protection၊ metering နှင့် export လိုအပ်ချက်ကို စစ်ပါ။

Grid၊ ဘက်ထရီနှင့် မီးစက်ကို ပေါင်းစပ်စမ်းသပ်ပါ။ Mode တစ်ခုစီအတွက် transfer logic၊ မီးစက်ဦးစားပေးမှု၊ ဘက်ထရီအားသွင်းစည်းမျဉ်းနှင့် load shedding ကို မှတ်တမ်းတင်ပါ။

Protection၊ Structure နှင့် လုံခြုံသောဝင်ရောက်မှု

PV၊ ဘက်ထရီ၊ အင်ဗာတာ၊ switchboard နှင့် grid / မီးစက် interface တို့အတွက် ပေါင်းစပ် protection လိုအပ်သည်။ Single-line diagram၊ string schedule၊ cable route၊ protection rating၊ setting နှင့် protection coordination review ထည့်ပါ။

AC breaker / MCCB၊ DC/AC isolation၊ surge protection၊ earthing / bonding၊ metering၊ emergency shutdown နှင့် label ကို စစ်ပါ။ ကြိုးအရွယ်သည် current၊ တပ်ဆင်နည်း၊ ပတ်ဝန်းကျင်အပူချိန်၊ grouping၊ voltage drop နှင့် fault withstand အပေါ် မူတည်သည်။

အမိုးတွင် ခံနိုင်ရည်၊ လေမတင်အား၊ corrosion၊ ရေမဝင်စေရေးနှင့် အမိုးအာမခံသက်ရောက်မှုကို စစ်ပါ။ လုံခြုံသောလျှောက်လမ်း၊ lifting access နှင့် maintenance clearance စီစဉ်ပါ။ မြေပြင်တပ်ဆင်မှုအတွက် drainage၊ access၊ security နှင့် foundation စစ်ဆေးမှု လိုအပ်သည်။

Commercial ဘက်ထရီအတွက် ဘက်ထရီနှင့် အင်ဗာတာ specification၊ BMS၊ cabinet အကွာအဝေး၊ အပူထိန်းချုပ်မှု၊ detection နှင့် emergency response ကို စစ်ပါ။ ထုတ်လုပ်သူနှင့် သက်ဆိုင်ရာ building / fire လိုအပ်ချက်အရ နေရာရွေးပြီး emergency isolation နှင့် service access ကို ရှင်းလင်းထားပါ။

Monitoring နှင့် Commissioning

Monitoring တွင် PV ထုတ်လုပ်မှု၊ facility demand၊ battery state of charge၊ grid import/export၊ မီးစက်လည်ပတ်ချိန်၊ alarm နှင့် communications status ကို ပြန်လည်စစ်နိုင်ရမည်။ သက်ဆိုင်ရာ facility နှင့် maintenance ဝန်ထမ်းများကို access ပေးပါ။

ဓာတ်အားမဖွင့်မီ လိုအပ်သော တပ်ဆင်စစ်ဆေးမှုများကို ပြီးစီးမှတ်တမ်းတင်ပါ။ PV string၊ protection setting၊ အင်ဗာတာ၊ ဘက်ထရီအားသွင်း / ထုတ်၊ monitoring data၊ grid failure၊ generator transfer နှင့် backup ဝန်ကို စမ်းပါ။ Approved / as-built drawing၊ datasheet၊ setting၊ test result၊ warranty၊ maintenance instruction နှင့် owner training တို့ကို လွှဲပြောင်းပါ။

လက်တွေ့ Project အစီအစဉ်

  1. ဘေလ်၊ အချိန်အလိုက်ဒေတာ၊ မီးစက် log နှင့် ပစ္စည်းဇယား စုဆောင်းပါ။
  2. Facility၊ အမိုး / မြေပြင်၊ switchboard နှင့် transformer ကို စစ်ပါ။
  3. Energy၊ backup နှင့် demand management ရည်ရွယ်ချက်ကို သဘောတူပါ။
  4. Load register နှင့် critical-load အစီအစဉ် ပြုစုပါ။
  5. PV၊ အင်ဗာတာ၊ ဘက်ထရီ၊ structure နှင့် protection ဒီဇိုင်း ပြီးစီးပါ။
  6. မဝယ်မီ utility၊ building နှင့် fire လိုအပ်ချက် အတည်ပြုပါ။
  7. အတိအကျ model datasheet၊ certification၊ compatibility နှင့် service support စစ်ပါ။
  8. တပ်ဆင်၊ စမ်းသပ်၊ မှတ်တမ်းတင်ပြီး facility team ကို သင်တန်းပေးပါ။
  9. ရလဒ်ကို စောင့်ကြည့်ပြီး site ဒေတာအရ လည်ပတ်ဦးစားပေးမှု ချိန်ညှိပါ။

စီမံကိန်းမှတ်ချက် — ဤသည် ကနဦးလမ်းညွှန်သာဖြစ်ပြီး ဆောက်လုပ်ရေး drawing မဟုတ်ပါ။ နောက်ဆုံးဒီဇိုင်းတွင် site တိုင်းတာချက်၊ အတည်ပြုပစ္စည်းဒေတာ၊ အရည်အချင်းပြည့် electrical / structural engineering နှင့် လက်ရှိ မြန်မာ utility၊ building နှင့် fire လိုအပ်ချက် အတည်ပြုမှု လိုအပ်သည်။

PV arrayအင်ဗာတာSite ဖြန့်ဖြူးမှုအဆောက်အအုံဝန်များ
Grid / မီးစက်ချိတ်ဆက်မှု · လိုအပ်ပါက ဘက်ထရီသိုလှောင်မှု
အယူအဆပြပုံသာဖြစ်သည်။ Backup အတွက် သင့်လျော်သော isolation နှင့် transfer ပစ္စည်းလိုအပ်သည်။ ပုံရှင်းလင်းရန် protection နှင့် earthing ကို မဖော်ပြထားပါ။

Large C&I solar

Large C&I solar installation illustration

Large C&I Solar Installation: Coordinate Power at Facility Scale

Large C&I PV systems commonly fall within the 500 kWp–1 MW+ planning range. Factories, industrial plants and large warehouses may fit this class, though the range is a planning guide rather than a fixed boundary.

At this scale, the project needs to coordinate the PV array with facility demand, the grid connection, generators, switchgear, protection and operating controls. A battery may be part of that plan, but its size should follow a defined purpose and measured loads.

Start with the facility’s operating profile

Industrial loads can change sharply between shifts, production lines, start-up periods and shutdowns. Collect utility bills, generator records and 15-minute meter data where available. That interval data helps describe the demand profile; large motor starting requirements need separate equipment data or measurement.

Facility typeCommon loadsWhat to measure
Factory or plantProduction lines, motors, compressors, chillers, pumps, ventilation and process loadsShift schedules, simultaneous demand, start-up sequences and production-critical circuits
Large warehouseHigh-bay lighting, conveyors, ventilation, loading equipment and cold storageDay/night operation, refrigeration duty and equipment charging schedules
Industrial campusCentral utilities, workshops, offices, water systems, communications and securitySite-wide demand plus major buildings or systems on separate meters

Build a load register that records each major item’s operating power, phase, hours of use, starting demand and outage priority. Distinguish normal production loads from loads that must remain available during an outage. For process equipment, include the safe shutdown or restart sequence.

Define the operating objective

A large C&I system may serve several goals:

These objectives can point to different PV, inverter, battery and control-system choices. A system designed to reduce daytime grid or generator use does not automatically provide backup to the entire facility.

Planning anchors for 500 kWp to 1 MWp

The expanded solar guide uses these comparison examples:

PV arrayExample module countExample inverter arrangementBattery planning
500 kWp800 × 625 W4 × 125 kW three-phase units; a 5 × 100 kW arrangement is another planning exampleSite-specific; a Myanmar factory illustration uses 500–1,000 kWh LiFePO₄ as a study range
1,000 kWp (1 MWp)1,600 × 625 W8 × 125 kW three-phase unitsSite-specific

The inverter arrangements are examples for comparison. Final selection depends on the exact equipment, approved operating topology, array layout, site connection and service plan. The battery range is also a planning example, not a fixed bill of materials.

Keep the units distinct: kWp describes the PV array’s DC peak rating, kW describes power at a moment, and kWh describes energy over time. Battery energy alone cannot determine how much of a factory can operate or for how long.

Size the battery for the critical-load plan

For backup, estimate critical-load energy across the required outage period:

Critical-load energy (kWh) = sum of each backed-up load’s kW × its operating hours

Then account for the battery’s usable operating window, conversion losses, reserve, end-of-life capacity and manufacturer limits. Check battery discharge power in kW separately against the simultaneous load and motor-start demand.

For example, a 500 kWp factory planning study may compare a 500–1,000 kWh LiFePO₄ battery range. The final design still needs a measured critical-load plan, compatible battery power-conversion equipment, approved BMS communications and the required transfer arrangement.

Choose an inverter and BESS architecture

At this scale, the design may use modular high-power string inverters or a central inverter or integrated skid. Compare them against the site’s string layout, MPPT needs, maintenance access, equipment availability and utility requirements.

PV inverter capacity and battery power-conversion capacity are separate design decisions. A BESS may use its own power conversion system (PCS), share conversion equipment where the selected product supports that arrangement, or use another manufacturer-approved topology. Specify how the system should respond to grid loss, generator operation, battery limits and planned maintenance.

The energy management system (EMS) should coordinate PV, battery, facility meters, generator signals and any load-shedding controls. Define the operating priorities, alarms, user access and response to communications loss before procurement.

Confirm the grid connection and protection

The project’s PV class does not set its connection voltage. Some facilities may connect through a 400 V low-voltage main switchboard where capacity and utility approval allow it. Other projects may need a step-up transformer to an approved medium-voltage network, such as 11 kV or 33 kV. There is no universal size cutoff; the utility study determines the accepted connection, transformer capacity and protection requirements.

The electrical design should review:

Coordinate DC and AC isolation, MCCBs or breakers, surge protection, cable sizing, labels and emergency shutdown as one system. Cable sizing depends on current, installation method, temperature, grouping, voltage drop and fault withstand—not PV kWp alone.

Engineer the site and battery area

Large arrays require a structural and access plan. Review roof capacity or ground foundations, wind loading, corrosion, drainage, waterproofing, lifting routes, cable routes and maintenance access. Large-format modules also require checks on dimensions, handling, clamp zones and inverter input-current limits.

For BESS installation, select cabinets or a pre-engineered container to suit the project and site. Some designs use outdoor liquid-cooled cabinets; others use containerized equipment. Crossing a particular power threshold does not by itself require a container. Specify thermal management, detection and suppression, emergency isolation, spacing, access and fire response according to the equipment design and applicable Myanmar requirements.

Commission for safe operation and maintainability

Before installation, approve the single-line diagram, structural design, string schedule, protection settings, equipment submittals and test plan. Coordinate construction with plant operations so tie-ins and shutdowns are planned.

Commissioning should verify the installed equipment against the approved design. Test and document PV polarity and insulation, earthing continuity, inverter and BESS settings, protection operation, grid or generator transfer, alarms, metering and the agreed critical-load response. Handover should include as-built drawings, settings, datasheets, warranties, test records, emergency procedures, training and spare-parts information.

A practical project sequence

  1. Collect bills, 15-minute meter profiles where available, generator logs and major equipment data.
  2. Survey the site, switchboards, transformers, roof or ground area and operating constraints.
  3. Prepare the load register and critical-load plan, including motor starting and restart requirements.
  4. Compare PV, inverter and BESS architectures against the operating objectives.
  5. Complete structural, electrical, protection, utility and fire-safety reviews.
  6. Procure against exact datasheets, compatibility evidence, warranties and commissioning requirements.
  7. Install, commission and document the integrated system.
  8. Monitor production, demand, battery state of charge, generator runtime, alarms and maintenance needs.

Planning note: This is a preliminary planning guide, not a construction drawing. Final design requires site-specific load and structural data, exact equipment documentation, qualified electrical and structural engineering, and confirmation of current Myanmar utility, building and fire requirements.

PV arrayInverterSite distributionIndustrial loads
Grid / generator connection · Optional battery storage
Concept diagram. Backup requires suitable isolation and transfer equipment; protection and earthing are omitted for clarity.

အကြီးစား C&I ဆိုလာတပ်ဆင်ခြင်း — Facility အဆင့် ဓာတ်အားပေါင်းစပ်စီမံမှု

အကြီးစား C&I PV သည် ပုံမှန် 500 kWp–1 MW+ စီမံကိန်းအတိုင်းအတာတွင် ပါဝင်သည်။ စက်ရုံ၊ စက်မှုလုပ်ငန်းနှင့် ဂိုဒေါင်ကြီးများ ပါဝင်နိုင်သော်လည်း ဤအတိုင်းအတာသည် ပုံသေကန့်သတ်ချက် မဟုတ်ပါ။

PV array ကို facility demand၊ grid၊ မီးစက်၊ switchgear၊ protection နှင့် control တို့နှင့် ပေါင်းစပ်ရမည်။ ဘက်ထရီပါနိုင်သော်လည်း အရွယ်အစားသည် သတ်မှတ်ရည်ရွယ်ချက်နှင့် တိုင်းတာဝန်အပေါ် အခြေခံရမည်။

Facility လည်ပတ်ပုံမှ စတင်ပါ

စက်မှုဝန်သည် shift၊ production line၊ စတင်လည်ပတ်ချိန်နှင့် ရပ်နားချိန်အလိုက် ရုတ်တရက်ပြောင်းနိုင်သည်။ ဘေလ်၊ မီးစက်မှတ်တမ်းနှင့် ရရှိပါက ၁၅ မိနစ်မီတာဒေတာ စုဆောင်းပါ။ Interval data က demand profile ကို ပြသော်လည်း မော်တာကြီးစတင်ဝန်အတွက် သီးခြားပစ္စည်းဒေတာ သို့မဟုတ် တိုင်းတာမှု လိုအပ်သည်။

Facilityပုံမှန်ဝန်တိုင်းတာရန်
စက်ရုံProduction line၊ မော်တာ၊ compressor၊ chiller၊ ပန့်၊ လေဝင်လေထွက်နှင့် processShift၊ တစ်ပြိုင်နက်ဝန်၊ start-up အစီအစဉ်နှင့် ထုတ်လုပ်ရေးအရေးကြီး circuit
ဂိုဒေါင်ကြီးအမြင့်တပ်မီး၊ conveyor၊ လေဝင်လေထွက်၊ loading ပစ္စည်းနှင့် အအေးခန်းနေ့ / ညလည်ပတ်မှု၊ refrigeration duty နှင့် အားသွင်းဇယား
စက်မှုအဆောက်အအုံစုCentral utility၊ workshop၊ ရုံး၊ ရေစနစ်၊ ဆက်သွယ်ရေးနှင့် လုံခြုံရေးSite တစ်ခုလုံးဝန်နှင့် သီးခြားမီတာပါ အဓိကအဆောက်အအုံ / စနစ်

ပစ္စည်းကြီးတစ်ခုစီ၏ operating power၊ phase၊ နာရီ၊ စတင်ဝန်နှင့် outage priority ကို load register တွင် မှတ်တမ်းတင်ပါ။ ပုံမှန်ထုတ်လုပ်ရေးဝန်နှင့် မီးပျက်ချိန် မဖြစ်မနေလိုသောဝန်ကို ခွဲပါ။ Process ပစ္စည်းအတွက် လုံခြုံသော shutdown / restart အစီအစဉ် ထည့်ပါ။

လည်ပတ်ရည်ရွယ်ချက် သတ်မှတ်ပါ

ရည်ရွယ်ချက်မတူပါက PV၊ အင်ဗာတာ၊ ဘက်ထရီနှင့် control ရွေးချယ်မှု မတူနိုင်သည်။ နေ့ခင်း grid / မီးစက်သုံးမှု လျှော့ရန် ဒီဇိုင်းသည် facility တစ်ခုလုံးကို အလိုအလျောက် backup ပေးမည် မဟုတ်ပါ။

500 kWp မှ 1 MWp စီမံကိန်းဥပမာများ

PV arrayModule ဥပမာအင်ဗာတာ ဥပမာဘက်ထရီ စီမံကိန်း
500 kWp800 × 625 W4 × 125 kW သုံးဖေ့စ်၊ 5 × 100 kW လည်း ဥပမာတစ်မျိုးSite အလိုက်။ မြန်မာစက်ရုံဥပမာတွင် 500–1,000 kWh LiFePO₄ ကို လေ့လာရန်သုံးသည်။
1,000 kWp (1 MWp)1,600 × 625 W8 × 125 kW သုံးဖေ့စ်Site အလိုက်

အင်ဗာတာဖွဲ့စည်းပုံများသည် နှိုင်းယှဉ်ရန်သာ ဖြစ်သည်။ နောက်ဆုံးရွေးချယ်မှုသည် အတိအကျပစ္စည်း၊ ခွင့်ပြု topology၊ array layout၊ site connection နှင့် service plan အပေါ် မူတည်သည်။ ဘက်ထရီအတိုင်းအတာသည်လည်း ပုံသေ BOM မဟုတ်ပါ။

kWp သည် PV DC peak rating၊ kW သည် တစ်ချိန်တည်း power၊ kWh သည် အချိန်အလိုက် energy ဖြစ်သည်။ ဘက်ထရီ energy တစ်ခုတည်းဖြင့် စက်ရုံ၏ မည်မျှသောဝန်ကို မည်မျှကြာလည်ပတ်နိုင်မည် မဆုံးဖြတ်နိုင်ပါ။

Critical-load အစီအစဉ်အတွက် ဘက်ထရီတွက်ပါ

Backup အတွက် လိုအပ်သော မီးပျက်ကာလတစ်လျှောက် ဝန် energy တွက်ပါ။

Critical-load energy (kWh) = backup ဝန်တစ်ခုစီ၏ kW × လည်ပတ်နာရီ ကို စုစုပေါင်းပေါင်းခြင်း

ဘက်ထရီ usable window၊ conversion loss၊ reserve၊ သက်တမ်းအဆုံးပမာဏနှင့် ထုတ်လုပ်သူကန့်သတ်ချက် ထည့်ပါ။ Discharge power kW ကို တစ်ပြိုင်နက်ဝန်နှင့် မော်တာစတင်ဝန်အတွက် သီးခြားစစ်ပါ။

500 kWp စက်ရုံလေ့လာမှုတွင် 500–1,000 kWh LiFePO₄ ကို နှိုင်းယှဉ်နိုင်သော်လည်း နောက်ဆုံးဒီဇိုင်းတွင် တိုင်းတာထားသော critical-load plan၊ ကိုက်ညီ power conversion ပစ္စည်း၊ ခွင့်ပြု BMS ဆက်သွယ်မှုနှင့် transfer စနစ် လိုအပ်သည်။

အင်ဗာတာနှင့် BESS ဖွဲ့စည်းပုံ ရွေးပါ

High-power string inverter များ သို့မဟုတ် central inverter / integrated skid သုံးနိုင်သည်။ String layout၊ MPPT လိုအပ်ချက်၊ maintenance access၊ ပစ္စည်းရရှိမှုနှင့် utility လိုအပ်ချက်တို့အရ နှိုင်းယှဉ်ပါ။

PV inverter capacity နှင့် battery power-conversion capacity သည် သီးခြားဆုံးဖြတ်ချက်များ ဖြစ်သည်။ BESS သည် ကိုယ်ပိုင် PCS၊ ပစ္စည်းကခွင့်ပြုပါက shared conversion သို့မဟုတ် အခြား manufacturer-approved topology သုံးနိုင်သည်။ Grid loss၊ မီးစက်လည်ပတ်မှု၊ ဘက်ထရီကန့်သတ်ချက်နှင့် planned maintenance အတွက် တုံ့ပြန်ပုံ သတ်မှတ်ပါ။

EMS သည် PV၊ ဘက်ထရီ၊ facility meter၊ မီးစက် signal နှင့် load shedding တို့ကို ညှိနှိုင်းရမည်။ မဝယ်မီ operating priority၊ alarm၊ user access နှင့် ဆက်သွယ်မှုပြတ်ချိန် တုံ့ပြန်ပုံ သတ်မှတ်ပါ။

Grid ချိတ်ဆက်မှုနှင့် Protection အတည်ပြုပါ

PV အမျိုးအစားက connection voltage ကို မသတ်မှတ်ပါ။ Capacity နှင့် utility ခွင့်ပြုပါက facility အချို့သည် 400 V LV main switchboard မှ ချိတ်နိုင်သည်။ အခြား project များသည် 11 kV / 33 kV ကဲ့သို့ ခွင့်ပြု MV ကွန်ရက်သို့ step-up transformer လိုနိုင်သည်။ အားလုံးအတွက် ပုံသေ size cutoff မရှိပါ။ Utility study က လက်ခံ connection၊ transformer capacity နှင့် protection ကို ဆုံးဖြတ်သည်။

DC/AC isolation၊ MCCB / breaker၊ surge protection၊ cable sizing၊ label နှင့် emergency shutdown ကို စနစ်တစ်ခုအဖြစ် ညှိပါ။ ကြိုးအရွယ်သည် current၊ တပ်ဆင်နည်း၊ temperature၊ grouping၊ voltage drop နှင့် fault withstand အပေါ် မူတည်ပြီး PV kWp တစ်ခုတည်းဖြင့် မရွေးရပါ။

Site နှင့် ဘက်ထရီနေရာ ဒီဇိုင်း

Array ကြီးအတွက် structure နှင့် access plan လိုသည်။ Roof capacity / ground foundation၊ wind loading၊ corrosion၊ drainage၊ waterproofing၊ lifting route၊ cable route နှင့် maintenance access စစ်ပါ။ Module ကြီးတွင် dimension၊ handling၊ clamp zone နှင့် inverter input-current limit ကို စစ်ပါ။

BESS အတွက် project နှင့် site ကိုက်ညီ cabinet သို့မဟုတ် pre-engineered container ရွေးပါ။ ပြင်ပ liquid-cooled cabinet သို့မဟုတ် container သုံးနိုင်သည်။ Power threshold ကျော်ရုံဖြင့် container မဖြစ်မနေ မလိုပါ။ Equipment design နှင့် သက်ဆိုင်ရာ မြန်မာလိုအပ်ချက်အရ thermal management၊ detection / suppression၊ emergency isolation၊ spacing၊ access နှင့် fire response သတ်မှတ်ပါ။

လုံခြုံမှုနှင့် ထိန်းသိမ်းနိုင်မှုအတွက် Commissioning

မတပ်ဆင်မီ single-line diagram၊ structural design၊ string schedule၊ protection setting၊ equipment submittal နှင့် test plan အတည်ပြုပါ။ Tie-in နှင့် shutdown များကို စက်ရုံလည်ပတ်မှုနှင့် ညှိနှိုင်းစီစဉ်ပါ။

Commissioning တွင် installed equipment ကို approved design နှင့် စစ်ပါ။ PV polarity / insulation၊ earthing continuity၊ inverter / BESS setting၊ protection၊ grid / generator transfer၊ alarm၊ meter နှင့် သဘောတူ critical-load တုံ့ပြန်မှုကို စမ်းသပ်မှတ်တမ်းတင်ပါ။ As-built drawing၊ setting၊ datasheet၊ warranty၊ test record၊ emergency procedure၊ training နှင့် spare-parts အချက်အလက် လွှဲပြောင်းပါ။

လက်တွေ့ Project အစီအစဉ်

  1. ဘေလ်၊ ရရှိပါက ၁၅ မိနစ်မီတာဒေတာ၊ မီးစက် log နှင့် အဓိကပစ္စည်းဒေတာ စုဆောင်းပါ။
  2. Site၊ switchboard၊ transformer၊ အမိုး / မြေပြင်နှင့် လည်ပတ်ကန့်သတ်ချက် စစ်ပါ။
  3. မော်တာစတင် / restart လိုအပ်ချက်ပါ load register နှင့် critical-load plan ပြုစုပါ။
  4. ရည်ရွယ်ချက်အရ PV၊ အင်ဗာတာနှင့် BESS architecture နှိုင်းယှဉ်ပါ။
  5. Structural၊ electrical၊ protection၊ utility နှင့် fire-safety review ပြီးစီးပါ။
  6. အတိအကျ datasheet၊ compatibility evidence၊ warranty နှင့် commissioning လိုအပ်ချက်အရ ဝယ်ယူပါ။
  7. ပေါင်းစပ်စနစ် တပ်ဆင်၊ commission နှင့် မှတ်တမ်းတင်ပါ။
  8. Production၊ demand၊ battery state of charge၊ မီးစက်နာရီ၊ alarm နှင့် maintenance လိုအပ်ချက်ကို စောင့်ကြည့်ပါ။

စီမံကိန်းမှတ်ချက် — ဤသည် ကနဦးလမ်းညွှန်သာဖြစ်ပြီး ဆောက်လုပ်ရေး drawing မဟုတ်ပါ။ နောက်ဆုံးဒီဇိုင်းတွင် site-specific ဝန်နှင့် structural data၊ အတိအကျပစ္စည်းစာရွက်စာတမ်း၊ အရည်အချင်းပြည့် electrical / structural engineering နှင့် လက်ရှိ မြန်မာ utility၊ building နှင့် fire လိုအပ်ချက် အတည်ပြုမှု လိုအပ်သည်။

PV arrayအင်ဗာတာSite ဖြန့်ဖြူးမှုစက်မှုသုံးဝန်များ
Grid / မီးစက်ချိတ်ဆက်မှု · လိုအပ်ပါက ဘက်ထရီသိုလှောင်မှု
အယူအဆပြပုံသာဖြစ်သည်။ Backup အတွက် သင့်လျော်သော isolation နှင့် transfer ပစ္စည်းလိုအပ်သည်။ ပုံရှင်းလင်းရန် protection နှင့် earthing ကို မဖော်ပြထားပါ။
